NewSkyH7-Air
About the NewSkyH7-Air PCB

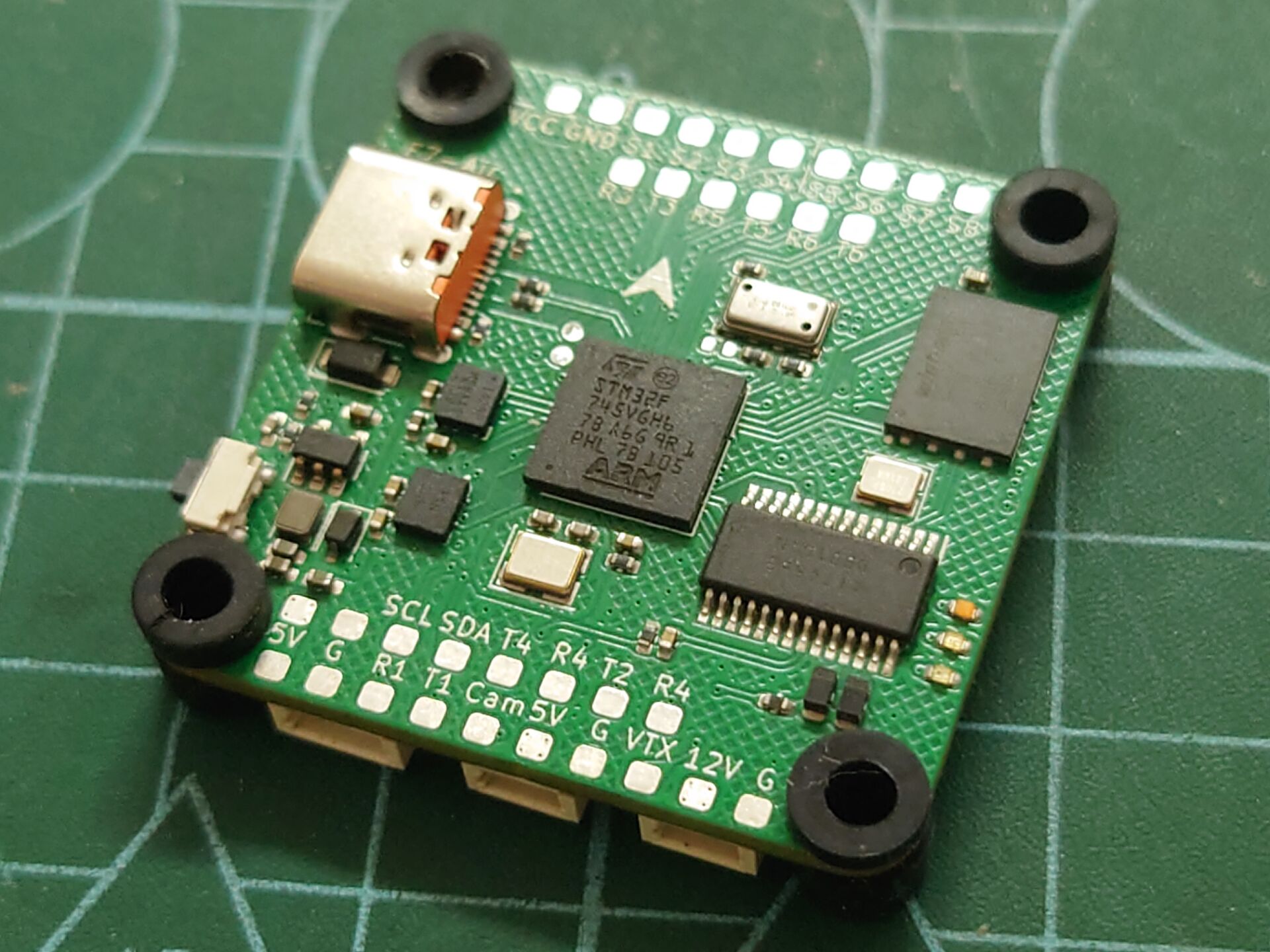

NewSkyH7-Air is an open source STM32 PCB design by kuku-199, published on GitHub under the Apache-2.0 license. It is a 6-layer board measuring 36 × 36 mm, with 157 components from 88 distinct parts.
Its main chip is the TLV62569DBV, from the STM32 family. Other key parts include the MP9943GQ-Z, ICM-42688-P, DPS310XTSA1, STM32F745VGH6 and USB_C_16P. By type, the board carries 48 capacitors, 38 connectors, 38 resistors, 11 ICs, 8 diodes and 8 inductors.
From the project
Supports multiple firmware options💿 NewSky Currently possessingPX4 Betaflight Inav Ardupolit firmware
Supports multiple firmware options💿 NewSky Currently possessingPX4 Betaflight Inav Ardupolit firmware
Having different flight control models⚙️ NewSky use STM32 series as the main controller
- STM32F745VG(Cortex-M7) - Have three BEC (Max input 36V) - 12V 3A - 5V 3A - 3V3 2A - Have two IMU - BMI270 - IMC4288P - On-board barometer(MS5611) - On-board FLASH(W25Q256/W25N01G) - On-board OSD(AT7456) > In addition to the provided pad, which can be soldered, the board can use JST-SH
Main components on the NewSkyH7-Air
NewSkyH7-Air bill of materials (BOM)
157 components, 88 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MP9943GQ-Z BMI088 | PQFN50P450X300X100-16N | IC2 |
| 1 | ICM-42688-P W25Q256JVEIQ | SON127P800X600X80-9N-D | IC3 |
| 2 | MP9943GQ-Z | MP9943GQZ | IC4, IC5 |
| 1 | DPS310XTSA1 | DPS310XTSA1 | IC6 |
| 1 | ICM-42688-P | IIM42352 | IC7 |
| 1 | TLV62569DBV STM32H743VIH6 | TFBGA-100_8x8mm_Layout10x10_P0.8mm | U1 |
| 1 | STM32F745VGH6 TLV62569DBV | SOT-23-5 | U2 |
| 1 | USB_C_16P | Type-C 16P-SMD | U4 |
| 1 | AT7456E | SOP65P640X120-29N | U5 |
| 1 | BMI270 IST8310 | LGA-16_3x3mm_P0.5mm | U6 |
| 1 | 25M | Crystal_SMD_2016-4Pin_2.0x1.6mm | Y1 |
| 1 | 27M | Crystal_SMD_2016-4Pin_2.0x1.6mm | Y2 |
| 1 | ~ | NewSkyH7-Outline | J1 |
| 1 | Input | SH1.0mm_8P | J2 |
| 3 | Conn_01x01_Socket | Test | J3, J4, J35 |
| 28 | CONN_01X01_SOCKET Conn_01x01_Socket | Test | J5, J6, J7, J8, J10, J11, J12, J13 +20 |
| 1 | CONN_01X01_SOCKET Conn_01x06_Socket | JST_SM06B-SRSS-TB(LF)(SN) | J9 |
| 1 | CONN_01X01_SOCKET Input | SH1.0mm_8P | J28 |
| 1 | CONN_01X01_SOCKET VTX | JST_SM03B-SRSS-TB(LF)(SN) | J33 |
| 1 | CONN_01X01_SOCKET Camera | JST_SM03B-SRSS-TB(LF)(SN) | J34 |
Show 68 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CONN_01X10_SOCKET Conn_01x01_Socket | Test | J36 |
| 1 | BOOT0 | 2x4_side | SW1 |
| 2 | TestPoint | Test | TP1, TP2 |
| 1 | WS2812C-2020 | WS2812C2020 | LED1 |
| 3 | LESD3Z5.0CMT1G | D_SOD-323 | D1, D2, D3 |
| 1 | Red | LED_0402_1005Metric | D4 |
| 1 | K24 | D_SOD-123F | D7 |
| 1 | Blue | LED_0402_1005Metric | D9 |
| 2 | AZ5725-01F-P | D_0402_1005Metric | D10, D11 |
| 5 | 1K 100M | L_0402_1005Metric | FB1, FB2, FB3, FB4, FB5 |
| 1 | 2.2UH 2.2uH | L_Murata_DFE201610P | L1 |
| 2 | L | L_Sunlord_MWSA0402S | L2, L3 |
| 2 | 10UF 15pF | C_0402_1005Metric | C1, C2 |
| 2 | 10UF 100nF | C_0402_1005Metric | C3, C16 |
| 2 | 10UF 2.2uF | C_0402_1005Metric | C4, C13 |
| 1 | 100NF 2.2uF | C_0402_1005Metric | C5 |
| 1 | 100NF 1uF | C_0402_1005Metric | C6 |
| 1 | 4.7UF 1uF | C_0402_1005Metric | C7 |
| 9 | 100NF 100nF | C_0402_1005Metric | C8, C10, C25, C37, C40, C41, C42, C44 +1 |
| 1 | 100NF 4.7uF | C_0402_1005Metric | C9 |
| 1 | 100NF 10nF | C_0402_1005Metric | C11 |
| 1 | 6.8PF 100nF | C_0402_1005Metric | C12 |
| 1 | 22UF 4.7uF | C_0402_1005Metric | C14 |
| 2 | 22UF 100nF | C_0402_1005Metric | C15, C17 |
| 1 | 22UF 10uF | C_0603_1608Metric | C18 |
| 1 | 10UF 10uF | C_0603_1608Metric | C19 |
| 1 | 15PF 10uF | C_0603_1608Metric | C20 |
| 1 | 15PF 100nF | C_0402_1005Metric | C21 |
| 1 | 100NF 10uF | C_0603_1608Metric | C22 |
| 1 | 4.7UF 100nF | C_0402_1005Metric | C23 |
| 1 | 100NF 4.7uF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C24 |
| 2 | 2.2UF 100nF | C_0402_1005Metric | C26, C45 |
| 1 | 100NF 100nF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C27 |
| 1 | 2.2UF 100nF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C28 |
| 3 | 100NF 10uF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C30, C33, C36 |
| 2 | 100NF 22uF | C_0805_2012Metric | C31, C32 |
| 2 | 47UF 22uF | C_0805_2012Metric | C34, C35 |
| 1 | 100NF 47uF | C_0603_1608Metric | C38 |
| 1 | 47uF | C_0603_1608Metric | C39 |
| 1 | 10NF 100nF | C_0402_1005Metric | C43 |
| 3 | 100nF | C_0402_1005Metric | C47, C48, C49 |
| 4 | 100K 10K | R_0402_1005Metric | R1, R2, R3, R33 |
| 2 | 100K | R_0402_1005Metric | R4, R6 |
| 1 | 442K 100K | R_0402_1005Metric | R5 |
| 1 | 51K 100K | R_0402_1005Metric | R7 |
| 2 | 22R 100K | R_0402_1005Metric | R8, R10 |
| 1 | 51K 442K | R_0402_1005Metric | R9 |
| 1 | 51K | R_0402_1005Metric | R11 |
| 1 | 7.68K 22R | R_0402_1005Metric | R12 |
| 1 | 41.2K 51K | R_0402_1005Metric | R13 |
| 1 | 41.2K 22R | R_0402_1005Metric | R14 |
| 1 | 10K 3K | R_0402_1005Metric | R15 |
| 1 | 7.68K | R_0402_1005Metric | R16 |
| 1 | 3.3K 41.2K | R_0402_1005Metric | R17 |
| 1 | 10K 41.2K | R_0402_1005Metric | R18 |
| 1 | 10K | R_0402_1005Metric | R19 |
| 2 | 1k | R_0402_1005Metric | R20, R32 |
| 1 | 3.3K | R_0402_1005Metric | R21 |
| 1 | 5.1K 22R | R_0402_1005Metric | R22 |
| 2 | 22R 5.1K | R_0402_1005Metric | R24, R25 |
| 1 | 22R | R_0402_1005Metric | R26 |
| 1 | 75R 22R | R_0402_1005Metric | R27 |
| 1 | 75R 1K | R_0402_1005Metric | R28 |
| 2 | 10K 75R | R_0402_1005Metric | R29, R30 |
| 2 | 10K 4.7K | R_0402_1005Metric | R34, R35 |
| 2 | 4.7K | R_0402_1005Metric | R36, R37 |
| 1 | 10K | R_0402_1005Metric | R38 |
| 2 | 22R | R_Array_Concave_4x0402 | RN1, RN2 |
NewSkyH7-Air design files
The KiCad project lives in the kuku-199/NewSky repository on GitHub; these links point at the commit this page was built from.
NewSkyH7-Air: common questions
What microcontroller does the NewSkyH7-Air use?
The NewSkyH7-Air is built around the TLV62569DBV, from the STM32 family.
How big is the NewSkyH7-Air PCB?
The NewSkyH7-Air measures 36 × 36 mm, has 6 copper layers and is 1.6 mm thick.
How many components are on the NewSkyH7-Air?
157 components, from 88 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the NewSkyH7-Air design files?
From the kuku-199/NewSky repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the NewSkyH7-Air design in my own project?
Yes, under the terms of its Apache-2.0 license, which kuku-199 chose for the repository.
Can I test firmware for the NewSkyH7-Air without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
