Platform16 PCB layout, top view — open source RP2040/RP2350 board by lerouxb
Simulate this board

About the Platform16 PCB

Platform16 is an open source RP2040/RP2350 PCB design by lerouxb, published on GitHub. It is a 2-layer board measuring 112 × 86.3 mm, with 108 components from 33 distinct parts.

Its main chip is the RP2350_60QFN, from the RP2040/RP2350 family. Other key parts include the PAM8908JER, NCP1117-3.3_SOT223, W25Q128JVS, CD74HC4067SM and PCM5100A. By type, the board carries 39 capacitors, 33 resistors, 6 ICs, 5 connectors, 2 transistors and 2 switches.

It belongs with the audio designs in this gallery.

From the project

KiCad Schematic & PCB for the platform16 synth

This is the KiCad project for platform 16 — a compact digital synthesizer built around the Raspberry Pi RP2350 microcontroller. The board hosts 16 potentiometers for real-time parameter control, a high-quality audio output chain, and USB-C for power and an SWD port for development.

Platform 16 is a self-contained generative synthesizer platform. The hardware is designed to pair with swappable firmware engines — each one turns the same 16 knobs into a different instrument. A companion front panel editor (web app) generates printable overlays so you can label the knobs for whichever firmware…

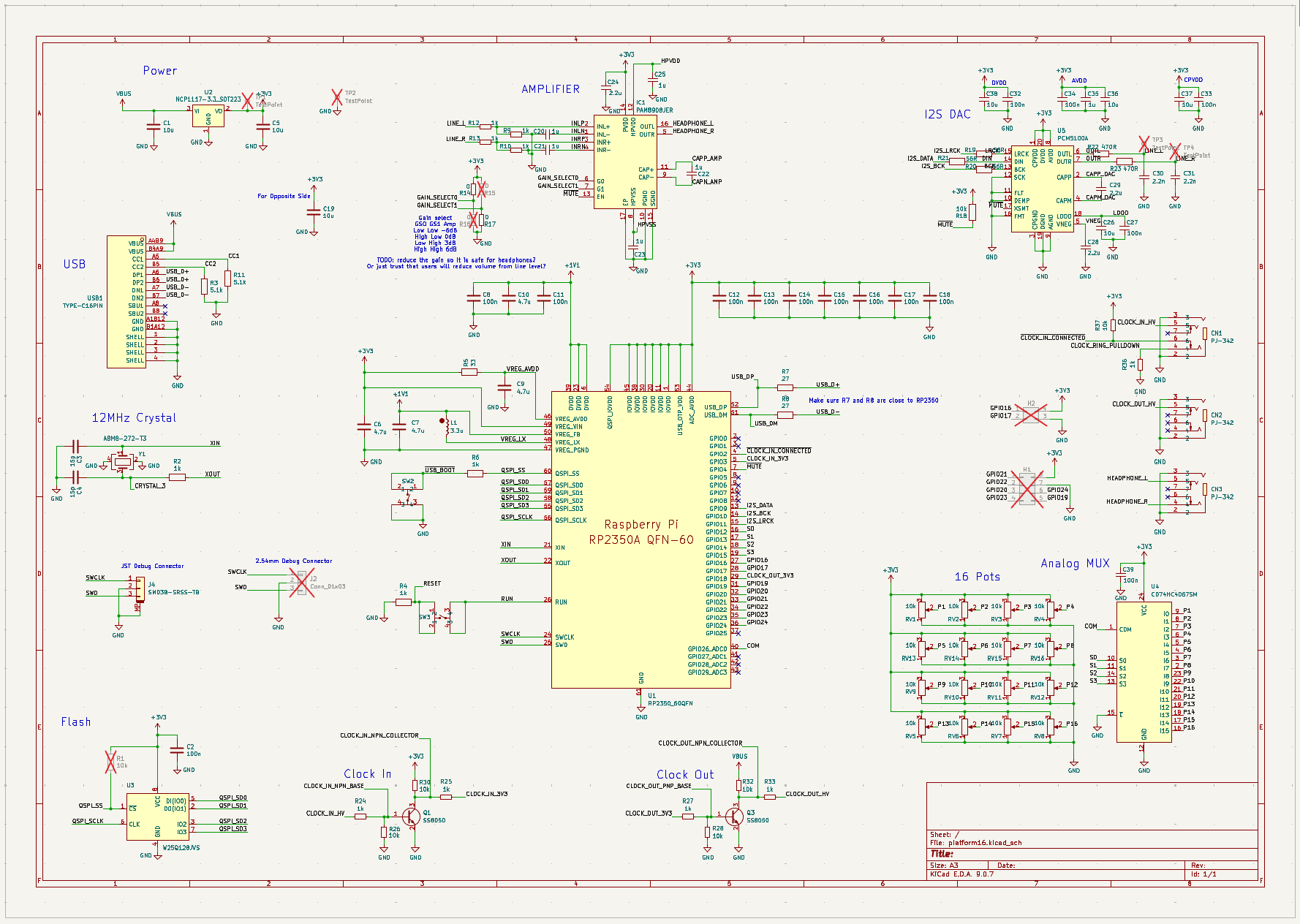

Platform16, from the project README
From the project README

Main components on the Platform16

PAM8908JERRP2350_60QFNNCP1117-3.3_SOT223W25Q128JVSCD74HC4067SMPCM5100A

Platform16 bill of materials (BOM)

108 components, 33 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
PAM8908JER
IC1
1
RP2350_60QFN
U1
1
NCP1117-3.3_SOT223
U2
1
W25Q128JVS
U3
1
CD74HC4067SM
U4
1
PCM5100A
U5
2
SS8050
Q1, Q3
1
ABM8-272-T3
Y1
3
PJ-342
CN1, CN2, CN3
1
Conn_01x03
J2
1
SM03B-SRSS-TB
J4
1
Conn_02x04_Counter_Clockwise
H1
1
Conn_02x02_Counter_Clockwise
H2
16
10K
10k
RV1, RV2, RV3, RV4, RV5, RV6, RV7, RV8 +8
2
TS-1095PS-A165B2-C3D2
SW2, SW3
1
TYPE-C16PIN
USB1
1
3.3U
3.3u
L1
7
10U
10u
C1, C5, C19, C26, C36, C37, C38
15
100N
100n
C2, C8, C11, C12, C13, C14, C15, C16 +7
2
15P
15p
C3, C4
Show 13 more
QtyPartRefs
4
4.7U
4.7u
C6, C7, C9, C10
6
1u
C20, C21, C22, C23, C25, C35
3
2.2U
2.2u
C24, C28, C29
2
2.2N
2.2n
C30, C31
1
10k
R1
12
1k
R2, R4, R6, R9, R10, R12, R13, R24 +4
2
5.1K
5.1k
R3, R11
1
33
R5
2
27
R7, R8
4
0
R14, R15, R16, R17
6
10K
10k
R18, R26, R28, R30, R32, R37
3
56R
R19, R20, R21
2
470R
R22, R23

Platform16 design files

The KiCad project lives in the lerouxb/platform16-pcb repository on GitHub; these links point at the commit this page was built from.

Platform16: common questions

What microcontroller does the Platform16 use?

The Platform16 is built around the RP2350_60QFN, from the RP2040/RP2350 family.

How big is the Platform16 PCB?

The Platform16 measures 112 × 86.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Platform16?

108 components, from 33 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Platform16 design files?

From the lerouxb/platform16-pcb repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Platform16 design in my own project?

The repository has no license, so all rights stay with lerouxb. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Platform16 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
