Shihen
About the Shihen PCB
Shihen is an open source ESP8266 PCB design by likeablob, published on GitHub under the MIT license. It is a 2-layer board measuring 89 × 36 mm, with 50 components from 29 distinct parts.
Its main chip is the ESP-12E, from the ESP8266 family. Other key parts include the TPL5110, ws_epaper_24pin, xc6206p332mr(SOT-23), PCF8563T and uSD_ebay_smd. By type, the board carries 15 resistors, 14 capacitors, 6 ICs, 5 diodes, 2 transistors and 2 connectors.
It belongs with the displays & leds designs in this gallery.

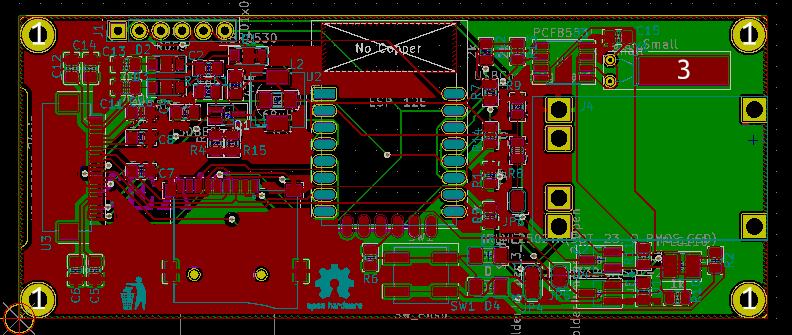

From the project
A device which colors your everyday (a bit).
Main components on the Shihen
Shihen bill of materials (BOM)
50 components, 29 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TPL5110 | SOT-23-6_Handsoldering | U1 |
| 1 | ESP-12E | ESP-12E | U2 |
| 1 | ws_epaper_24pin | Hirose_FH12-24S-0.5SH_1x24-1MP_P0.50mm_Horizontal_reverse | U3 |
| 1 | xc6206p332mr(SOT-23) | SOT-23_Handsoldering | U4 |
| 1 | PCF8563T | SOIC-8_3.9x4.9mm_P1.27mm | U5 |
| 1 | uSD_ebay_smd | Conn_uSDcard | U6 |
| 1 | Si1308EDL_NMOS_GSD | SOT-323_SC-70_Handsoldering | Q1 |
| 1 | IRLML2502TR(SOT-23, Q_PMOS_GSD) | SOT-23_Handsoldering | Q2 |
| 1 | Crystal_Small | Crystal_AT310_D3.0mm_L10.0mm_Horizontal_1EP_style1 | Y1 |
| 1 | Conn_01x06 | PinHeader_1x06_P2.54mm_Vertical | J1 |
| 1 | USBChargingBoard | USB_ChargingBoard | J4 |
| 2 | LOGO | gomi_5.7x5.7 | G1, G3 |
| 1 | SW_Push | SW_SPST_B3SL-1002P | SW1 |
| 3 | MBR0530 | D_SOD-123 | D1, D2, D3 |
| 2 | D | D_1206_3216Metric_Pad1.42x1.75mm_HandSolder | D4, D5 |
| 1 | 68uH | L_6.3x6.3_H3 | L1 |
| 1 | 68uH | L_1206_3216Metric_Pad1.42x1.75mm_HandSolder | L2 |
| 1 | 475 | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C1 |
| 2 | 104 | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C2, C7 |
| 1 | 1uF | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C4 |
Show 9 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 9 | 105 | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C5, C6, C8, C9, C10, C11, C12, C13 +1 |
| 1 | C_Small | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C15 |
| 6 | 10k | R_0805_2012Metric | R1, R3, R5, R7, R9, R14 |
| 1 | R | R_0805_2012Metric | R2 |
| 2 | 3R | R_0805_2012Metric | R4, R15 |
| 1 | 0 | R_0805_2012Metric | R6 |
| 1 | 33k | R_0805_2012Metric | R8 |
| 2 | 1k | R_0805_2012Metric | R10, R11 |
| 2 | 2k | R_0805_2012Metric | R12, R13 |
Shihen design files
The KiCad project lives in the likeablob/shihen repository on GitHub; these links point at the commit this page was built from.
- Layoutkicad/shihen.kicad_pcb
Shihen: common questions
What microcontroller does the Shihen use?
The Shihen is built around the ESP-12E, from the ESP8266 family.
How big is the Shihen PCB?
The Shihen measures 89 × 36 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Shihen?
50 components, from 29 distinct parts. The full bill of materials is listed on this page.
Where can I download the Shihen design files?
From the likeablob/shihen repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Shihen design in my own project?
Yes, under the terms of its MIT license, which likeablob chose for the repository.
Can I test firmware for the Shihen without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
