Unni smartification c6-10.99-constraints PCB layout, top view — open source ESP32 board by lk-ek

About the Unni smartification c6-10.99-constraints PCB

Unni smartification c6-10.99-constraints is an open source ESP32 PCB design by lk-ek, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 19 × 18 mm, with 66 components from 36 distinct parts.

Its main chip is the ESP32-C6-MINI-1-N4, from the ESP32 family. Other key parts include the MCP73831, TPS63031 and TPS613222A. By type, the board carries 27 resistors, 19 capacitors, 7 connectors, 5 transistors, 4 ICs and 4 diodes.

It belongs with the sensors, iot & wireless and power & battery designs in this gallery.

From the project

An esp32-c3 based passive data sniffer for Unni CO2 sensor devices

Target: KiCad 10.99 nightly or newer. The current manufacturing master uses a 4-layer stackup and native KiCad 10.99 geometric constraints.

This repository contains two physical PCBs in one KiCad PCB file so cross-board connectivity remains visible while routing. Placement and routing are still work in progress; the schematic and power architecture are substantially defined and covered by reproducible connectivity/SPICE checks.

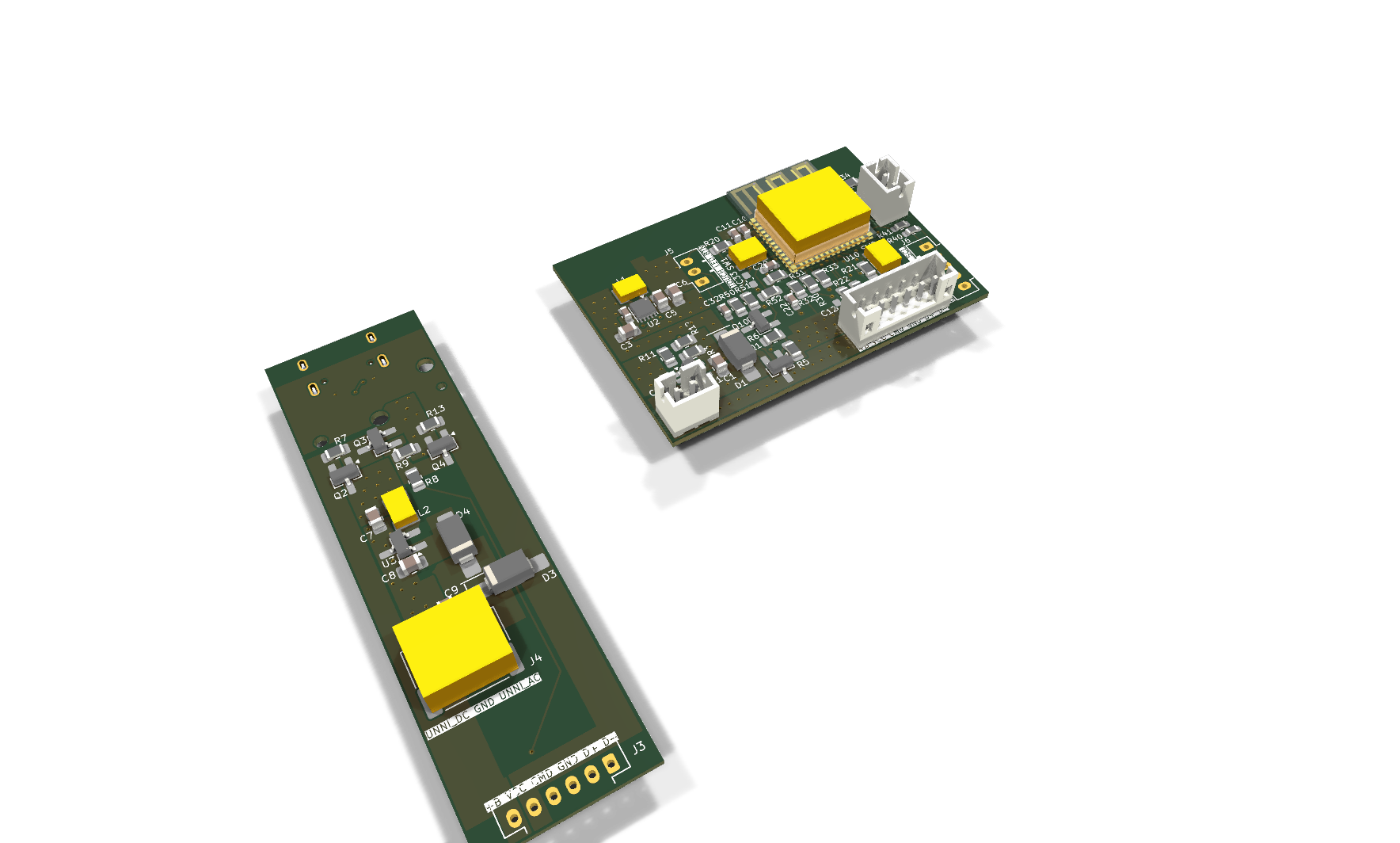

Unni smartification c6-10.99-constraints, from the project README
From the project README

Main components on the Unni smartification c6-10.99-constraints

MCP73831TPS63031TPS613222AESP32-C6-MINI-1-N4

Unni smartification c6-10.99-constraints bill of materials (BOM)

66 components, 36 distinct parts.

QtyPartRefs
1
MCP73831
U1
1
TPS63031
U2
1
TPS613222A
U3
1
ESP32-C6-MINI-1-N4
U10
2
AO3401A
Q1, Q2
3
AO3400A
Q3, Q4, Q10
1
UJ20-C-H-G-SMT-1-P16-TR
J1
1
B2B-PH-K-S
J2
1
B6B-PH-K-S
J3
1
S3B-PH-SM4-TB
J4
1
CO2 tap: SDA/SCL/GND
J20
1
RT/RH tap: RT/RH/GND
J21
1
TOUCH / LED+ / LED- / GND
J22
3
SS14
D1, D3, D4
1
SS14 DNP
D2
2
4.7uF
C1, C2
4
10uF
C3, C5, C6, C7
4
100nF
C4, C11, C20, C21
1
22uF
C8
1
1uF
C9
Show 16 more
QtyPartRefs
1
10uF
C10
2
22pF DNP
C12, C13
1
47pF DNP
C30
1
100pF DNP
C31
1
220pF
C32
1
10nF DNP
C33
3
5.1k
R1, R2, R3
2
100k
R5, R52
2
1M
R6, R9
3
1M
R7, R30, R31
8
10k
R8, R20, R21, R34, R40, R41, R42, R43
1
150k
R11
4
220k
R12, R32, R33, R51
1
47k
R13
2
22R
R22, R23
1
330k
R50

Unni smartification c6-10.99-constraints design files

The KiCad project lives in the lk-ek/esphome-unni-co2-sniffer repository on GitHub; these links point at the commit this page was built from.

Unni smartification c6-10.99-constraints: common questions

What microcontroller does the Unni smartification c6-10.99-constraints use?

The Unni smartification c6-10.99-constraints is built around the ESP32-C6-MINI-1-N4, from the ESP32 family.

How big is the Unni smartification c6-10.99-constraints PCB?

The Unni smartification c6-10.99-constraints measures 19 × 18 mm, has 2 copper layers and is 1 mm thick.

How many components are on the Unni smartification c6-10.99-constraints?

66 components, from 36 distinct parts. The full bill of materials is listed on this page.

Where can I download the Unni smartification c6-10.99-constraints design files?

From the lk-ek/esphome-unni-co2-sniffer repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Unni smartification c6-10.99-constraints design in my own project?

Yes, under the terms of its GPL-3.0 license, which lk-ek chose for the repository.

Can I test firmware for the Unni smartification c6-10.99-constraints without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
