Openinverter hw mainboard mini

llange·openinverter-hw-mainboard-mini

Openinverter hw mainboard mini PCB layout, top view — open source STM32 board by llange
Simulate this board

About the Openinverter hw mainboard mini PCB

Openinverter hw mainboard mini is an open source STM32 PCB design by llange, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 56.8 × 67.3 mm, with 96 components from 32 distinct parts.

Its main chip is the STM32F103RBT6, from the STM32 family. Other key parts include the XC6206P332MR, LM2901, NC7SZ10P6X, TDA2822D and SN65HVD230. By type, the board carries 46 capacitors, 35 resistors, 7 ICs, 3 inductors, 2 LEDs and 2 diodes.

From the project

KiCad schematics and board for J. Huebner and openinverter.org inverter - main board mini

Shield: [![CC BY-SA 4.0][cc-by-sa-shield]][cc-by-sa]

This work is licensed under a [Creative Commons Attribution-ShareAlike 4.0 International License][cc-by-sa].

[cc-by-sa]: http://creativecommons.org/licenses/by-sa/4.0/ [cc-by-sa-image]: https://licensebuttons.net/l/by-sa/4.0/88x31.png [cc-by-sa-shield]: https://img.shields.io/badge/License-CC%20BY--SA%204.0-lightgrey.svg

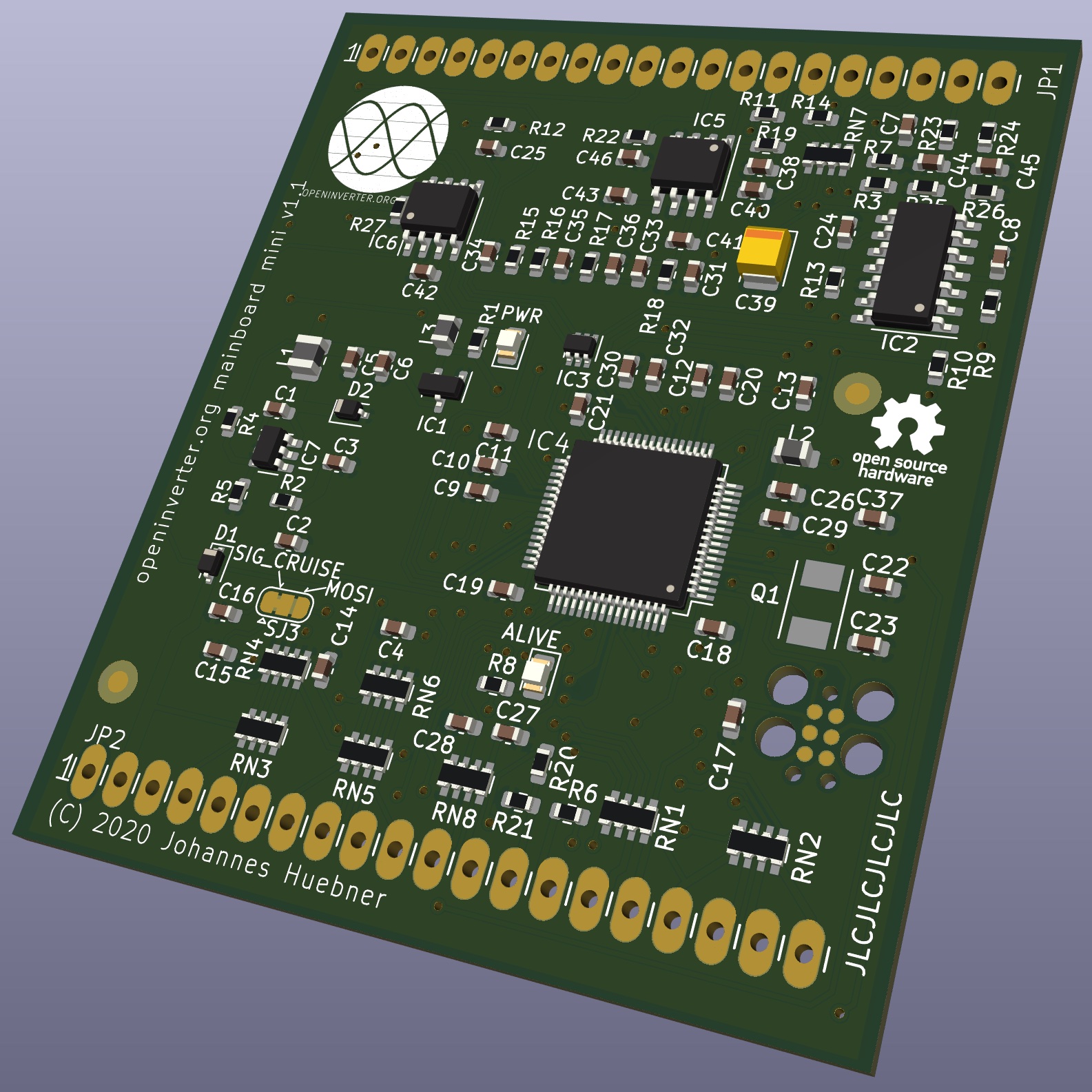

Openinverter hw mainboard mini, from the project README
From the project README

Main components on the Openinverter hw mainboard mini

XC6206P332MRLM2901NC7SZ10P6XSTM32F103RBT6TDA2822DSN65HVD230RT8259GE

Openinverter hw mainboard mini bill of materials (BOM)

96 components, 32 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
XC6206P332MR
IC1
1
LM2901
IC2
1
NC7SZ10P6X
IC3
1
STM32F103RBT6
IC4
1
TDA2822D
IC5
1
SN65HVD230
IC6
1
RT8259GE
IC7
1
8MHZ
8MHz
Q1
2
LED_0603_GN
ALIVE0, PWR0
2
1N5819WS
D1, D2
1
C82314
4.7µH
L1
1
C68035
100µH
L2
1
C1046
10µH
L3
6
22N
22n
C1, C33, C34, C35, C36, C43
6
C96446
10µ
C2, C4, C6, C7, C26, C41
24
C15849
1µ
C3, C5, C8, C9, C10, C11, C12, C13 +16
2
20P
20p
C22, C23
5
1NF
1nF
C25, C31, C32, C44, C45
2
100N
100n
C38, C46
1
C16133
100µ
C39
Show 12 more
QtyPartRefs
7
510
R1, R3, R6, R8, R11, R14, R21
1
100K
100k
R2
1
51K
51k
R4
9
10K
10k
R5, R9, R10, R12, R13, R15, R18, R20 +1
1
220
R7
4
3K3
3k3
R16, R17, R23, R24
2
4R7
R19, R22
2
6K8
6k8
R25, R26
2
470
RN1, RN2
2
4K7
4k7
RN3, RN5
2
1K2
1k2
RN4, RN6
2
10K
10k
RN7, RN8

Openinverter hw mainboard mini design files

The KiCad project lives in the llange/openinverter-hw-mainboard-mini repository on GitHub; these links point at the commit this page was built from.

Openinverter hw mainboard mini: common questions

What microcontroller does the Openinverter hw mainboard mini use?

The Openinverter hw mainboard mini is built around the STM32F103RBT6, from the STM32 family.

How big is the Openinverter hw mainboard mini PCB?

The Openinverter hw mainboard mini measures 56.8 × 67.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Openinverter hw mainboard mini?

96 components, from 32 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Openinverter hw mainboard mini design files?

From the llange/openinverter-hw-mainboard-mini repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Openinverter hw mainboard mini design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which llange chose for the repository.

Can I test firmware for the Openinverter hw mainboard mini without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
