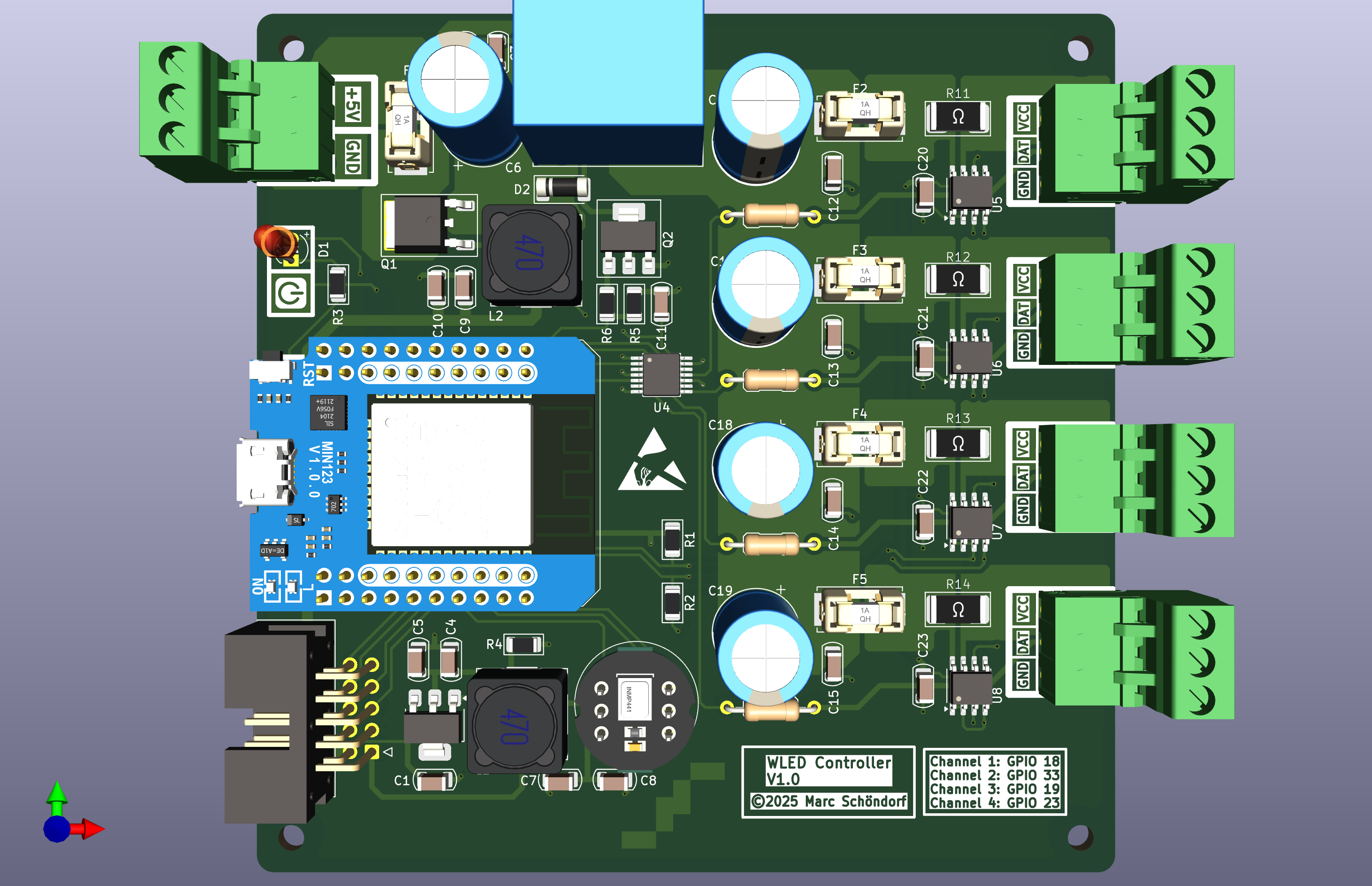

WLED-Controller PCB layout, top view — open source ESP32 board by LostInCompilation
Simulate this board

About the WLED-Controller PCB

WLED-Controller is an open source ESP32 PCB design by LostInCompilation, published on GitHub. It is a 2-layer board measuring 100 × 100 mm, with 63 components from 27 distinct parts.

Its main chip is the esp32-wemos-d1-mini, from the ESP32 family. Other key parts include the AMS1117-3.3, 74AHCT125 and INA219. By type, the board carries 23 capacitors, 14 resistors, 8 ICs, 6 connectors, 5 fuses and 2 transistors.

It belongs with the iot & wireless, audio and displays & leds designs in this gallery.

From the project

WLED Controller Board with ESP32 - 4 Channels - Current and Power Monitoring - INMP441 Microphone

NOTE: The usermod is currently in development and will be uploaded to thtis repository._

WLED-Controller, from the project README
From the project README

Main components on the WLED-Controller

AMS1117-3.3esp32-wemos-d1-mini74AHCT125INA219

WLED-Controller bill of materials (BOM)

63 components, 27 distinct parts.

QtyPartRefs
1
AMS1117-3.3
U1
1
~
U2
1
esp32-wemos-d1-mini
U3
1
74AHCT125
U4
4
INA219
U5, U6, U7, U8
1
AOD403
Q1
1
IRLL2705
Q2
1
5V Power
J1
1
I2S Extension
J2
1
LED Channel 1
J3
1
LED Channel 2
J4
1
LED Channel 3
J5
1
LED Channel 4
J6
5
Fuse
F1, F2, F3, F4, F5
1
SANYOU SRD
K1
1
LED DUAL
D1
1
SMS140
D2
2
680uH
L1, L2
14
100nF 50V
C1, C2, C4, C7, C10, C11, C12, C13 +6
4
10uF 25V
C3, C5, C8, C9
Show 7 more
QtyPartRefs
1
2200uF 10V
C6
4
1200uF 16V
C16, C17, C18, C19
2
3k3
R1, R2
2
150R
R3, R4
2
10k
R5, R6
4
62R
R7, R8, R9, R10
4
0.01R 1%
R11, R12, R13, R14

WLED-Controller design files

The KiCad project lives in the LostInCompilation/WLED-Controller-PCB repository on GitHub; these links point at the commit this page was built from.

WLED-Controller: common questions

What microcontroller does the WLED-Controller use?

The WLED-Controller is built around the esp32-wemos-d1-mini, from the ESP32 family.

How big is the WLED-Controller PCB?

The WLED-Controller measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the WLED-Controller?

63 components, from 27 distinct parts. The full bill of materials is listed on this page.

Where can I download the WLED-Controller design files?

From the LostInCompilation/WLED-Controller-PCB repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the WLED-Controller design in my own project?

The repository has no license, so all rights stay with LostInCompilation. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the WLED-Controller without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
