Fsk energymeter PCB layout, top view — open source STM32 board by luftaquila
Simulate this board

About the Fsk energymeter PCB

Fsk energymeter is an open source STM32 PCB design by luftaquila, published on GitHub under the Custom license license. It is a 2-layer board measuring 90 × 74 mm, with 79 components from 43 distinct parts.

Its main chip is the STM32F401RCTx, from the STM32 family. Other key parts include the AMC3311QDWERQ1, L78L05ABUTR, NCP51460SN33T1G, LM2675MX-5.0/NOPB and LM324DR. By type, the board carries 39 capacitors, 24 resistors, 8 ICs, 3 diodes, 2 crystals and 1 connector.

From the project

E-Formula electric energy meter for Formula Student Korea

100 Hz data recording HV bus voltage HV bus current LV supply voltage Ambient (CPU) temperature Real-world time of each record USB Mass Storage data extraction Web-based data viewer

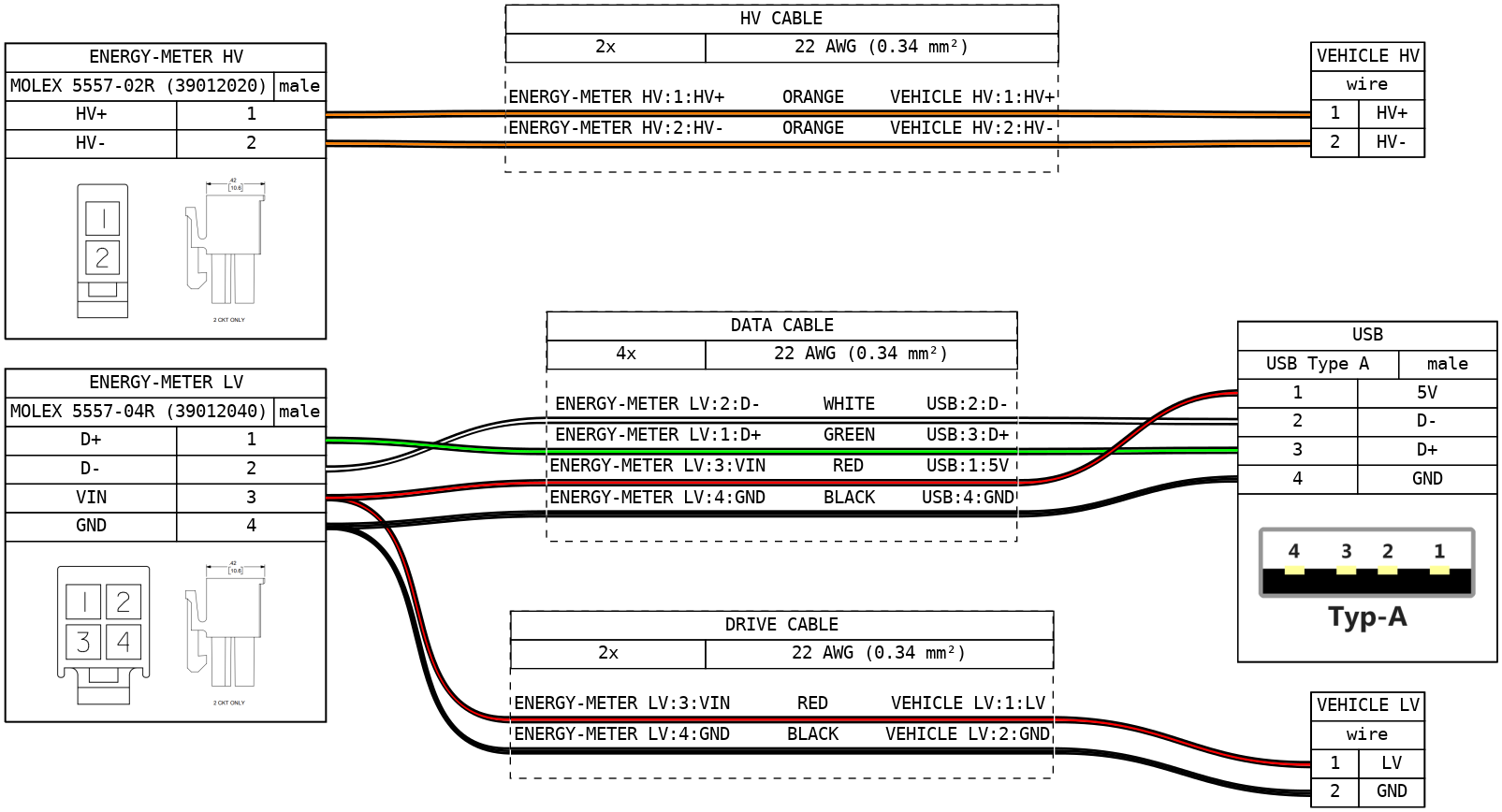

The data cable and the drive cable are two distinct cables. When driving the vehicle, connect the drive cable to the LV connector of the device. To extract data, disconnect the drive cable and connect the data cable instead.

Fsk energymeter, from the project README
From the project README

Main components on the Fsk energymeter

AMC3311QDWERQ1L78L05ABUTRNCP51460SN33T1GLM2675MX-5.0/NOPBLM324DRTLV9001IDBVRSTM32F401RCTxAMS1117-3.3

Fsk energymeter bill of materials (BOM)

79 components, 43 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AMC3311QDWERQ1
AMC3311QDWER
IC1
1
L78L05ABUTR
78L05G-AB3-R
IC2
1
NCP51460SN33T1G
IC3
1
LM2675MX-5.0/NOPB
LM2675MX-5.0_NOPB
IC4
1
LM324DR
LMV324AIDR
U1
1
TLV9001IDBVR
TLV9001UIDBVR
U3
1
STM32F401RCTx
U4
1
AMS1117-3.3
U5
1
X322525MOB4SI
Y1
1
Q13FC13500004
Y2
1
TF-115-BCP9
Micro_SD_Card
J4
1
CR1220-2
CR1220
BT1
1
SS15
SS14
D1
1
XL-1608UGC-04
LED
D2
1
BAT54C
D3
1
SMMS0650-101M
100uH
L1
3
CL10B223KB8NNNC
22nF
C1, C11, C16
3
CL10A105KB8NNNC
1uF
C2, C10, C19
2
CL10B102KB8NNNC
1nF
C3, C7
13
CC0603KRX7R9BB104
0.1uF
C4, C6, C8, C17, C21, C22, C23, C24 +5
Show 23 more
QtyPartRefs
2
CL10C331JB8NNNC
330pF
C5, C15
1
CL21B334KBFNNNE
0.33uF
C9
1
CL10C101JB8NNNC
100pF
C12
1
CL31B102KGFNNNE
1nF
C13
1
CL31B105KBHNNNE
1uF
C14
2
CL10B103KB8NNNC
10nF
C18, C25
3
CL10A106MA8NRNC
10uF
C20, C31, C33
1
T491X476K035AT
47uF
C26
1
TAJD107K016RNJ
100uF
C27
4
CC0603KRX7R9BB104
20pF
C28, C29, C34, C36
1
CL10A475KO8NNNC
4.7uF
C35
1
2k
R1
1
3.9K
3.9k
R2
7
10K
10k
R3, R14, R17, R22, R23, R24, R25
4
3.3K
3.3k
R4, R5, R7, R13
2
20K
20k
R6, R8
2
ARG06BTC1004
1M
R9, R10
1
ARG06FTC5603
560k
R11
1
ARG06DTC4303
430k
R12
1
68K
68k
R15
1
22K
22k
R16
2
22
R18, R19
1
1k
R20

Fsk energymeter design files

The KiCad project lives in the luftaquila/fsk-energymeter repository on GitHub; these links point at the commit this page was built from.

Fsk energymeter: common questions

What microcontroller does the Fsk energymeter use?

The Fsk energymeter is built around the STM32F401RCTx, from the STM32 family.

How big is the Fsk energymeter PCB?

The Fsk energymeter measures 90 × 74 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Fsk energymeter?

79 components, from 43 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Fsk energymeter design files?

From the luftaquila/fsk-energymeter repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Fsk energymeter design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.

Can I test firmware for the Fsk energymeter without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
