ESP01-MOTOR CTRL - TWIN NODE

MAATHES-THILAK-K·TWIN-NODE·MOTOR CONTROLLER/ESP01-MOTOR_CTRL - TWIN_NODE.kicad_pcb

ESP01-MOTOR CTRL - TWIN NODE PCB layout, top view — open source board by MAATHES-THILAK-K

About the ESP01-MOTOR CTRL - TWIN NODE PCB

ESP01-MOTOR CTRL - TWIN NODE is an open source PCB design by MAATHES-THILAK-K, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 60 × 87.5 mm, with 16 components from 15 distinct parts.

Other key parts include the RT9080-33GJ5. By type, the board carries 3 connectors, 2 diodes, 2 capacitors, 2 resistors, 1 IC and 1 module.

It belongs with the iot & wireless, robotics & motion and power & battery designs in this gallery.

From the project

ESP-NOW based solar-powered water level monitoring system for overhead tanks. An outdoor ESP8266 node uses a waterproof ultrasonic sensor to measure water level and transmits data wirelessly without internet. Designed for ultra-low power, outdoor reliability, and real-world deployment.

The TWIN-NODE Motor Controller is a compact wireless motor control module designed to work with the TWIN-NODE water level monitoring system. It enables remote ON/OFF control of a water pump using ESP-NOW, without internet connectivity.

ESP-01 (ESP8266) based controller Wireless control using ESP-NOW Relay-based motor switching Electrical isolation between control and load * Manufacturable PCB design

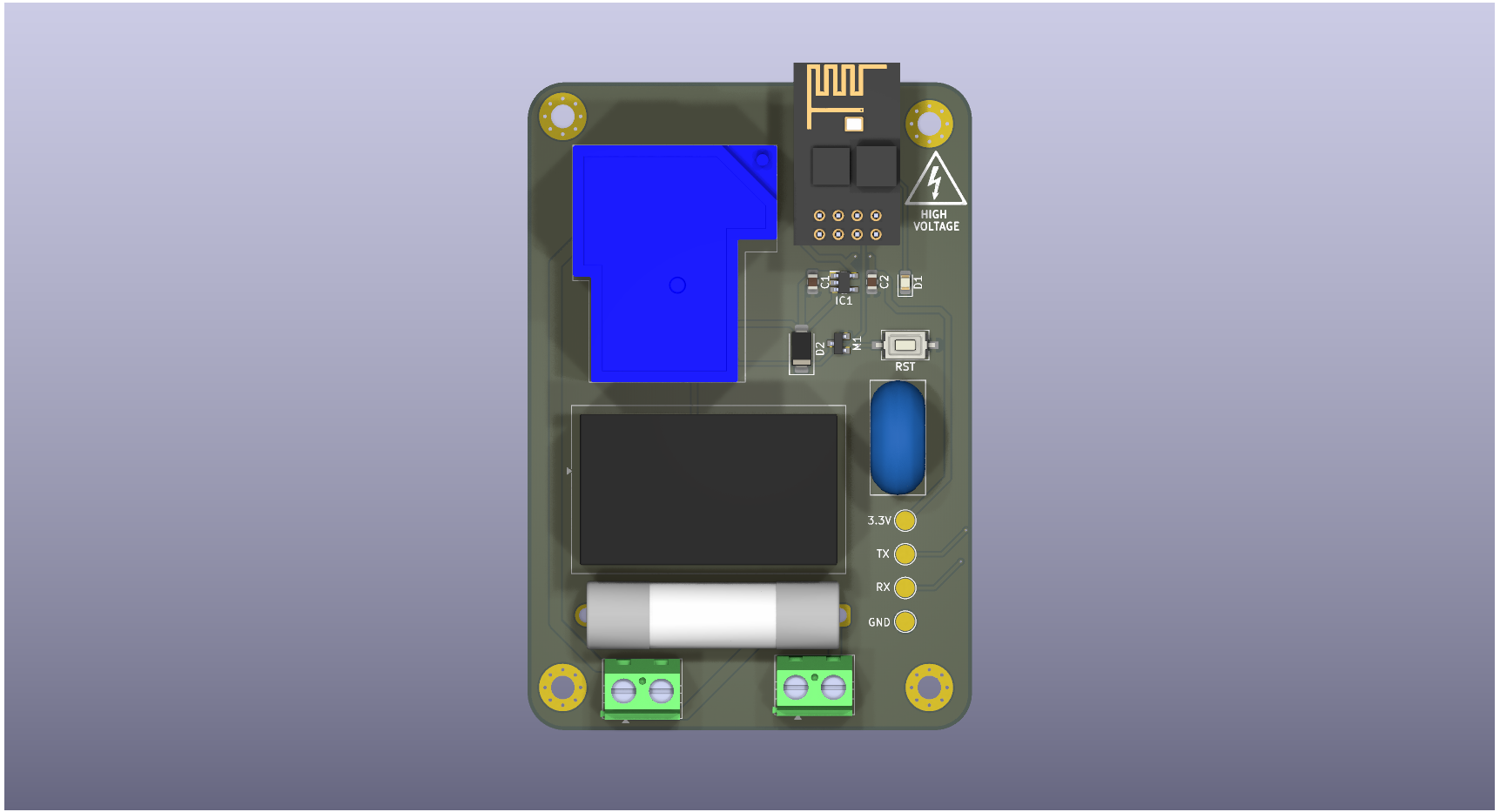

ESP01-MOTOR CTRL - TWIN NODE, from the project README — From the project README

Main components on the ESP01-MOTOR CTRL - TWIN NODE

ESP01-MOTOR CTRL - TWIN NODE bill of materials (BOM)

16 components, 15 distinct parts.

Qty	Part	Footprint	Refs
1	RT9080-33GJ5	SOT94P280X100-5N	IC1
1	SI2300	SOT-23	M1
1	MOTOR	TerminalBlock_MaiXu_MX126-5.0-02P_1x02_P5.00mm	J1
1	02X04	PinSocket_2x04_P2.54mm_Vertical	J2
1	INPUT	TerminalBlock_MaiXu_MX126-5.0-02P_1x02_P5.00mm	J3
1	250V@500mA	Fuseholder_Clip-6.3x32mm_Littelfuse_102_122_Inline_P34.21x7.62mm_D1.98mm_Horizontal	F1
1	SLA-5VDC-SL-C	RELAY_SLA-12VDC-SL-C	K1
1	HLK-PM01	Converter_ACDC_Hi-Link_HLK-PMxx	PS1
1	275V-14D	RV_Disc_D15.5mm_W7.5mm_P7.5mm	RV1
1	SW_Push	SW_Tactile_SPST_NO_Straight_CK_PTS636Sx25SMTRLFS	SW1
1	LED	LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder	D1
1	SS12	D_SMA	D2
2	10uF	C_0805_2012Metric_Pad1.18x1.45mm_HandSolder	C1, C2
1	10K	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	R1
1	1K	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	R2

ESP01-MOTOR CTRL - TWIN NODE design files

The KiCad project lives in the MAATHES-THILAK-K/TWIN-NODE repository on GitHub; these links point at the commit this page was built from.

ESP01-MOTOR CTRL - TWIN NODE: common questions

How big is the ESP01-MOTOR CTRL - TWIN NODE PCB?

The ESP01-MOTOR CTRL - TWIN NODE measures 60 × 87.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ESP01-MOTOR CTRL - TWIN NODE?

16 components, from 15 distinct parts. The full bill of materials is listed on this page.

Where can I download the ESP01-MOTOR CTRL - TWIN NODE design files?

From the MAATHES-THILAK-K/TWIN-NODE repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the ESP01-MOTOR CTRL - TWIN NODE design in my own project?

Yes, under the terms of its Apache-2.0 license, which MAATHES-THILAK-K chose for the repository.
