About the TI-MSPM0 PCB

TI-MSPM0 is an open source PCB design by marwantm, published on GitHub. It is a 2-layer board measuring 60 × 34 mm, with 29 components from 13 distinct parts.

Other key parts include the SPX3819M5-L-3-3, USBLC6-2SC6, MSPM0G3507SPTR, LIS2DH and CH340E. By type, the board carries 14 capacitors, 8 resistors, 5 ICs, 1 crystal and 1 connector.

It belongs with the test & measurement, dev boards & breakouts and usb & debug tools designs in this gallery.

From the project

TI MSPM0 2-layer development board — KiCad PCB design project

A 2-layer TI MSPM0 development board, designed in KiCad by following Phil's Lab's tutorial — this time spending less effort on replicating the steps and more on understanding the engineering decisions behind each one.

This board is built around the MSPM0G3507SPTR, an Arm Cortex-M0+ MCU from Texas Instruments. It includes USB-C power/data via a USB-UART converter, an SWD programming header, an onboard 3.3V LDO regulator, and an onboard accelerometer — a compact general-purpose MSPM0 development platform.

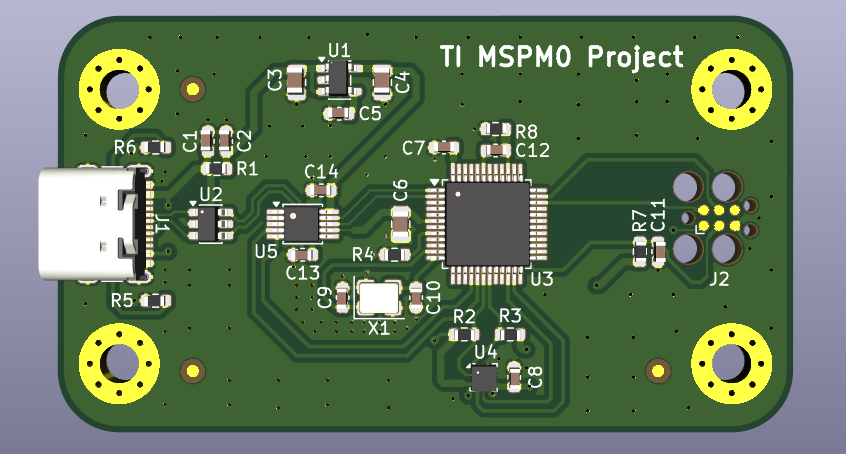

TI-MSPM0, from the project README
From the project README

Main components on the TI-MSPM0

SPX3819M5-L-3-3USBLC6-2SC6MSPM0G3507SPTRLIS2DHCH340E

TI-MSPM0 bill of materials (BOM)

29 components, 13 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
SPX3819M5-L-3-3
U1
1
USBLC6-2SC6
U2
1
MSPM0G3507SPTR
U3
1
LIS2DH
U4
1
CH340E
U5
1
8MHZ
8MHz
X1
1
USB_C_RECEPTACLE_USB2.0_16P
USB_C_Receptacle_USB2.0_16P
J1
9
470NF
470nF
C1, C2, C5, C7, C8, C11, C12, C13 +1
3
10UF
10uF
C3, C4, C6
2
15PF
15pF
C9, C10
2
0R
R1, R8
5
5K1
5k1
R2, R3, R5, R6, R7
1
100K
100k
R4

TI-MSPM0 design files

The KiCad project lives in the marwantm/TI-MSPM0 repository on GitHub; these links point at the commit this page was built from.

TI-MSPM0: common questions

How big is the TI-MSPM0 PCB?

The TI-MSPM0 measures 60 × 34 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the TI-MSPM0?

29 components, from 13 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the TI-MSPM0 design files?

From the marwantm/TI-MSPM0 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the TI-MSPM0 design in my own project?

The repository has no license, so all rights stay with marwantm. Use it as a reference, and ask the author before reusing the design.
