Weather station-Sensor board
About the Weather station-Sensor board
Weather station-Sensor board is an open source PCB design by Matyas604, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 75.2 × 36.5 mm, with 28 components from 17 distinct parts.
Other key parts include the SHT40-AD1B-R2, BMP280, SGP41-D-R4, LM393 and AS3935. By type, the board carries 12 capacitors, 6 resistors, 5 ICs, 3 connectors and 1 inductor.
It belongs with the sensors and iot & wireless designs in this gallery.
From the project
A weather station that sends data via Wi-Fi to Home Assistant. It uses an ESP-32 and ESPHome code. It measures temperature, humidity, pressure, air quality, wind speed, lightning distance and energy, and whether it is raining.

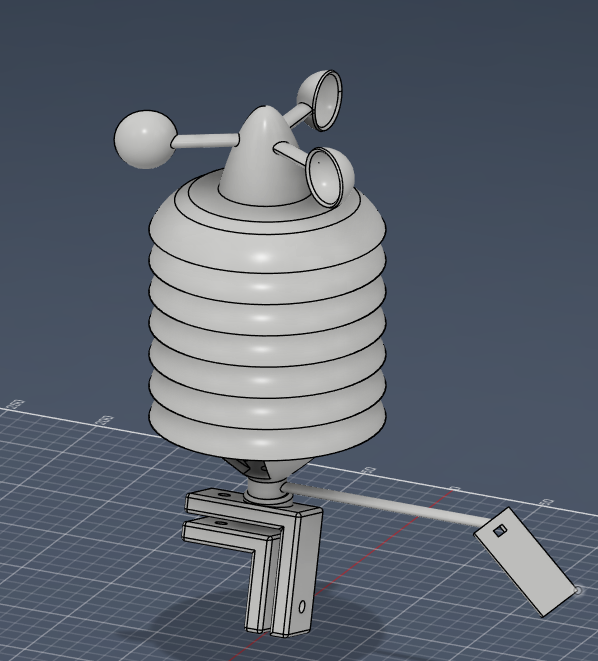

This project was more about 3D modeling than PCB design, but in the end, I’m very satisfied.
⚠️The screw and nuts for the anemometer and the rods for the radiation shield must be made of brass, because brass is non-magnetic and therefore will not interfere with the lightning detection antenna, unlike iron or steel!
Main components on the Weather station-Sensor board
Weather station-Sensor board bill of materials (BOM)
28 components, 17 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SHT40-AD1B-R2 | SHT4X | U1 |
| 1 | BMP280 | Bosch_LGA-8_2x2.5mm_P0.65mm_ClockwisePinNumbering | U2 |
| 1 | SGP41-D-R4 | XDCR_SGP41-D-R4 | U3 |
| 1 | LM393 | SOIC-8_3.9x4.9mm_P1.27mm | U4 |
| 1 | AS3935 | MLPQ-16-1EP_4x4mm_P0.65mm_EP2.8x2.8mm | U5 |
| 1 | Screw_Terminal_01x06 | TerminalBlock_Phoenix_MKDS-1,5-6-5.08_1x06_P5.08mm_Horizontal | J1 |
| 1 | Conn_01x02_Pin | PinHeader_1x02_P2.54mm_Vertical | J2 |
| 1 | Conn_01x04_Pin | PinHeader_1x04_P2.54mm_Vertical | J3 |
| 1 | R_Potentiometer_Trim | Potentiometer_Bourns_3314G_Vertical | RV1 |
| 1 | 100uH | MA5532-AE | L1 |
| 5 | 100nF | C_0805_2012Metric | C1, C4, C5, C8, C10 |
| 3 | 1uF | C_0805_2012Metric | C2, C3, C11 |
| 2 | 470pF | C_0805_2012Metric | C6, C12 |
| 2 | 10uF | C_0805_2012Metric | C7, C9 |
| 2 | 5.1k | R_0805_2012Metric | R1, R2 |
| 3 | 10k | R_0805_2012Metric | R3, R4, R6 |
| 1 | 4.7R | R_0805_2012Metric | R5 |
Weather station-Sensor board design files
The KiCad project lives in the Matyas604/Ultimate-weather-station repository on GitHub; these links point at the commit this page was built from.
Weather station-Sensor board: common questions
How big is the Weather station-Sensor board?
The Weather station-Sensor board measures 75.2 × 36.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Weather station-Sensor board?
28 components, from 17 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Weather station-Sensor board design files?
From the Matyas604/Ultimate-weather-station repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Weather station-Sensor board design in my own project?
Yes, under the terms of its GPL-3.0 license, which Matyas604 chose for the repository.
