IOS-MoonLamp PCB layout, top view — open source ESP32 board by mkhairyx
Simulate this board

About the IOS-MoonLamp PCB

IOS-MoonLamp is an open source ESP32 PCB design by mkhairyx, published on GitHub. It is a 2-layer board measuring 60 × 60 mm, with 33 components from 21 distinct parts.

Its main chip is the ESP32-WROOM-32, from the ESP32 family. Other key parts include the AMS1117-3.3, CP2102N-AXX-XQFN28 and PC817. By type, the board carries 11 capacitors, 10 resistors, 5 ICs, 3 switches, 3 diodes and 1 connector.

It belongs with the iot & wireless designs in this gallery.

From the project

A Moon Lamp based on an ESP32 controlled using the iOS Home app.

Bought a battery powered Moon lamp a few years ago, and it was cool back then but now it’s boring that I have to turn it on and off manually every night. So I removed the insides of it and made it powered with an ESP32 controlled by the iOS Home app.

https://github.com/user-attachments/assets/3fa87b10-48f1-4240-b7dd-df9781dbfde8

[^cli]: Check the The HomeSpan Command-Line Interface (CLI) to be able to use the device's CLI through the onboard USB-C port.

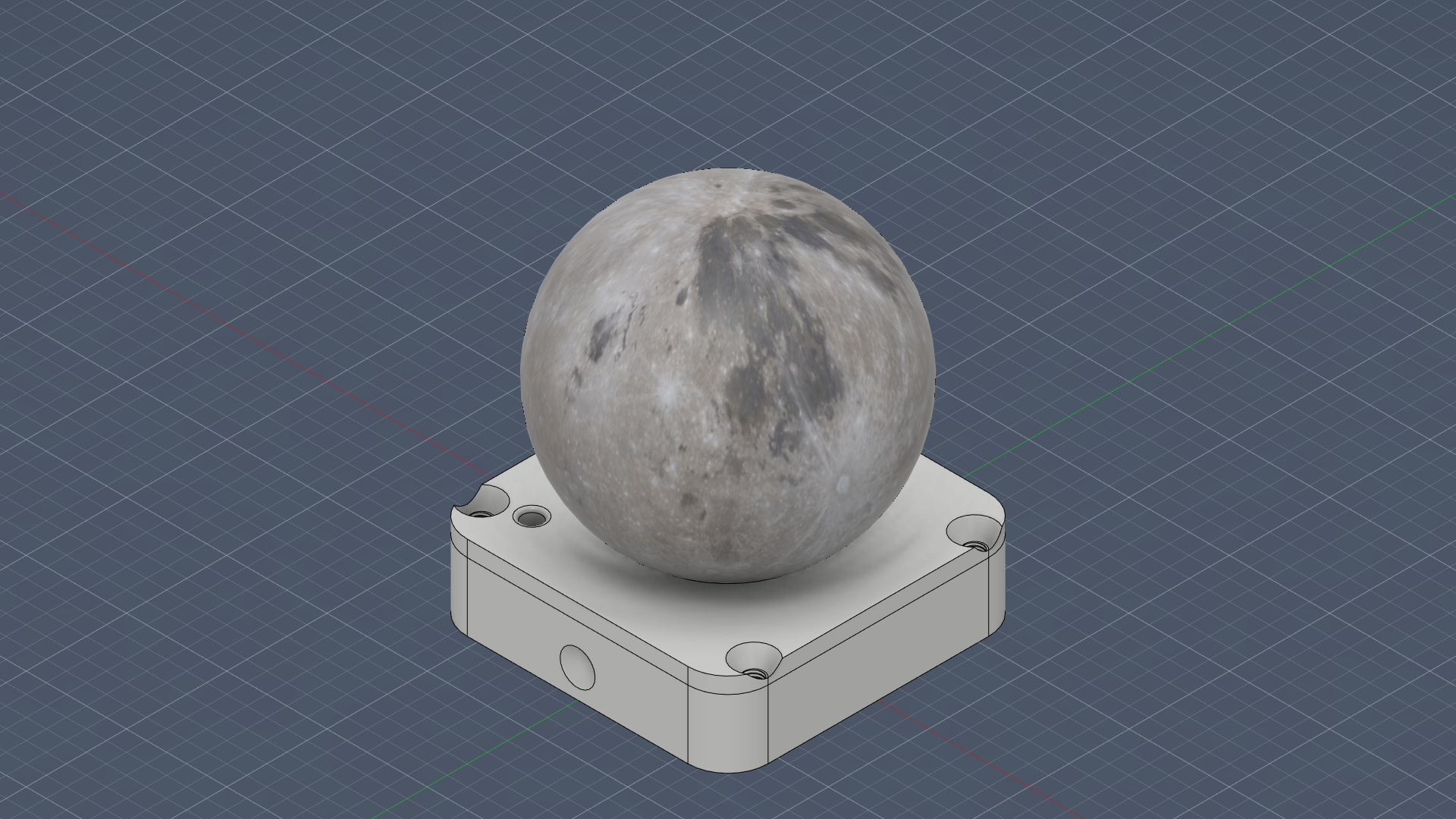

IOS-MoonLamp, from the project README
From the project README

Main components on the IOS-MoonLamp

AMS1117-3.3CP2102N-AXX-XQFN28ESP32-WROOM-32PC817

IOS-MoonLamp bill of materials (BOM)

33 components, 21 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AMS1117-3.3
U1
1
CP2102N-AXX-XQFN28
CP2102N-Axx-xQFN28
U2
1
ESP32-WROOM-32
U3
1
PC817
U4
1
~
U5
1
USB_C_RECEPTACLE_USB2.0_16P
USB_C_Receptacle_USB2.0_16P
J1
1
(BOOT)
SW1
1
(EN)
SW2
1
(CTRL)
SW3
1
WS2812B
D1
1
RED LED
D2
1
BLUE LED
D3
3
22uF/10V(20%)
C1, C2, C5
7
0.1uF/50V(10%)
C3, C6, C7, C8, C9, C10, C11
1
4.7uF/6.3V(10%)
C4
2
5.1K
5.1k
R1, R2
3
2k
R3, R6, R10
1
22K(5%)
R4
1
47K
R5
2
10K
R7, R8
Show 1 more
QtyPartRefs
1
220
R9

IOS-MoonLamp design files

The KiCad project lives in the mkhairyx/iOS-MoonLamp repository on GitHub; these links point at the commit this page was built from.

IOS-MoonLamp: common questions

What microcontroller does the IOS-MoonLamp use?

The IOS-MoonLamp is built around the ESP32-WROOM-32, from the ESP32 family.

How big is the IOS-MoonLamp PCB?

The IOS-MoonLamp measures 60 × 60 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the IOS-MoonLamp?

33 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the IOS-MoonLamp design files?

From the mkhairyx/iOS-MoonLamp repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the IOS-MoonLamp design in my own project?

The repository has no license, so all rights stay with mkhairyx. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the IOS-MoonLamp without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
