ESP32Sx01
About the ESP32Sx01 PCB
ESP32Sx01 is an open source ESP32 PCB design by mlab-modules, published on GitHub. It is a 2-layer board measuring 60.5 × 50.3 mm, with 33 components from 21 distinct parts.
Its main chip is the ESP32-S3-MINI-1, from the ESP32 family. Other key parts include the NCP1117-3.3 and USBLC6-2SC6. By type, the board carries 8 capacitors, 7 connectors, 7 resistors, 4 diodes, 3 ICs and 2 switches.
It belongs with the iot & wireless and dev boards & breakouts designs in this gallery.
From the project

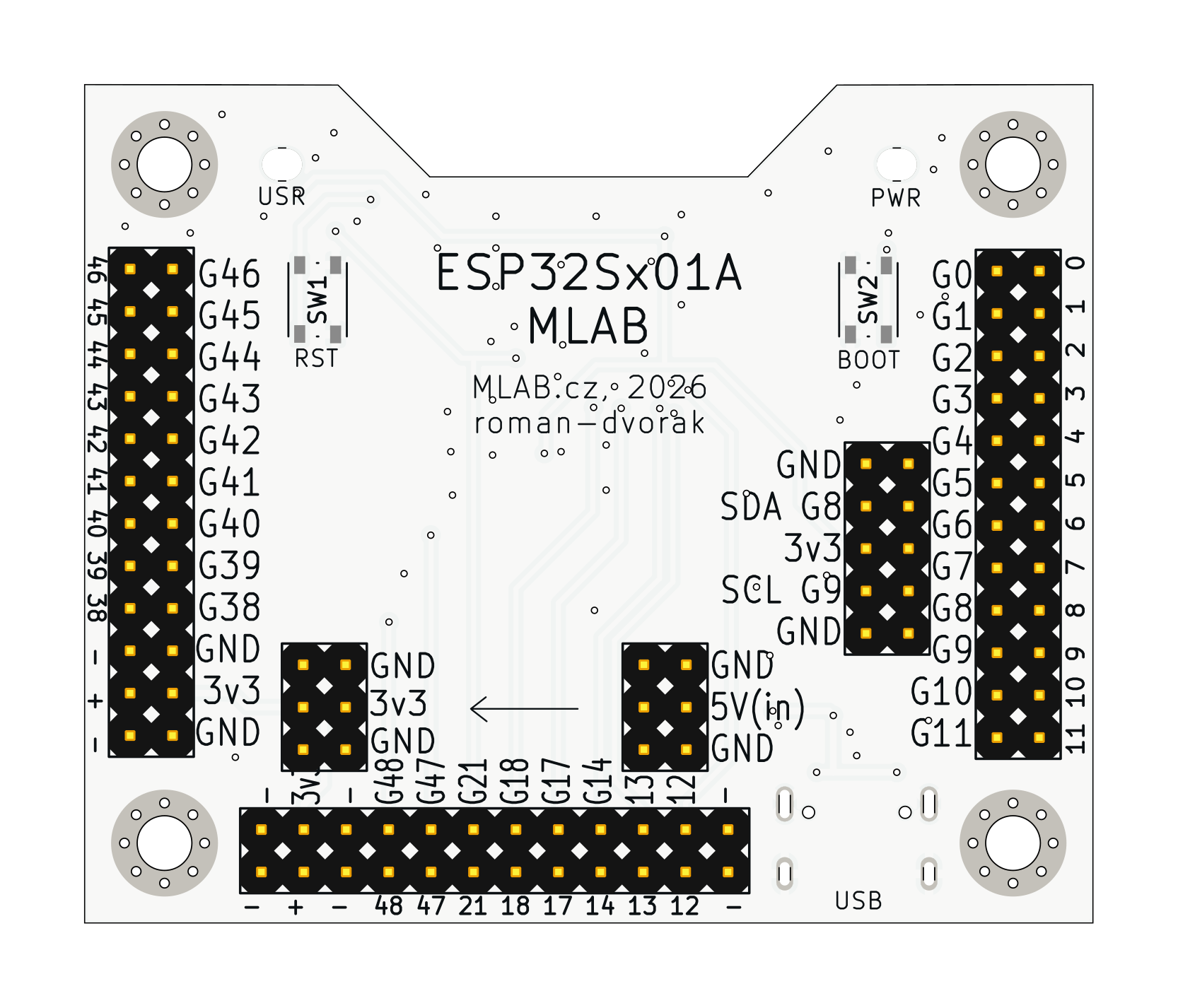

ESP32-S3 MLAB breakout board
ESP32Sx01 is a compact MLAB development module based on the ESP32-S3-MINI-1 microcontroller module from Espressif. The module provides a complete development platform for IoT applications with WiFi and Bluetooth connectivity.
Microcontroller: ESP32-S3-MINI-1 Dual-core Xtensa® 32-bit LX7 microprocessor WiFi 802.11 b/g/n (2.4 GHz) Bluetooth® 5 (LE) Up to 8 MB Flash Optional 2 MB PSRAM USB Connectivity: 2x USB Type-C connectors USB programming and debugging ESD protection (USBLC6-2SC6) Power Supply: Onboard 3.3V regulator (NCP1117-3.3) Input voltage: +5V via USB or external connector Output…
Main components on the ESP32Sx01
ESP32Sx01 bill of materials (BOM)
33 components, 21 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | NCP1117-3.3 | SOT-223-3_TabPin2 | U1 |
| 1 | USBLC6-2SC6 | SOT-23-6 | U2 |
| 1 | ESP32-S3-MINI-1 | ESP32-S3-MINI-1 | U3 |
| 1 | BC817-25 | SOT-23 | Q1 |
| 1 | Crystal_Small | ABS07 | Y1 |
| 2 | HEADER_1x03 | Straight_2x03 | J1, J6 |
| 1 | USBC_USB4105-GF-A | USBC GCT_USB4105-GF-A | J2 |
| 3 | HEADER_1x12 | Straight_2x12 | J3, J4, J5 |
| 1 | HEADER_2X05 HEADER_2x05 | Straight_2x05 | J7 |
| 2 | 434133025816 | SW_Push_1P1T_NO_Vertical_Wuerth_434133025816 | SW1, SW2 |
| 1 | BZX585-B5V6.115 | D_SOD-523 | D1 |
| 1 | BZT52H-C3V6,115 | Nexperia_CFP3_SOD-123W | D2 |
| 1 | KPTR-3216SURCK Red | LED_1206_KPTR | D3 |
| 1 | KPTR-3216SURCK Green | LED_1206_KPTR | D4 |
| 3 | 100n | C_0805_2012Metric | C1, C6, C7 |
| 3 | 10u | C_0805_2012Metric | C2, C3, C8 |
| 2 | C_Small | C_0805_2012Metric | C4, C5 |
| 2 | 5k1 | R_0805_2012Metric | R1, R2 |
| 2 | 1k | R_0805_2012Metric | R3, R4 |
| 2 | 200R | R_0805_2012Metric | R5, R6 |
Show 1 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 390R | R_0805_2012Metric | R7 |
ESP32Sx01 design files
The KiCad project lives in the mlab-modules/ESP32Sx01 repository on GitHub; these links point at the commit this page was built from.
ESP32Sx01: common questions
What microcontroller does the ESP32Sx01 use?
The ESP32Sx01 is built around the ESP32-S3-MINI-1, from the ESP32 family.
How big is the ESP32Sx01 PCB?
The ESP32Sx01 measures 60.5 × 50.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the ESP32Sx01?
33 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the ESP32Sx01 design files?
From the mlab-modules/ESP32Sx01 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the ESP32Sx01 design in my own project?
The repository has no license, so all rights stay with mlab-modules. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the ESP32Sx01 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
