About the ESP32-WROOM-Development-Board

ESP32-WROOM-Development-Board is an open source ESP32 PCB design by moksh-pcb-design, published on GitHub. It is a 2-layer board measuring 52 × 29 mm, with 26 components from 16 distinct parts.

Its main chip is the ESP32-WROOM-32, from the ESP32 family. Other key parts include the CH340C and AMS1117-3.3. By type, the board carries 7 resistors, 6 capacitors, 3 ICs, 3 connectors, 3 diodes and 2 transistors.

It belongs with the dev boards & breakouts and usb & debug tools designs in this gallery.

From the project

Custom ESP32-WROOM-32 Development Board designed in KiCad 10 featuring USB Type-C, CH340C USB-UART interface, AMS1117 power regulation and auto-programming circuitry.

A custom ESP32-WROOM-32 Development Board designed in KiCad 10 for embedded system development, firmware programming, debugging, and hardware prototyping.

The board integrates USB Type-C connectivity, CH340C USB-to-UART programming, AMS1117-3.3V power regulation, automatic programming circuitry, GPIO breakout headers, and onboard user controls.

This project demonstrates the complete PCB design workflow from schematic capture to manufacturing output generation.

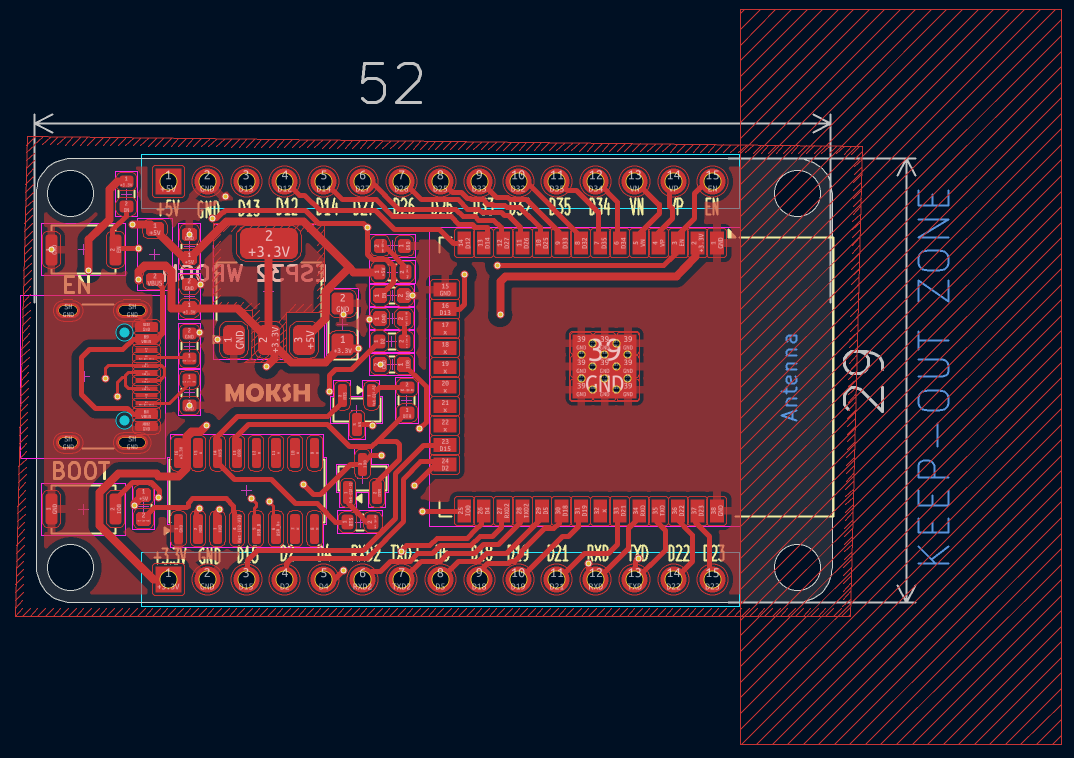

ESP32-WROOM-Development-Board, from the project README
From the project README

Main components on the ESP32-WROOM-Development-Board

ESP32-WROOM-32CH340CAMS1117-3.3

ESP32-WROOM-Development-Board bill of materials (BOM)

26 components, 16 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-WROOM-32
U1
1
CH340C
U2
1
AMS1117-3.3
U3
2
SS8050
Q1, Q2
1
USB_C_RECEPTACLE_USB2.0_16P
USB_C_Receptacle_USB2.0_16P
J1
2
CONN_01X15_PIN
Conn_01x15_Pin
J2, J3
2
SW_Push
SW1, SW2
1
B5819W
D1
1
RED
D2
1
BLUE
D3
5
100NF
100nF
C1, C3, C4, C5, C6
1
10UF/16V
10uF/16V
C2
2
5K1
R1, R2
1
1K
R3
3
10K
R4, R5, R6
1
220R
R7

ESP32-WROOM-Development-Board design files

The KiCad project lives in the moksh-pcb-design/ESP32-WROOM-Development-Board repository on GitHub; these links point at the commit this page was built from.

ESP32-WROOM-Development-Board: common questions

What microcontroller does the ESP32-WROOM-Development-Board use?

The ESP32-WROOM-Development-Board is built around the ESP32-WROOM-32, from the ESP32 family.

How big is the ESP32-WROOM-Development-Board?

The ESP32-WROOM-Development-Board measures 52 × 29 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ESP32-WROOM-Development-Board?

26 components, from 16 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ESP32-WROOM-Development-Board design files?

From the moksh-pcb-design/ESP32-WROOM-Development-Board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the ESP32-WROOM-Development-Board design in my own project?

The repository has no license, so all rights stay with moksh-pcb-design. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the ESP32-WROOM-Development-Board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
