ESP32 OLED Weather Display

motiforge-labs·PCB-Design-Portfolio·ESP32_OLED_Weather_Display/ESP32_OLED_Weather_Display.kicad_pcb

ESP32 OLED Weather Display PCB layout, top view — open source AVR/Arduino board by motiforge-labs

About the ESP32 OLED Weather Display PCB

ESP32 OLED Weather Display is an open source AVR/Arduino PCB design by motiforge-labs, published on GitHub. It is a 2-layer board measuring 50 × 90 mm, with 14 components from 12 distinct parts.

Its main chip is the Arduino_Nano_ESP32, from the AVR/Arduino family. Other key parts include the ER_OLEDM0.91_1x-I2C and BME280. By type, the board carries 6 resistors, 2 ICs, 2 capacitors, 1 module, 1 connector and 1 switch.

It belongs with the displays & leds and sensors designs in this gallery.

From the project

Custom PCB projects designed in KiCad featuring ESP32 and embedded systems.

A compact environmental monitoring and system display PCB built around the Arduino Nano ESP32. The board integrates a 0.91-inch I²C OLED display and a Bosch BME280 environmental sensor for measuring temperature, humidity, and atmospheric pressure. Designed in KiCad with an emphasis on clean routing, dual-layer ground planes, reliable I²C communication, and successful ERC/DRC verification.

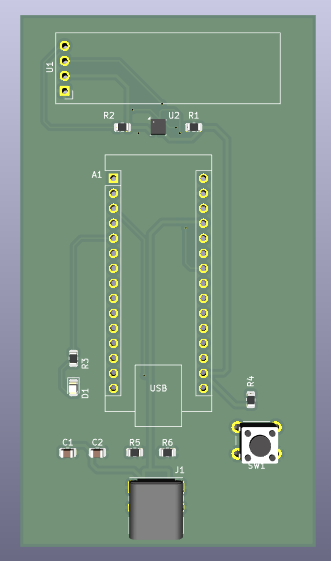

ESP32 OLED Weather Display, from the project README
From the project README

Main components on the ESP32 OLED Weather Display

ER_OLEDM0.91_1x-I2CBME280Arduino_Nano_ESP32

ESP32 OLED Weather Display bill of materials (BOM)

14 components, 12 distinct parts.

QtyPartRefs
1
ER_OLEDM0.91_1x-I2C
U1
1
BME280
U2
1
Arduino_Nano_ESP32
A1
1
USB_C_Receptacle
J1
1
SW_Push
SW1
1
LED
D1
1
10
C1
1
0.1
C2
2
4.7k
R1, R2
1
200
R3
1
10k
R4
2
5.1k
R5, R6

ESP32 OLED Weather Display design files

The KiCad project lives in the motiforge-labs/PCB-Design-Portfolio repository on GitHub; these links point at the commit this page was built from.

ESP32 OLED Weather Display: common questions

What microcontroller does the ESP32 OLED Weather Display use?

The ESP32 OLED Weather Display is built around the Arduino_Nano_ESP32, from the AVR/Arduino family.

How big is the ESP32 OLED Weather Display PCB?

The ESP32 OLED Weather Display measures 50 × 90 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ESP32 OLED Weather Display?

14 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the ESP32 OLED Weather Display design files?

From the motiforge-labs/PCB-Design-Portfolio repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the ESP32 OLED Weather Display design in my own project?

The repository has no license, so all rights stay with motiforge-labs. Use it as a reference, and ask the author before reusing the design.
