RJX-Embedded-Training-Kit PCB layout, top view — open source STM32 board by MUDAL

About the RJX-Embedded-Training-Kit PCB

RJX-Embedded-Training-Kit is an open source STM32 PCB design by MUDAL, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 69.7 × 70.9 mm, with 103 components from 42 distinct parts.

Its main chip is the STM32L431RCTx, from the STM32 family. Other key parts include the TLV76133DCY, LD39200DPUR, BQ24072RGT, LIS3DH and BQ27441-G1. By type, the board carries 41 resistors, 25 capacitors, 9 ICs, 8 connectors, 5 transistors and 5 diodes.

It belongs with the power & battery, displays & leds and sensors designs in this gallery.

From the project

Custom 4-layer PCB project by Olaoluwa Raji built around an STM32L4 MCU, Li-ion battery charger, power management, TI battery fuel gauge IC, sensors, CAN bus, and displays.

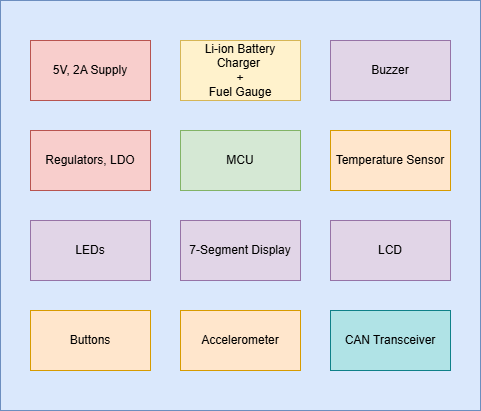

Hardware training platform built around STM32L431 with: - 5 V input and dual 3.3 V rails (digital +3V3 and analog +3V3A) - Li-ion charger/power-path + fuel gauge - Sensors (I2C/SMBus + SPI), UI peripherals (LCD/7-seg/buzzer), and CAN

This repository contains the complete KiCad 9 hardware design, PDFs/datasheets, and the STM32CubeMX pinout file. I have ensured that it is properly version-controlled by removing unnecessary KiCad artefacts/tool-specific outputs which can easily be re-generated by any user, and ensuring transition from the schematic design to PCB design and vice-versa without…

RJX-Embedded-Training-Kit, from the project README
From the project README

Main components on the RJX-Embedded-Training-Kit

TLV76133DCYLD39200DPURBQ24072RGTLIS3DHBQ27441-G1KCSA02-136TMP1075DGKMCP2562-E-SNSTM32L431RCTx

RJX-Embedded-Training-Kit bill of materials (BOM)

103 components, 42 distinct parts.
