Encoder

multigcs·riocore·riocore/plugins/quadencoderz/kicad/encoder/encoder.kicad_pcb

Encoder PCB layout, top view — open source board by multigcs
Simulate this board

About the Encoder PCB

Encoder is an open source PCB design by multigcs, published on GitHub under the GPL-2.0 license. It is a 2-layer board measuring 19.8 × 26.8 mm, with 5 components from 3 distinct parts.

Other key parts include the ADuM1411. By type, the board carries 3 resistors, 1 IC and 1 connector.

From the project

riocore

usable as spindle-encoder for rigid tapping and thread cutting. It is critical that your position-scale and QUADTYPE match, see the details in the description for QUADTYPE

Keywords: feedback encoder rotary linear glassscale index NEEDS: fpga

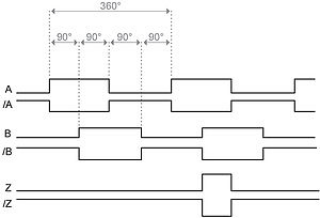

Encoder, from the project README
From the project README

Main components on the Encoder

ADuM1411

Encoder bill of materials (BOM)

5 components, 3 distinct parts.

QtyPartRefs
1
ADuM1411
U1
1
691322110005
J2
3
10k
R1, R2, R3

Encoder design files

The KiCad project lives in the multigcs/riocore repository on GitHub; these links point at the commit this page was built from.

Encoder: common questions

How big is the Encoder PCB?

The Encoder measures 19.8 × 26.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Encoder?

5 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the Encoder design files?

From the multigcs/riocore repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Encoder design in my own project?

Yes, under the terms of its GPL-2.0 license, which multigcs chose for the repository.
