Rs422-master
About the Rs422-master PCB
Rs422-master is an open source PCB design by multigcs, published on GitHub under the GPL-2.0 license. It is a 2-layer board measuring 19.8 × 33.5 mm, with 3 components from 3 distinct parts.
Other key parts include the ADuM1201BR and ADM3488ExR. By type, the board carries 2 ICs and 1 connector.
From the project
riocore
uart interface for satellite cominucation

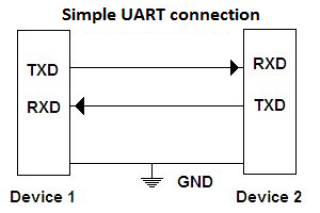

simple uart interface to connect satellite mcu/fpga
Keywords: serial satuart interface rs422 NEEDS: fpga
type: int min: 1 max: 10000 default: 100 * unit: ms
Main components on the Rs422-master
Rs422-master bill of materials (BOM)
3 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ADuM1201BR | SOIC-8_3.9x4.9mm_P1.27mm | U17 |
| 1 | ADM3488ExR | SOIC-8_3.9x4.9mm_P1.27mm | U18 |
| 1 | RJ45 | RJ45_Amphenol_RJHSE5380 | J9 |
Rs422-master design files
The KiCad project lives in the multigcs/riocore repository on GitHub; these links point at the commit this page was built from.
Rs422-master: common questions
How big is the Rs422-master PCB?
The Rs422-master measures 19.8 × 33.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Rs422-master?
3 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the Rs422-master design files?
From the multigcs/riocore repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Rs422-master design in my own project?
Yes, under the terms of its GPL-2.0 license, which multigcs chose for the repository.
