Rs422-slave

multigcs·riocore·riocore/plugins/uart/kicad/rs422-slave/rs422-slave.kicad_pcb

Rs422-slave PCB layout, top view — open source board by multigcs

About the Rs422-slave PCB

Rs422-slave is an open source PCB design by multigcs, published on GitHub under the GPL-2.0 license. It is a 2-layer board measuring 19.8 × 33.5 mm, with 3 components from 3 distinct parts.

Other key parts include the ADuM1201BR and ADM3488ExR. By type, the board carries 2 ICs and 1 connector.

From the project

riocore

Keywords: serial uart interface NEEDS: fpga

type: int min: 9600 max: 10000000 default: 1000000 * unit: bit/s

type: select default: full options: full, notimestamp, no_header, minimum

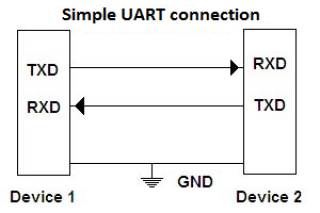

Rs422-slave, from the project README
From the project README

Main components on the Rs422-slave

ADuM1201BRADM3488ExR

Rs422-slave bill of materials (BOM)

3 components, 3 distinct parts.

QtyPartRefs
1
ADuM1201BR
U17
1
ADM3488ExR
U18
1
RS422
J9

Rs422-slave design files

The KiCad project lives in the multigcs/riocore repository on GitHub; these links point at the commit this page was built from.

Rs422-slave: common questions

How big is the Rs422-slave PCB?

The Rs422-slave measures 19.8 × 33.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Rs422-slave?

3 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the Rs422-slave design files?

From the multigcs/riocore repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Rs422-slave design in my own project?

Yes, under the terms of its GPL-2.0 license, which multigcs chose for the repository.
