W5500
About the W5500 PCB
W5500 is an open source PCB design by multigcs, published on GitHub under the GPL-2.0 license. It is a 2-layer board measuring 52.3 × 21.8 mm, with 34 components from 18 distinct parts.
Other key parts include the W5500. By type, the board carries 17 resistors, 13 capacitors, 1 IC, 1 crystal, 1 connector and 1 inductor.

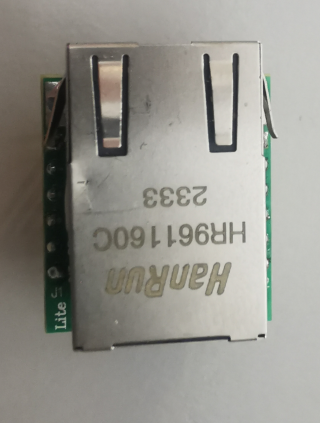

From the project
riocore
w5500 driver for the interface communication over UDP
Keywords: ethernet network udp interface NEEDS: fpga * PROVIDES: udp, interface
type: select default: full options: full, notimestamp, no_header, minimum
Main components on the W5500
W5500 bill of materials (BOM)
34 components, 18 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | W5500 | LQFP-48_7x7mm_P0.5mm | U8 |
| 1 | TXM25M0004252DBCEO00T Crystal_25MHz Yajingxin | Crystal_SMD_2520-4Pin_2.5x2.0mm | Y2 |
| 1 | J0011D21BNL RJ45_Pulse_J0011D21BNL Pulse | RJ45_Hanrun_HR911105A_Horizontal | J6 |
| 1 | UPZ1608E101-3R0TF FB_100R_3A Sunlord | L_0603_1608Metric | FB7 |
| 2 | 18pF | C_0603_1608Metric | C33, C34 |
| 2 | 10uF/6.3V | C_0603_1608Metric | C35, C39 |
| 3 | 0.1uF | C_0603_1608Metric | C36, C40, C41 |
| 2 | 10nF | C_0603_1608Metric | C37, C46 |
| 1 | 4.7uF | C_0603_1608Metric | C38 |
| 1 | 22nF | C_0603_1608Metric | C43 |
| 2 | 6.8nF | C_0603_1608Metric | C44, C45 |
| 1 | 1M | R_0603_1608Metric | R24 |
| 1 | 12.4K | R_0603_1608Metric | R25 |
| 4 | 10K | R_0603_1608Metric | R29, R30, R31, R32 |
| 2 | 330R | R_0603_1608Metric | R33, R34 |
| 4 | 0R | R_0603_1608Metric | R35, R36, R37, R38 |
| 4 | 49.9R | R_0603_1608Metric | R39, R40, R42, R43 |
| 1 | 10R | R_0603_1608Metric | R41 |
W5500 design files
The KiCad project lives in the multigcs/riocore repository on GitHub; these links point at the commit this page was built from.
W5500: common questions
How big is the W5500 PCB?
The W5500 measures 52.3 × 21.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the W5500?
34 components, from 18 distinct parts. The full bill of materials is listed on this page.
Where can I download the W5500 design files?
From the multigcs/riocore repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the W5500 design in my own project?
Yes, under the terms of its GPL-2.0 license, which multigcs chose for the repository.
