Phoenix Project No 1 - Type S

mymakercorner·Phoenix_Project_No1·kicad_projects/typeS/Phoenix_Project_No1-TypeS.kicad_pcb

Phoenix Project No 1 - Type S PCB layout, top view — open source RP2040/RP2350 board by mymakercorner
Simulate this board

About the Phoenix Project No 1 - Type S PCB

Phoenix Project No 1 - Type S is an open source RP2040/RP2350 PCB design by mymakercorner, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 304 × 112 mm, with 139 components from 20 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the ADP122AUJZ-3.3-R7, TPD3E001DRLR, W25Q16JVUXIQ and TXS0101DBVR. By type, the board carries 86 diodes, 35 capacitors, 7 resistors, 5 ICs, 2 switches and 1 crystal.

It belongs with the keyboards designs in this gallery.

From the project

A collection of replacement PCBs and plates for the M65-A keyboard

The Phoenix Project No 1 is a collection of replacement PCBs and plates for the M65-A keyboard. ## The Phoenix Project initiative

The goal of this initiative is to help revive our old beloved customs.

While the cases are often manufactured in sturdy metal and designed to last decades the provided PCB can fail for various reasons, rendering your nice keyboard pretty much useless as an input device. If a defacto standard PCB is used like in some 60% or TKL boards you could purchase an off the shelf replacement made by renowned PCB designers like Hiney or Wilba. But if the PCB is custom made…

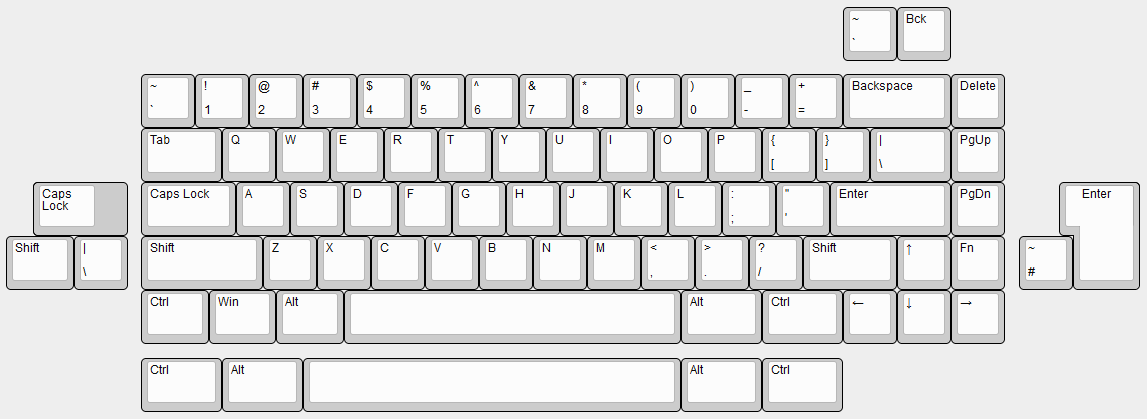

Phoenix Project No 1 - Type S, from the project README
From the project README

Main components on the Phoenix Project No 1 - Type S

ADP122AUJZ-3.3-R7TPD3E001DRLRRP2040W25Q16JVUXIQTXS0101DBVR

Phoenix Project No 1 - Type S bill of materials (BOM)

139 components, 20 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ADP122AUJZ-3.3-R7
U1
1
TPD3E001DRLR
U2
1
RP2040
U3
1
W25Q16JVUXIQ
U4
1
TXS0101DBVR
U5
1
12MHZ
12MHz
Y1
1
C145778
USB_B_Mini
J1
1
SMD0805-110
F1
2
K2-1187SQ-A4SW-06
SW1, SW2
16
WS2812B
D1, D2, D3, D4, D5, D6, D7, D8 +8
66
1N4148W
D17, D18, D19, D20, D21, D22, D23, D25 +58
4
1N4148W
D24, D73, D85, D86
1
CBW201209U121T
FB1
29
100N
100n
C1, C2, C3, C4, C5, C6, C11, C12 +21
2
4.7U
4.7u
C7, C8
2
1u
C9, C10
2
30P
30p
C15, C16
2
1000
R1, R6
2
27
R2, R3
3
10K
10k
R4, R5, R7

Phoenix Project No 1 - Type S design files

The KiCad project lives in the mymakercorner/Phoenix_Project_No1 repository on GitHub; these links point at the commit this page was built from.

Phoenix Project No 1 - Type S: common questions

What microcontroller does the Phoenix Project No 1 - Type S use?

The Phoenix Project No 1 - Type S is built around the RP2040, from the RP2040/RP2350 family.

How big is the Phoenix Project No 1 - Type S PCB?

The Phoenix Project No 1 - Type S measures 304 × 112 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Phoenix Project No 1 - Type S?

139 components, from 20 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Phoenix Project No 1 - Type S design files?

From the mymakercorner/Phoenix_Project_No1 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Phoenix Project No 1 - Type S design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which mymakercorner chose for the repository.

Can I test firmware for the Phoenix Project No 1 - Type S without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
