LM2576HV-BREAKOUT-MOD

NatanaelBimo·LM2576HV-BREAKOUT-MOD

LM2576HV-BREAKOUT-MOD layout, top view — open source board by NatanaelBimo

About the LM2576HV-BREAKOUT-MOD

LM2576HV-BREAKOUT-MOD is an open source PCB design by NatanaelBimo, published on GitHub under the MIT license. It is a 2-layer board measuring 39 × 34 mm, with 13 components from 8 distinct parts.

Other key parts include the LM2576HVS-12. By type, the board carries 6 capacitors, 4 connectors, 1 IC, 1 diode and 1 inductor.

It belongs with the power & battery, dev boards & breakouts and sensors designs in this gallery.

From the project

LM2576HV switching regulator (12V) breakout board - Handle up to 60V input with high efficiency buck conversion. Open source hardware design.

A compact LM2576HV step-down (buck) regulator breakout board configured for a fixed 12V output, designed for applications that require high-voltage DC input (up to 60V) and a robust 12V rail for embedded systems, relays, sensors, and automotive/industrial use.

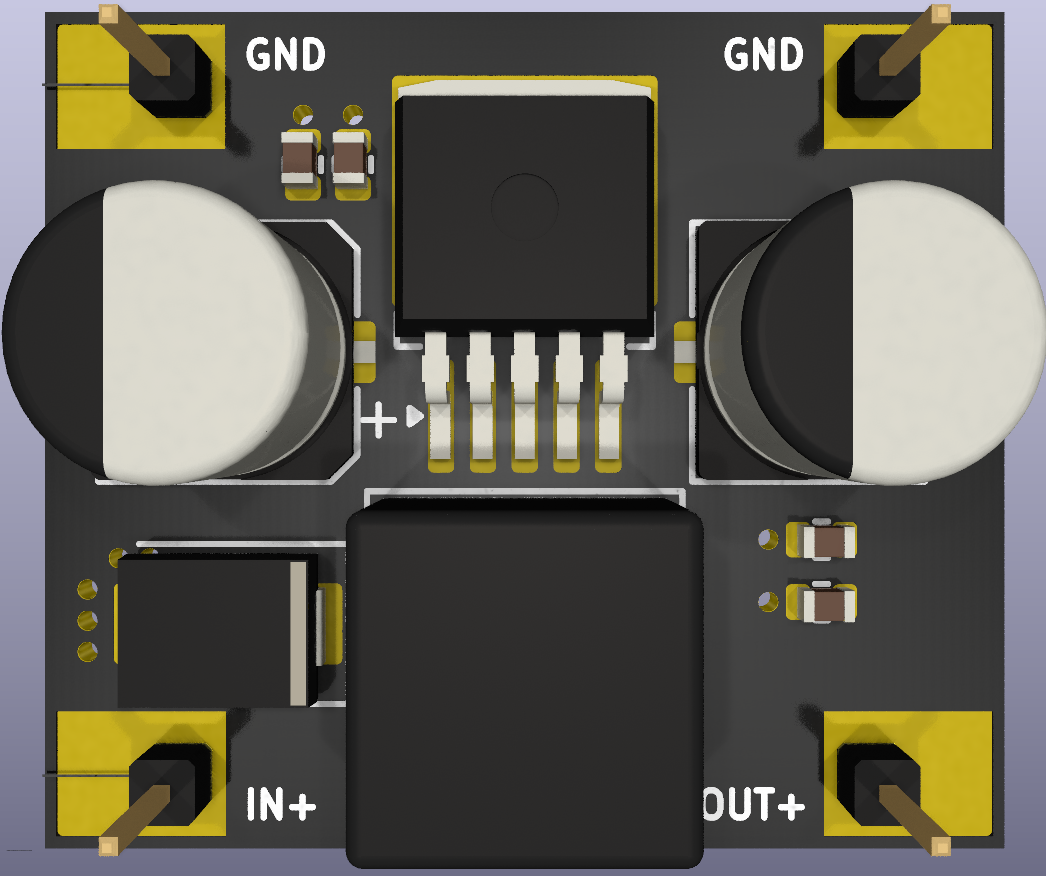

LM2576HV-BREAKOUT-MOD, from the project README
From the project README

Main components on the LM2576HV-BREAKOUT-MOD

LM2576HVS-12

LM2576HV-BREAKOUT-MOD bill of materials (BOM)

13 components, 8 distinct parts.

QtyPartRefs
1
LM2576HVS-12
U1
4
Conn_01x01
J1, J2, J3, J4
1
>3 A
D1
1
330u
L1
1
>100u
C1
2
10u
C2, C5
2
.1u
C3, C4
1
>330u
C6

LM2576HV-BREAKOUT-MOD design files

The KiCad project lives in the NatanaelBimo/LM2576HV-BREAKOUT-MOD repository on GitHub; these links point at the commit this page was built from.

LM2576HV-BREAKOUT-MOD: common questions

How big is the LM2576HV-BREAKOUT-MOD?

The LM2576HV-BREAKOUT-MOD measures 39 × 34 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the LM2576HV-BREAKOUT-MOD?

13 components, from 8 distinct parts. The full bill of materials is listed on this page.

Where can I download the LM2576HV-BREAKOUT-MOD design files?

From the NatanaelBimo/LM2576HV-BREAKOUT-MOD repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the LM2576HV-BREAKOUT-MOD design in my own project?

Yes, under the terms of its MIT license, which NatanaelBimo chose for the repository.
