Dut hub hw

About the Dut hub hw PCB

Dut hub hw is an open source RP2040/RP2350 PCB design by Netlist-Studio, published on GitHub under the CERN-OHL-S-2.0 license. It is a 4-layer board measuring 100 × 155 mm, with 147 components from 29 distinct parts.

Its main chip is the RaspberryPi_Pico, from the RP2040/RP2350 family. Other key parts include the TPS22992SRXNR, R7FA4M1AB3CFL#AA0, TXU0202DCUR, TMUX1574PWR and PAC1954x-x4MX. By type, the board carries 65 capacitors, 27 resistors, 21 ICs, 20 connectors, 4 transistors and 4 crystals.

It belongs with the usb & debug tools designs in this gallery.

From the project

A KiCad hardware project for a multi-channel DUT (Device Under Test) hub with integrated JTAG multiplexing, power management, and Raspberry Pi Pico control interface.

- 4-channel DUT interface with individual power control via TPS22992 - JTAG multiplexer for debug access to multiple targets - Power monitoring using PAC1954 for per-channel current/voltage measurement - Raspberry Pi Pico for control logic and automation - USB interface through Pi Pico USB-CDC for host communication (1 port for each DUT)

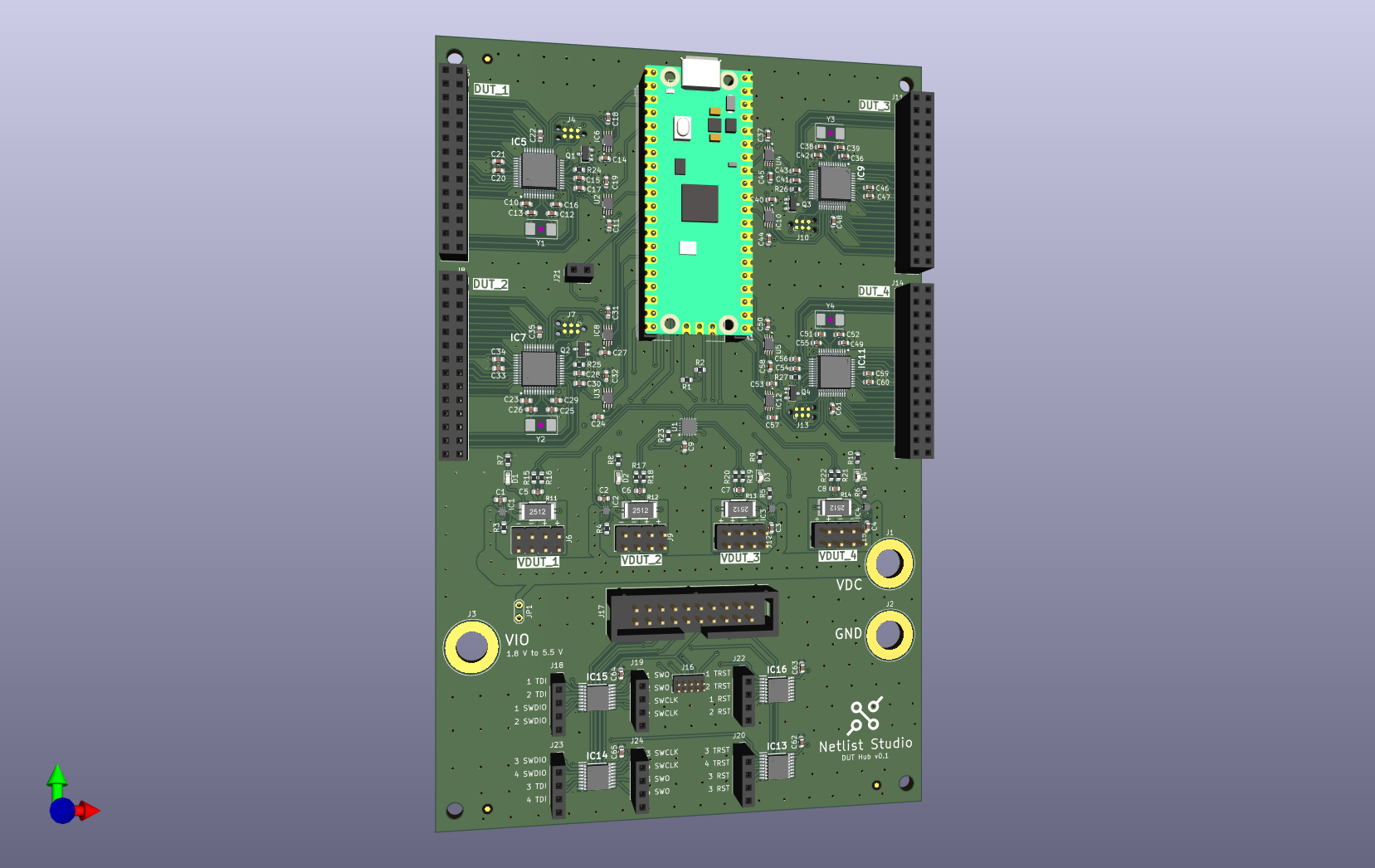

Dut hub hw, from the project README — From the project README

Main components on the Dut hub hw

TPS22992SRXNR R7FA4M1AB3CFL#AA0 TXU0202DCUR TMUX1574PWR PAC1954x-x4MX TXU0102QDCURQ1 RaspberryPi_Pico

Dut hub hw bill of materials (BOM)

147 components, 29 distinct parts.

Qty	Part	Footprint	Refs
4	TPS22992SRXNR	TPS22992SRXNR	IC1, IC2, IC3, IC4
4	R7FA4M1AB3CFL#AA0	QFP50P900X900X170-48N	IC5, IC7, IC9, IC11
4	TXU0202DCUR	SOP50P310X90-8N	IC6, IC8, IC10, IC12
4	TMUX1574PWR	SOP65P640X120-16N	IC13, IC14, IC15, IC16
1	PAC1954x-x4MX	VQFN-16-1EP_3x3mm_P0.5mm_EP1.1x1.1mm	U1
4	TXU0102QDCURQ1	SOP50P310X90-8N	U2, U3, U4, U5
1	RaspberryPi_Pico	RaspberryPi_Pico_Common_THT	A1
4	BSS138	SOT-23	Q1, Q2, Q3, Q4
4	Crystal_Small	Crystal_SMD_Abracon_ABM3-2Pin_5.0x3.2mm	Y1, Y2, Y3, Y4
3	Conn_01x01_Pin	Banana_Jack_1Pin	J1, J2, J3
4	Conn_02x14_Odd_Even	PinSocket_2x14_P2.54mm_Vertical	J5, J8, J11, J14
4	Conn_02x04_Odd_Even	PinHeader_2x04_P2.54mm_Vertical	J6, J9, J12, J15
1	Conn_ARM_JTAG_SWD_10	PinHeader_2x05_P1.27mm_Vertical	J16
1	Conn_ARM_JTAG_SWD_20	IDC-Header_2x10_P2.54mm_Vertical	J17
6	Conn_01x04_Socket	PinSocket_1x04_P2.54mm_Vertical	J18, J19, J20, J22, J23, J24
1	Conn_01x02_Socket	PinSocket_1x02_P2.54mm_Vertical	J21
1	Jumper_2_Open	TestPoint_2Pads_Pitch2.54mm_Drill0.8mm	JP1
4	LED	LED_0603_1608Metric	D1, D2, D3, D4
4	4.7nF	C_0603_1608Metric	C1, C2, C3, C4
41	0.1uF	C_0603_1608Metric	C5, C6, C7, C8, C9, C11, C14, C15 +33

Show 9 more

Qty	Part	Footprint	Refs
8	27pF	C_0603_1608Metric	C10, C12, C23, C25, C36, C38, C49, C51
4	4.7uF	C_0603_1608Metric	C13, C26, C39, C52
8	1uF	C_0603_1608Metric	C20, C21, C33, C34, C46, C47, C59, C60
2	4.7k	R_0603_1608Metric	R1, R2
4	120	R_0603_1608Metric	R3, R4, R5, R6
4	1k	R_0603_1608Metric	R7, R8, R9, R10
4	R_Shunt	RES_C_2512_SHUNT	R11, R12, R13, R14
8	0	R_0603_1608Metric	R15, R16, R17, R18, R19, R20, R21, R22
5	10k	R_0603_1608Metric	R23, R24, R25, R26, R27

Dut hub hw design files

The KiCad project lives in the Netlist-Studio/dut_hub_hw repository on GitHub; these links point at the commit this page was built from.

Layoutdut_hub.kicad_pcb
Schematicdut_hub.kicad_sch

Dut hub hw: common questions

What microcontroller does the Dut hub hw use?

The Dut hub hw is built around the RaspberryPi_Pico, from the RP2040/RP2350 family.

How big is the Dut hub hw PCB?

The Dut hub hw measures 100 × 155 mm, has 4 copper layers and is 2.218 mm thick.

How many components are on the Dut hub hw?

147 components, from 29 distinct parts. The full bill of materials is listed on this page.

Where can I download the Dut hub hw design files?

From the Netlist-Studio/dut_hub_hw repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Dut hub hw design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which Netlist-Studio chose for the repository.
