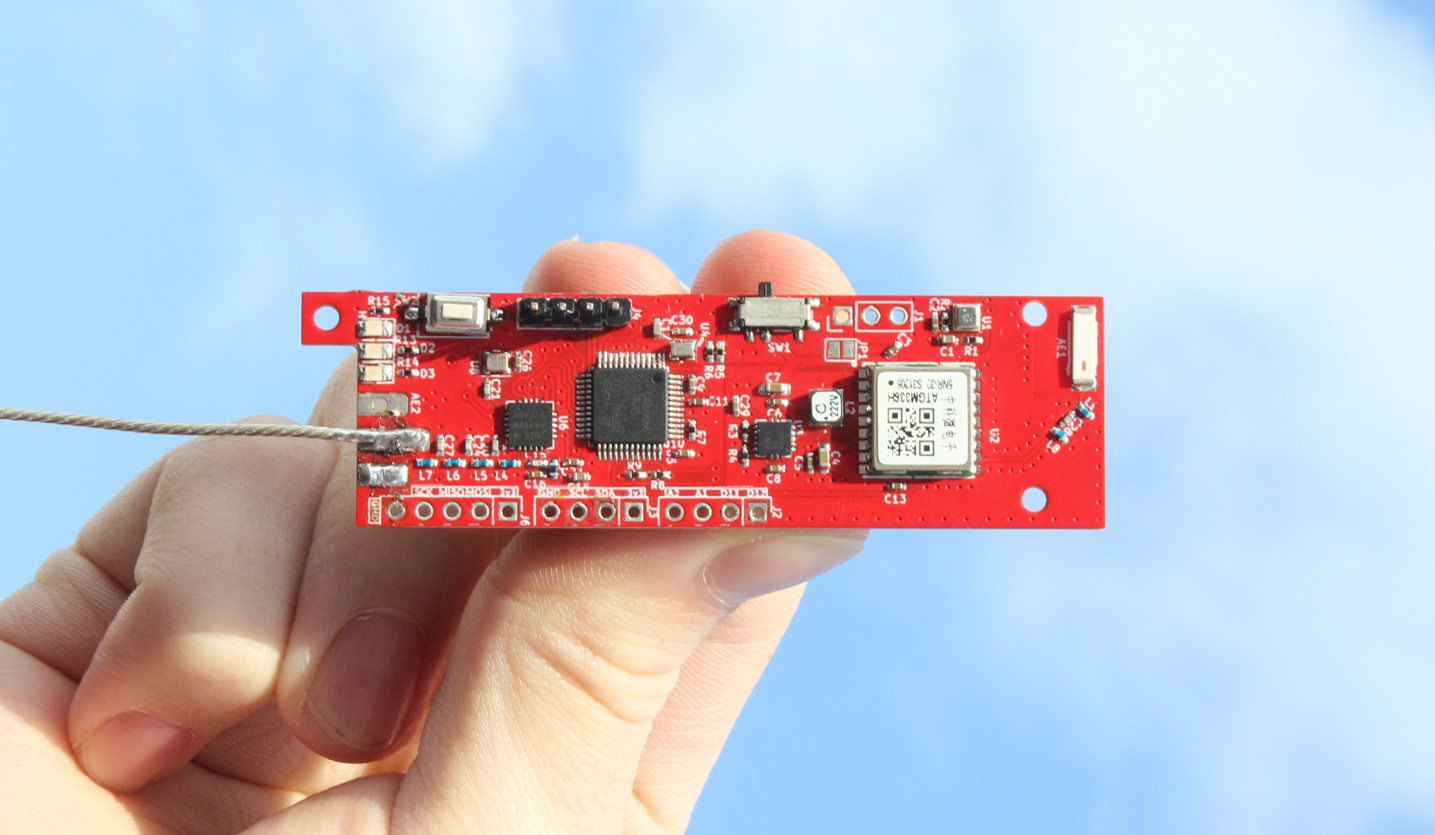

About the Tiny4FSK PCB
Tiny4FSK is an open source Microchip SAM PCB design by New-England-Weather-Balloon-Society, published on GitHub under the CERN-OHL-W-2.0 license. It is a 4-layer board measuring 35.1 × 76.3 mm, with 80 components from 52 distinct parts.
Its main chip is the ATSAMD21G18A-AUT, from the Microchip SAM family. Other key parts include the BME280, ATGM336H-5NR32, TPS61200DRCR, ECS-327TXO-2012-33 and SI4063-C2A-GMR. By type, the board carries 30 capacitors, 15 resistors, 9 connectors, 9 inductors, 8 ICs and 3 diodes.
It belongs with the rf & radio, sensors and power & battery designs in this gallery.
From the project
Horus Binary v2 HAB Tracker
NEW - Horus Binary v3! + quick lock mode and recovery mode
- Microcontroller - SAMD21G18A. A modern Cortex-M0+ microcontroller by Microchip. - TX Module - Si4063. A transceiver from Silicon Labs, similar to the Si4032 on RS41 radiosondes. - GPS RX Module - ATGM336H. A cheap, high-performance GPS module from ZHONGKEWEI. - Environmental Sensor - BME280. A proven sensor from Bosch for measuring temperature, pressure, and humidity. - Boost Converter - TPS61200. Boosts 1.5V battery level to 3.3V for the rest of the board from Texas Instruments. - LDO Step-Down - MCP1700. A step-down converter…

Main components on the Tiny4FSK
Tiny4FSK bill of materials (BOM)
80 components, 52 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | BME280 | Bosch_LGA-8_2.5x2.5mm_P0.65mm_ClockwisePinNumbering | U1 |
| 1 | ATGM336H-5NR32 ATGM336H | ATGM336H | U2 |
| 1 | TPS61200DRCR TPS61200DRC | Texas_S-PVSON-N10_ThermalVias | U3 |
| 1 | ECS-327TXO-2012-33 ECS-327TXO-2012 | Crystal_SMD_3225-4Pin_3.2x2.5mm | U4 |
| 1 | ATSAMD21G18A-AUT ATSAMD21G18A-A | TQFP-48_7x7mm_P0.5mm | U5 |
| 1 | SI4063-C2A-GMR SI4063 | QFN-20-1EP_4x4mm_P0.5mm_EP2.5x2.5mm_ThermalVias | U6 |
| 1 | MCP1700T-3302E/MB Linear Step-Down | MCP1700 | U7 |
| 1 | ECS-TXO-20CSMV4-260-AN ~ | ECS-TXO-20CSMV4 | U8 |
| 1 | Power Ext | PinHeader_1x03_P2.54mm_Vertical | J1 |
| 1 | GPIO | PinHeader_1x09_P2.54mm_Vertical | J2 |
| 1 | I2C | PinHeader_1x04_P2.54mm_Vertical | J3 |
| 1 | USB | PinHeader_1x04_P2.54mm_Vertical | J4 |
| 1 | USB Breakout | PinHeader_1x04_P2.54mm_Vertical | J5 |
| 1 | SPI | PinHeader_1x05_P2.54mm_Vertical | J6 |
| 1 | USB4105-GF-A-120 USBC | USB_C_Receptacle_GCT_USB4105-xx-A_16P_TopMnt_Horizontal | J7 |
| 1 | SWD | PinHeader_2x05_P1.27mm_Vertical_SMD | J8 |
| 1 | Counterpoise | PinHeader_1x01_P2.54mm_Vertical | J9 |
| 1 | 1575AT43A0040001E 1575AT43A0040 | ANT_1575AT_JOT | AE1 |
| 1 | TX Antenna | Antenna_Whip | AE2 |
| 1 | BK-53 | BAT_53 | BT1 |
Show 32 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Switch EN | SolderJumper-2_P1.3mm_Open_Pad1.0x1.5mm | JP1 |
| 1 | PCM12SMTR Power Switch | SW_SPDT_PCM12 | SW1 |
| 1 | RST | SW_Tactile_SPST_NO_Straight_CK_PTS636Sx25SMTRLFS | SW2 |
| 1 | B1701UYG-20D000114U1930 Success | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D1 |
| 1 | B1701USD-20D000114U1930 Error | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D2 |
| 1 | B1701USD-20D000114U1930 Power | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D3 |
| 1 | BLM18AG121SN1D | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | FB1 |
| 2 | LQW15AN3N9C00D 3.9 nH | L_0402_1005Metric_Pad0.77x0.64mm_HandSolder | L1, L8 |
| 1 | LPS3015-222MRC 2.2uH | LPS3015222MRB | L2 |
| 1 | LQW15AWR22J80D 220 nH | L_0402_1005Metric_Pad0.77x0.64mm_HandSolder | L3 |
| 4 | LQW15AN14NG80D 14 nH | L_0402_1005Metric_Pad0.77x0.64mm_HandSolder | L4, L5, L6, L7 |
| 2 | GRM155R60J106ME05D 10uF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C1, C14 |
| 5 | GRM155R70J105KA12D 1uF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C2, C3, C11, C18, C22 |
| 1 | GRM188R60G226MEA0D 22uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C4 |
| 7 | GRM155R71C104KA88J 100nF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C5, C8, C9, C13, C16, C23, C29 |
| 6 | GRM155R71C104KA88J 100 nF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C6, C10, C17, C25, C26, C30 |
| 1 | GRM188R60J106KE47D 10 uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C7 |
| 1 | GRM155R60J106ME05D 10 uF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C12 |
| 1 | GJM1555C1H9R1WB01D 9.1 pF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C15 |
| 1 | GCM155R71E472KA37D 4.7 nF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C19 |
| 1 | GJM1555C1H8R0WB01D 8 pF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C20 |
| 1 | GRM1555C1H101JA01D 100 pF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C21 |
| 1 | GJM1555C1H6R0WB01D 6 pF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C24 |
| 1 | GJM1555C1H5R0WB01D 5 pF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C27 |
| 1 | GRM1555C1H1R5WA01D 2.7pF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C28 |
| 2 | RC1005F103CS 10k | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R1, R2 |
| 4 | RC0402FR-071ML 1M | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R3, R5, R6, R11 |
| 1 | RC0402JR-07180KL 180k | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R4 |
| 1 | PFR05S-221-FNH 220 | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R7 |
| 2 | RC0402FR-071ML 1.8k | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R8, R9 |
| 2 | ERJ-2RKF1501X 5k1 | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R10, R12 |
| 3 | RC0402FR-07330RL 330 | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R13, R14, R15 |
Tiny4FSK design files
The KiCad project lives in the New-England-Weather-Balloon-Society/Tiny4FSK repository on GitHub; these links point at the commit this page was built from.
Tiny4FSK: common questions
What microcontroller does the Tiny4FSK use?
The Tiny4FSK is built around the ATSAMD21G18A-AUT, from the Microchip SAM family.
How big is the Tiny4FSK PCB?
The Tiny4FSK measures 35.1 × 76.3 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Tiny4FSK?
80 components, from 52 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Tiny4FSK design files?
From the New-England-Weather-Balloon-Society/Tiny4FSK repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Tiny4FSK design in my own project?
Yes, under the terms of its CERN-OHL-W-2.0 license, which New-England-Weather-Balloon-Society chose for the repository.
Can I test firmware for the Tiny4FSK without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Microchip SAM firmware against it before you order a PCB.
