Trhw PCB layout, top view — open source RP2040/RP2350 board by nimitvijayvargee

About the Trhw PCB

Trhw is an open source RP2040/RP2350 PCB design by nimitvijayvargee, published on GitHub. It is a 2-layer board measuring 210 × 31 mm, with 55 components from 28 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the W25Q32JVSS, TPS63001, Raspberry Pi Radio Module 2 and TP4056-42-ESOP8. By type, the board carries 22 capacitors, 12 resistors, 7 diodes, 5 ICs, 3 connectors and 1 crystal.

It belongs with the iot & wireless and power & battery designs in this gallery.

From the project

This is an RP2040 ruler that implements wifi, bluetooth, BLE along with a 4MB Flash storage, LEDs, Input buttons and some cool units and lengths!

This is an RP2040 ruler that implements wifi, bluetooth, BLE along with a 4MB Flash storage, LEDs, Input buttons and some cool units and lengths!

The production files for JLCPCB are included in PCB/production

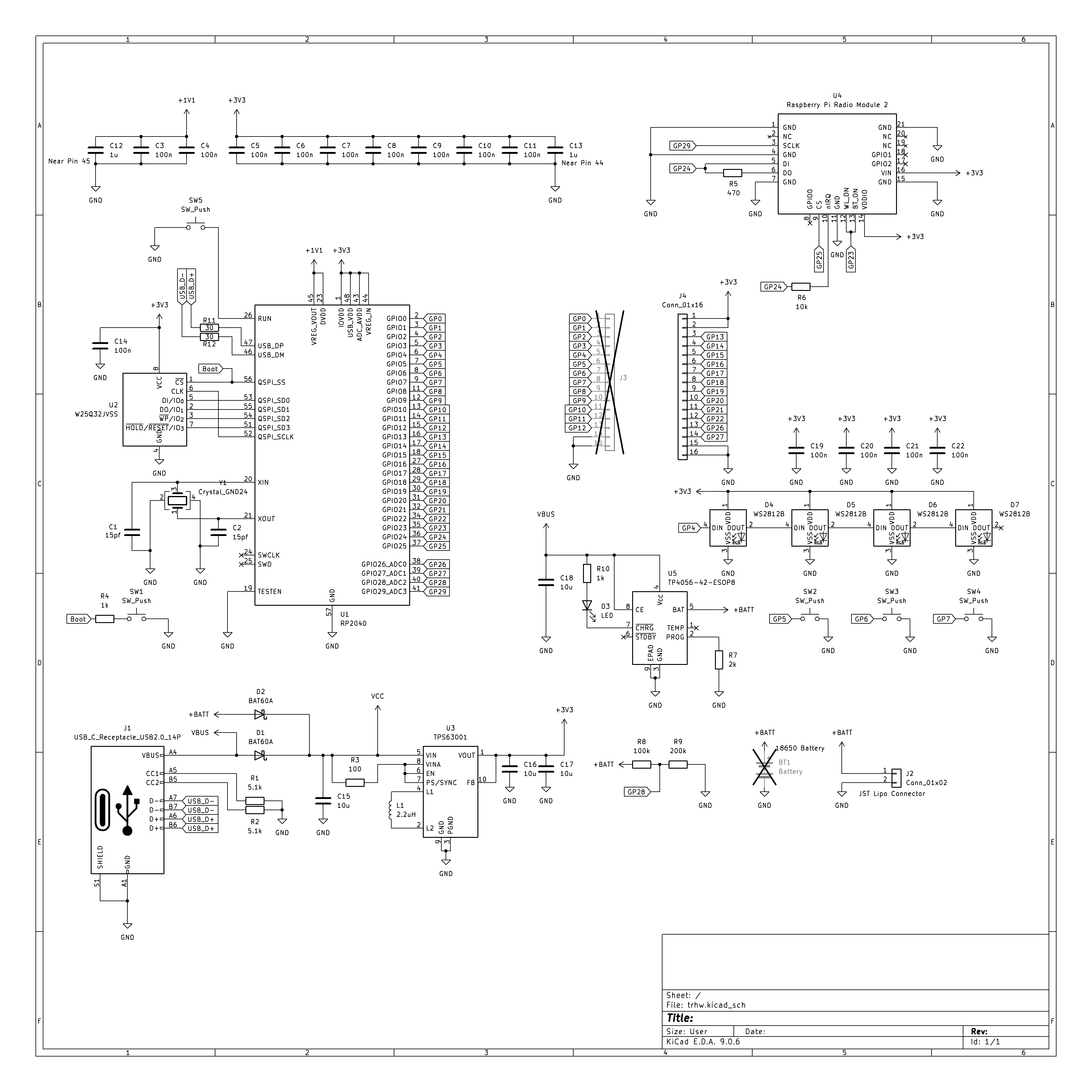

Trhw, from the project README
From the project README

Main components on the Trhw

RP2040W25Q32JVSSTPS63001Raspberry Pi Radio Module 2TP4056-42-ESOP8

Trhw bill of materials (BOM)

55 components, 28 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
RP2040
U1
1
W25Q32JVSS
U2
1
TPS63001
U3
1
Raspberry Pi Radio Module 2
U4
1
TP4056-42-ESOP8
U5
1
CRYSTAL_GND24
Crystal_GND24
Y1
1
USB_C_RECEPTACLE_USB2.0_14P
USB_C_Receptacle_USB2.0_14P
J1
1
CONN_01X02
Conn_01x02
J2
1
CONN_01X16
Conn_01x16
J4
3
SW_Push
GP5, GP6, GP7
1
SW_Push
SW1
2
BAT60A
D1, D2
1
LED
D3
4
WS2812B
D4, D5, D6, D7
1
2.2UH
2.2uH
L1
2
15PF
15pf
C1, C2
14
100N
100n
C3, C4, C5, C6, C7, C8, C9, C10 +6
2
1u
C12, C13
4
10U
10u
C15, C16, C17, C18
2
5.1K
5.1k
R1, R2
Show 8 more
QtyPartRefs
1
100
R3
2
1k
R4, R10
1
470
R5
1
10K
10k
R6
1
2k
R7
1
100K
100k
R8
1
200K
200k
R9
2
30
R11, R12

Trhw design files

The KiCad project lives in the nimitvijayvargee/trhw repository on GitHub; these links point at the commit this page was built from.

Trhw: common questions

What microcontroller does the Trhw use?

The Trhw is built around the RP2040, from the RP2040/RP2350 family.

How big is the Trhw PCB?

The Trhw measures 210 × 31 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Trhw?

55 components, from 28 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Trhw design files?

From the nimitvijayvargee/trhw repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Trhw design in my own project?

The repository has no license, so all rights stay with nimitvijayvargee. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Trhw without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
