Home-Automation by using esp32 WROOM32D-pcb-

Noraiz963·Home-Automation-by-using-esp32_WROOM32D-pcb-·PCB/Home_automation.kicad_pcb

Home-Automation by using esp32 WROOM32D-pcb- layout, top view — open source ESP32 board by Noraiz963

About the Home-Automation by using esp32 WROOM32D-pcb-

Home-Automation by using esp32 WROOM32D-pcb- is an open source ESP32 PCB design by Noraiz963, published on GitHub. It is a 2-layer board measuring 88.3 × 68.8 mm, with 28 components from 17 distinct parts.

Its main chip is the ESP32-WROOM-32D, from the ESP32 family. Other key parts include the PC817, AMS1117-3.3 and HLK-PM01. By type, the board carries 8 resistors, 5 ICs, 4 diodes, 3 connectors, 2 transistors and 2 relays.

It belongs with the iot & wireless, power & battery and usb & debug tools designs in this gallery.

From the project

An ESP32-based home automation controller designed in KiCad combines an isolated AC-DC power supply, dual relay outputs, physical switch input, and UART programming header into a single board for controlling AC loads (lights, appliances, etc.) over WiFi.

A mains-powered, WiFi/Bluetooth-enabled 2-channel relay controller designed in KiCad, built around the ESP32-WROOM-32. Designed for switching mains-connected loads (lights, appliances, etc.) with manual switch override, status LEDs, and a dedicated UART header for programming and debugging.

Home automation projects need a safe, reliable way to let a microcontroller switch mains-voltage loads without exposing the low-voltage logic circuitry to mains hazards or noise. This board handles that end-to-end: an isolated AC-DC module supplies clean low-voltage power, optocouplers electrically…

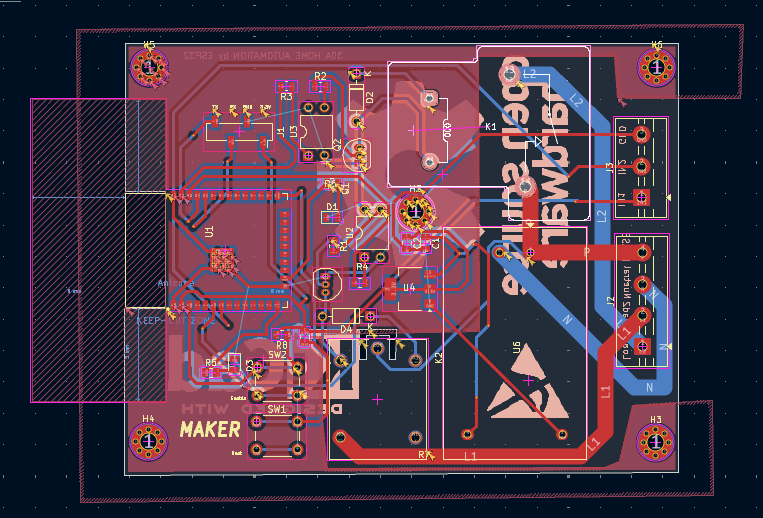

Home-Automation by using esp32 WROOM32D-pcb-, from the project README
From the project README

Main components on the Home-Automation by using esp32 WROOM32D-pcb-

ESP32-WROOM-32DPC817AMS1117-3.3HLK-PM01

Home-Automation by using esp32 WROOM32D-pcb- bill of materials (BOM)

28 components, 17 distinct parts.

QtyPartRefs
1
ESP32-WROOM-32D
U1
2
PC817
U2, U3
1
AMS1117-3.3
U4
1
HLK-PM01
U6
2
S8050
Q1, Q2
1
Conn_01x04_Socket
J1
1
Screw_Terminal_01x04
J2
1
Screw_Terminal_01x03
J3
1
RAYEX-L90AS
K1
1
PR13-5V-450-1C
K2
2
SW_Push
SW1, SW2
2
LED
D1, D3
2
1N4148
D2, D4
1
10uF
C1
1
22uF
C2
6
1k
R1, R2, R3, R4, R5, R6
2
10k
R7, R8

Home-Automation by using esp32 WROOM32D-pcb- design files

The KiCad project lives in the Noraiz963/Home-Automation-by-using-esp32_WROOM32D-pcb- repository on GitHub; these links point at the commit this page was built from.

Home-Automation by using esp32 WROOM32D-pcb-: common questions

What microcontroller does the Home-Automation by using esp32 WROOM32D-pcb- use?

The Home-Automation by using esp32 WROOM32D-pcb- is built around the ESP32-WROOM-32D, from the ESP32 family.

How big is the Home-Automation by using esp32 WROOM32D-pcb-?

The Home-Automation by using esp32 WROOM32D-pcb- measures 88.3 × 68.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Home-Automation by using esp32 WROOM32D-pcb-?

28 components, from 17 distinct parts. The full bill of materials is listed on this page.

Where can I download the Home-Automation by using esp32 WROOM32D-pcb- design files?

From the Noraiz963/Home-Automation-by-using-esp32_WROOM32D-pcb- repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Home-Automation by using esp32 WROOM32D-pcb- design in my own project?

The repository has no license, so all rights stay with Noraiz963. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Home-Automation by using esp32 WROOM32D-pcb- without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
