Flipper blackhat

o7-machinehum·flipper-blackhat·hat/nff_pcb/hardware.kicad_pcb

Flipper blackhat PCB layout, top view — open source board by o7-machinehum
Simulate this board

About the Flipper blackhat PCB

Flipper blackhat is an open source PCB design by o7-machinehum, published on GitHub under the CC-BY-NC-4.0 license. It is a 4-layer board measuring 91 × 53.1 mm, with 167 components from 58 distinct parts.

Other key parts include the ZDV4256M16A-13DPH, "Allwinner A33" or "Allwinner R16", TPS62095RGTR, AP7331-25WG-7 and RTL8723DS. By type, the board carries 94 capacitors, 40 resistors, 15 ICs, 8 connectors, 6 inductors and 2 crystals.

It belongs with the iot & wireless and usb & debug tools designs in this gallery.

From the project

Linux based WiFi pentesting device for the Flipper Zero.

The Flipper Blackhat is a Linux based Flipper addon that enables WiFi attacks. It uses an Allwinner A33, which is a quad-core SoC connected to 512MB of RAM. The board has two USB2 ports, and one USB-C, which is connected to an FTDI.

Basically... If you make boards for yourself: great, make boards for your friends: great, but please do not sell hundreds on them on Aliexpress. I'm selling boards here; the money made here goes back into this project and other similar open-source projects!

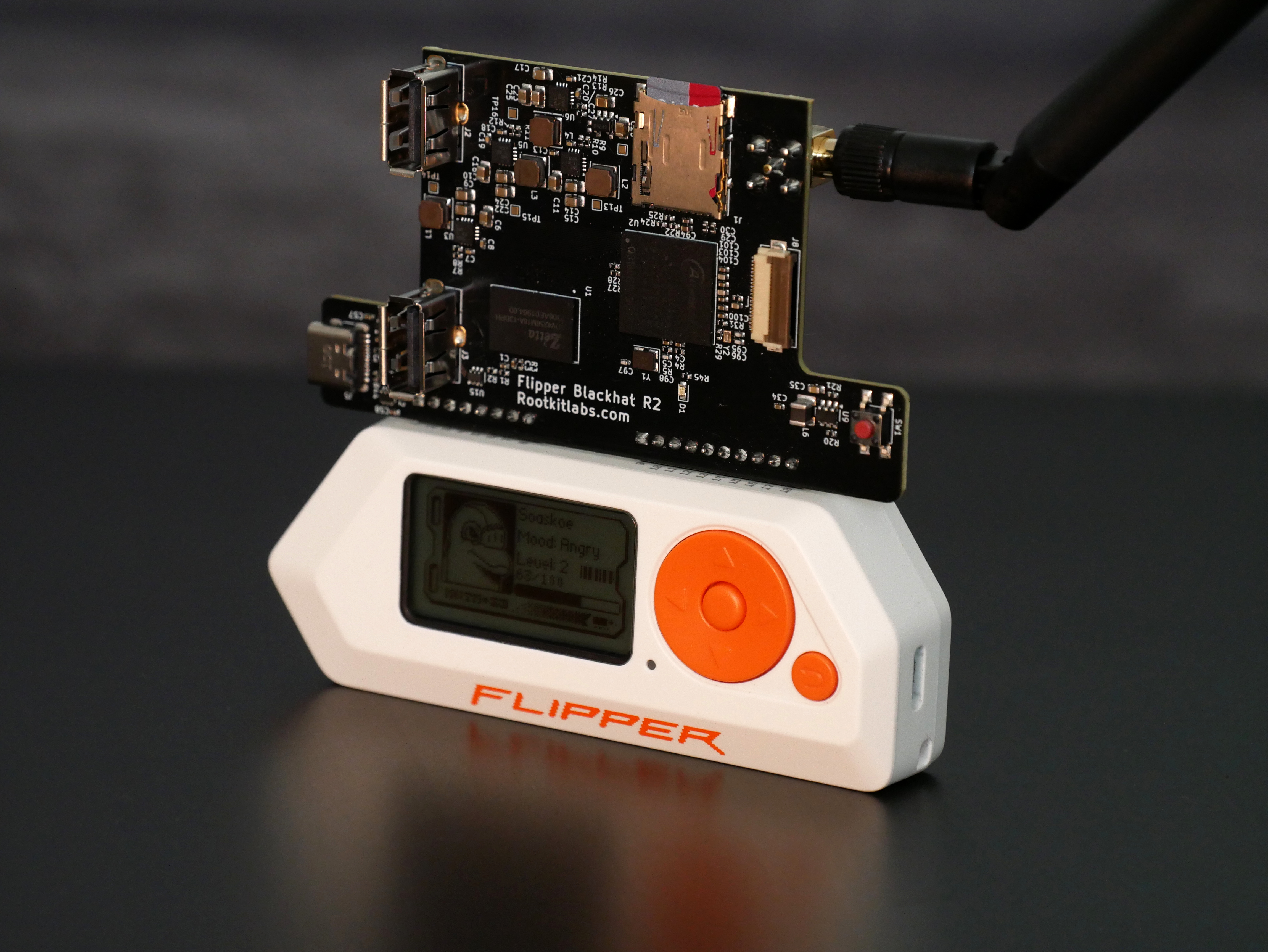

Flipper blackhat, from the project README
From the project README

Main components on the Flipper blackhat

ZDV4256M16A-13DPH"Allwinner A33" or "Allwinner R16"TPS62095RGTRAP7331-25WG-7RTL8723DSAP3036BKTR-G1CH340CLM66100DCKRSN74LVC1G08DCKRNUP2202W1T2G

Flipper blackhat bill of materials (BOM)

167 components, 58 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ZDV4256M16A-13DPH
AS4C512M16D3L-12BIN
U1
1
"Allwinner A33" or "Allwinner R16"
A33
U2
4
TPS62095RGTR
U3, U4, U5, U6
1
AP7331-25WG-7
AP131-25
U7
1
RTL8723DS
U8
1
AP3036BKTR-G1
AP3036B
U9
1
CH340C
U10
2
LM66100DCKR
LM66100DCK
U11, U12
1
SN74LVC1G08DCKR
74LVC1G08
U13
2
NUP2202W1T2G
NUP2202
U14, U15
1
ABM8G-24.000MHZ-18-D2Y-T
24Mhz
Y1
1
ABS05-32.768KHZ-9-T
32.768khz
Y2
1
DM3AT-SF-PEJM5
Micro_SD_Card_Det_Hirose_DM3AT
J1
2
1050570001
USB_A
J2, J3
1
PH1RB-08-UA
Conn_01x08_Pin
J4
1
USB4105-GF-A-120
USB_C_Receptacle_USB2.0_16P
J5
1
PH1RB-10-UA
Conn_01x10_Pin
J6
1
SMA-KWE901
Conn_Coaxial
J7
1
FH12-20S-0.5SH(55)
Conn_01x20_MountingPin
J8
1
TL3305AF260QG
SW_Push
SW1
Show 38 more
QtyPartRefs
1
LTST-C193TGKT-5A
Green
D1
4
SNH.4020.TYB1R0MT00
1uH
L1, L2, L3, L4
1
BLM18KG121TN1D
120R@100MHz
L5
1
CBC3225T220MR
22uH
L6
45
CC0402KRX7R7BB104
100nF
C1, C2, C3, C4, C5, C27, C30, C31 +37
12
CL21A226MQQNNNE
22uF
C6, C9, C10, C11, C14, C15, C16, C17 +4
4
CL05B103KB5NNNC
10nF
C7, C12, C18, C20
2
CL05B471KB5NNNC
470pF
C8, C13
2
CC0402KRX7R9BB562
5nF
C19, C21
2
GRM21BR70J106KE76L
10uF
C26, C28
4
CL05A106MQ5NUNC
10uF
C29, C99, C102, C103
5
CL05A105KO5NNNC
1uF
C34, C49, C50, C60, C101
1
CC0603KRX7R7BB224
0.22uF
C35
4
LMK107BBJ106MALT
10uF
C41, C45, C46, C47
9
GRM158R60J226ME01D
22uF
C53, C54, C55, C56, C61, C62, C69, C70 +1
2
CC0402JRNPO9BN100
10pF
C95, C96
2
CC0402JRNPO9BN300
30pF
C97, C98
4
4-1879208-9
1k
R1, R2, R4, R5
2
0402WGF2400TCE
240R
R3, R6
1
RTT024703FTH
470k
R7
1
RC0402FR-07150KL
150k
R8
1
RC0402FR-07330KL
330k
R9
1
RTT021203FTH
120k
R10
1
RTT021103FTH
110k
R11
1
0402WGF1603TCE
160k
R12
1
0402WGF8202TCE
82k
R13
1
ERJPA2F2203X
220k
R14
7
RC0402FR-13100KL
100k
R15, R23, R24, R25, R37, R41, R42
1
RC0402JR-075R1L
5R1
R20
4
RC0402JR-0710KL
10k
R21, R22, R30, R39
1
RC0402JR-070RL
0R
R26
2
RC0402JR-0722RL
22R
R27, R28
2
0402WGJ0106TCE
10M
R29, R31
1
RC0402FR-07200KL
200k
R32
3
RC0402JR-071KL
1k
R33, R36, R45
1
RC0402FR-070RL
0R
R35
2
RC0402FR-135K6L
5.6k
R43, R44
2
4D02WGJ0103TCE
10k
RN1, RN2

Flipper blackhat design files

The KiCad project lives in the o7-machinehum/flipper-blackhat repository on GitHub; these links point at the commit this page was built from.

Flipper blackhat: common questions

How big is the Flipper blackhat PCB?

The Flipper blackhat measures 91 × 53.1 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Flipper blackhat?

167 components, from 58 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Flipper blackhat design files?

From the o7-machinehum/flipper-blackhat repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Flipper blackhat design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
