Pa driver

OE9SAU·SAUBerry9·Radioberry-I-O-Interface-master/pa driver/pa-driver.kicad_pcb

Pa driver PCB layout, top view — open source board by OE9SAU
Simulate this board

About the Pa driver PCB

Pa driver is an open source PCB design by OE9SAU, published on GitHub. It is a 2-layer board measuring 54.6 × 34.3 mm, with 10 components from 8 distinct parts.

By type, the board carries 4 resistors, 3 capacitors, 1 transistor, 1 connector and 1 transformer.

It belongs with the rf & radio designs in this gallery.

From the project

SDR TRX from Radioberry

Radioberry project https://github.com/pa3gsb/Radioberry-2.x

This allow to amplify the RPI4 radioberry version TX output, to suitable level for 10W QRP Labs Linear Power Amplifier.

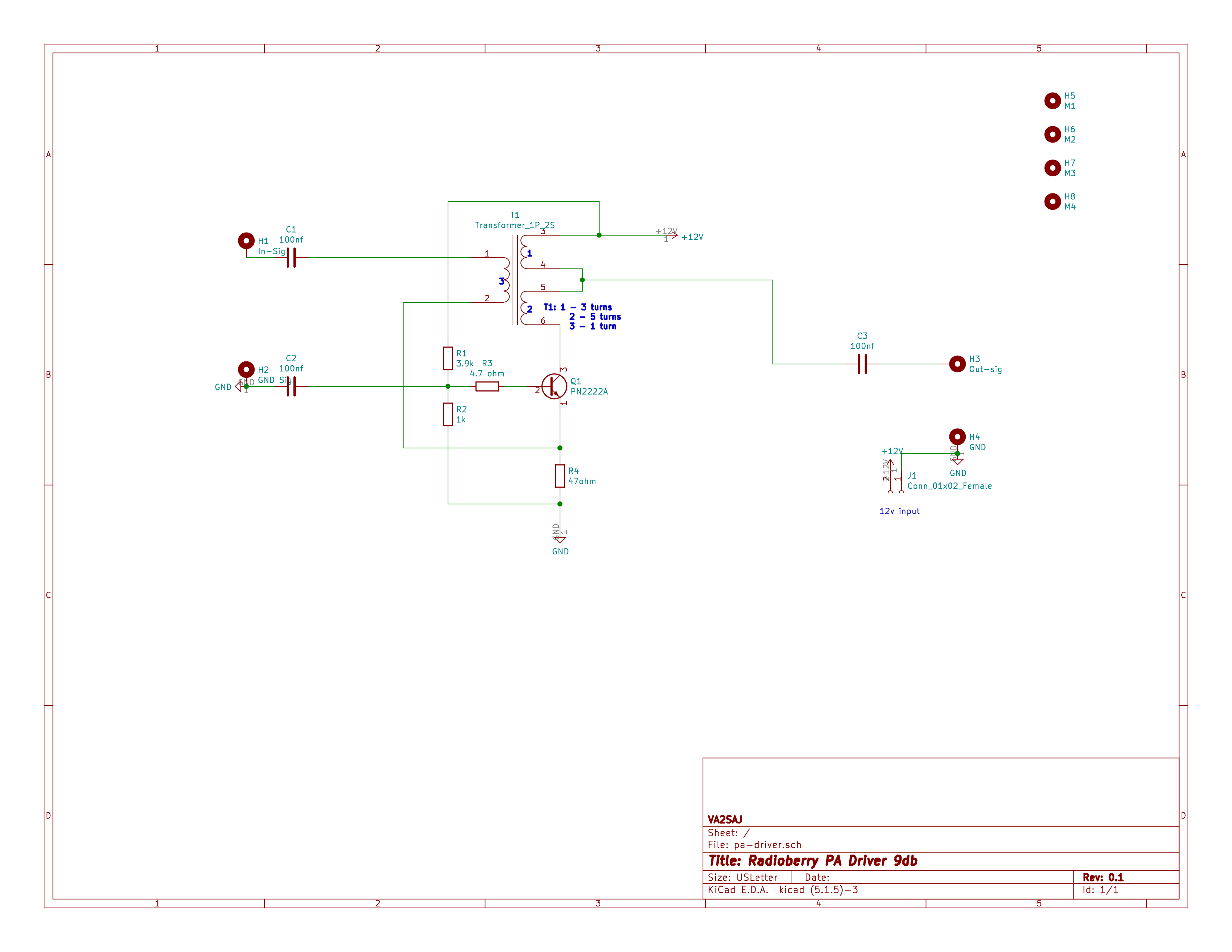

Pa driver, from the project README
From the project README

Pa driver bill of materials (BOM)

10 components, 8 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
PN2222A
Q1
1
Power Connector
J1
1
Transformer_1P_2S
T1
3
100nf
C1, C2, C3
1
3.9k
R1
1
1k
R2
1
4.7 ohm
R3
1
47ohm
R4
