Filter shield

OE9SAU·SAUBerry9·Radioberry-I-O-Interface-master/hardware/filter shield.kicad_pcb

Filter shield layout, top view — open source AVR/Arduino board by OE9SAU

About the Filter shield

Filter shield is an open source AVR/Arduino PCB design by OE9SAU, published on GitHub. It is a 2-layer board measuring 101.6 × 53.4 mm, with 27 components from 13 distinct parts.

Its main chip is the Arduino_Nano_v3.x, from the AVR/Arduino family. Other key parts include the BOB-12009. By type, the board carries 13 connectors, 6 transistors, 6 resistors, 1 IC and 1 module.

It belongs with the rf & radio and dev boards & breakouts designs in this gallery.

From the project

SDR TRX from Radioberry

Radioberry project https://github.com/pa3gsb/Radioberry-2.x

This project interface LPF, HPF and T/R Switch to the radiobery I/O over i2c. The logic is arduino nano v3 based microcontroller.

Band pass filters module supported: https://www.ebay.ca/itm/HF-BPF-band-pass-filter-RTL-SDR-HERMES-ODYSSEY-HiQSDR-Red-Pitaya-transceiver/332074659425?ssPageName=STRK%3AMEBIDX%3AIT&_trksid=p2057872.m2749.l2649

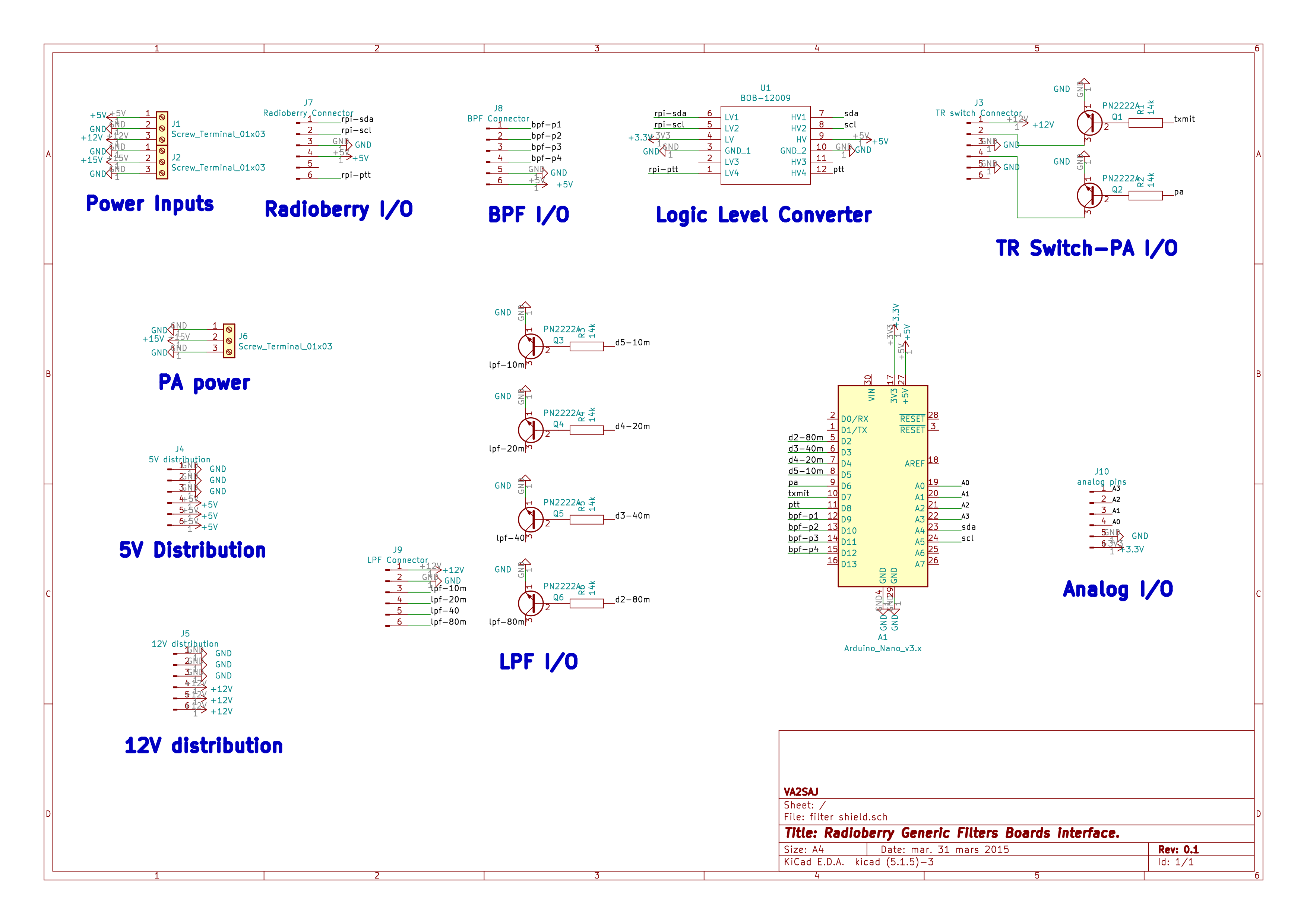

Filter shield, from the project README
From the project README

Main components on the Filter shield

BOB-12009Arduino_Nano_v3.x

Filter shield bill of materials (BOM)

27 components, 13 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
BOB-12009
U1
1
Arduino_Nano_v3.x
A1
6
PN2222A
Q1, Q2, Q3, Q4, Q5, Q6
3
Screw_Terminal_01x03
J1, J2, J6
1
TR switch Connector
J3
1
5V distribution
J4
1
12V distribution
J5
1
Radioberry Connector
J7
1
BPF Connector
J8
1
LPF Connector
J9
1
analog pins
J10
3
CONN_01X01
P8, P10, P13
6
14k
R1, R2, R3, R4, R5, R6

Filter shield design files

The KiCad project lives in the OE9SAU/SAUBerry9 repository on GitHub; these links point at the commit this page was built from.

Filter shield: common questions

What microcontroller does the Filter shield use?

The Filter shield is built around the Arduino_Nano_v3.x, from the AVR/Arduino family.

How big is the Filter shield?

The Filter shield measures 101.6 × 53.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Filter shield?

27 components, from 13 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Filter shield design files?

From the OE9SAU/SAUBerry9 repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Filter shield design in my own project?

The repository has no license, so all rights stay with OE9SAU. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Filter shield without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
