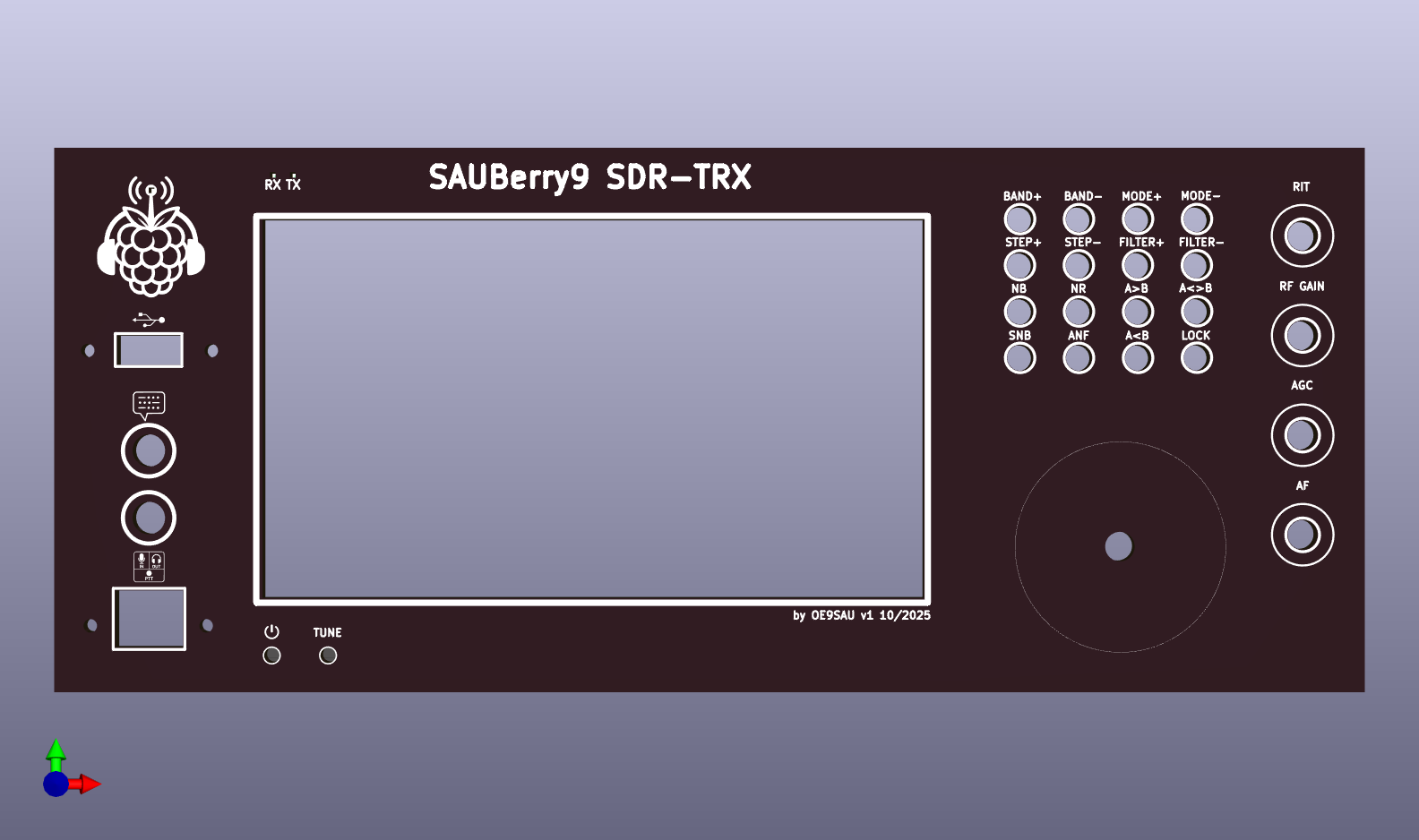

SAUBerry front v1.1
OE9SAU·SAUBerry9·housing/SAUBerry_front_v1.1/SAUBerry_front_v1.1.kicad_pcb
About the SAUBerry front v1.1 PCB
SAUBerry front v1.1 is an open source PCB design by OE9SAU, published on GitHub. It is a 2-layer board measuring 311.2 × 129.3 mm, with 29 components from 22 distinct parts.
Other key parts include the SN74AHC1G04DBVR. By type, the board carries 12 resistors, 7 diodes, 6 switches, 2 connectors, 1 IC and 1 capacitor.
It belongs with the rf & radio designs in this gallery, and the repository also holds 1 earlier revision of it.
From the project
SDR TRX from Radioberry

Main components on the SAUBerry front v1.1
SAUBerry front v1.1 bill of materials (BOM)
29 components, 22 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SN74AHC1G04DBVR | SOT95P280X145-5N | U1 |
| 2 | S6B-XH-SM4-TB | CONN_S6B-XH-SM4-TB_JST | J1, J2 |
| 1 | POWER | SW_SPST_Omron_B3FS-101xP | SW1 |
| 1 | TUNE | SW_SPST_Omron_B3FS-101xP | SW2 |
| 1 | ANT 1/2 | SW_SPST_Omron_B3FS-101xP | SW3 |
| 1 | M1 | SW_SPST_Omron_B3FS-101xP | SW4 |
| 1 | M2 | SW_SPST_Omron_B3FS-101xP | SW5 |
| 1 | M3 | SW_SPST_Omron_B3FS-101xP | SW6 |
| 1 | LED PWR PINK | LED_0805_2012Metric | D1 |
| 1 | LED TX Rot | LED_0805_2012Metric | D2 |
| 1 | LED RX Grün | LED_0805_2012Metric | D3 |
| 1 | LED ANT | LED_0805_2012Metric | D4 |
| 1 | LED M1 | LED_0805_2012Metric | D5 |
| 1 | LED M2 | LED_0805_2012Metric | D6 |
| 1 | LED M3 | LED_0805_2012Metric | D7 |
| 1 | 100nF | C_0805_2012Metric | C1 |
| 7 | 10k | R_0805_2012Metric | R1, R3, R4, R9, R10, R11, R12 |
| 1 | 5k | R_0805_2012Metric | R2 |
| 1 | 1.1k | R_0805_2012Metric | R5 |
| 1 | 6.8k | R_0805_2012Metric | R6 |
Show 2 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 22k | R_0805_2012Metric | R7 |
| 1 | 91k | R_0805_2012Metric | R8 |
SAUBerry front v1.1 design files
The KiCad project lives in the OE9SAU/SAUBerry9 repository on GitHub; these links point at the commit this page was built from.
SAUBerry front v1.1: common questions
How big is the SAUBerry front v1.1 PCB?
The SAUBerry front v1.1 measures 311.2 × 129.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the SAUBerry front v1.1?
29 components, from 22 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the SAUBerry front v1.1 design files?
From the OE9SAU/SAUBerry9 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the SAUBerry front v1.1 design in my own project?
The repository has no license, so all rights stay with OE9SAU. Use it as a reference, and ask the author before reusing the design.
