HardLabs

Radioberry

OE9SAU·SAUBerry9·Radioberry-2.x-master/hardware/radio/Radioberry.kicad_pcb

Radioberry PCB layout, top view — open source FPGA board by OE9SAU
Simulate this board

About the Radioberry PCB

Radioberry is an open source FPGA PCB design by OE9SAU, published on GitHub. It is a 4-layer board measuring 65 × 56 mm, with 143 components from 32 distinct parts.

Its main chip is the FPGA, from the FPGA family. Other key parts include the LD1117S25, LD1117S33, LD1117S12 and AD9866. By type, the board carries 97 capacitors, 16 inductors, 10 resistors, 6 ICs, 3 crystals and 2 connectors.

It belongs with the rf & radio designs in this gallery.

From the project

SDR TRX from Radioberry

RadioBerry V2.0 - Ham radio cape for Raspberry PI ==============================================

- Building a HAM Radio - Learning (from noob to guru)

WIKI FOR MORE DETAILS: https://github.com/pa3gsb/Radioberry-2.x/wiki

- Raspberry PI - Radio extension board (cape) - using AD9866 (12 bit) for RX and TX modes.

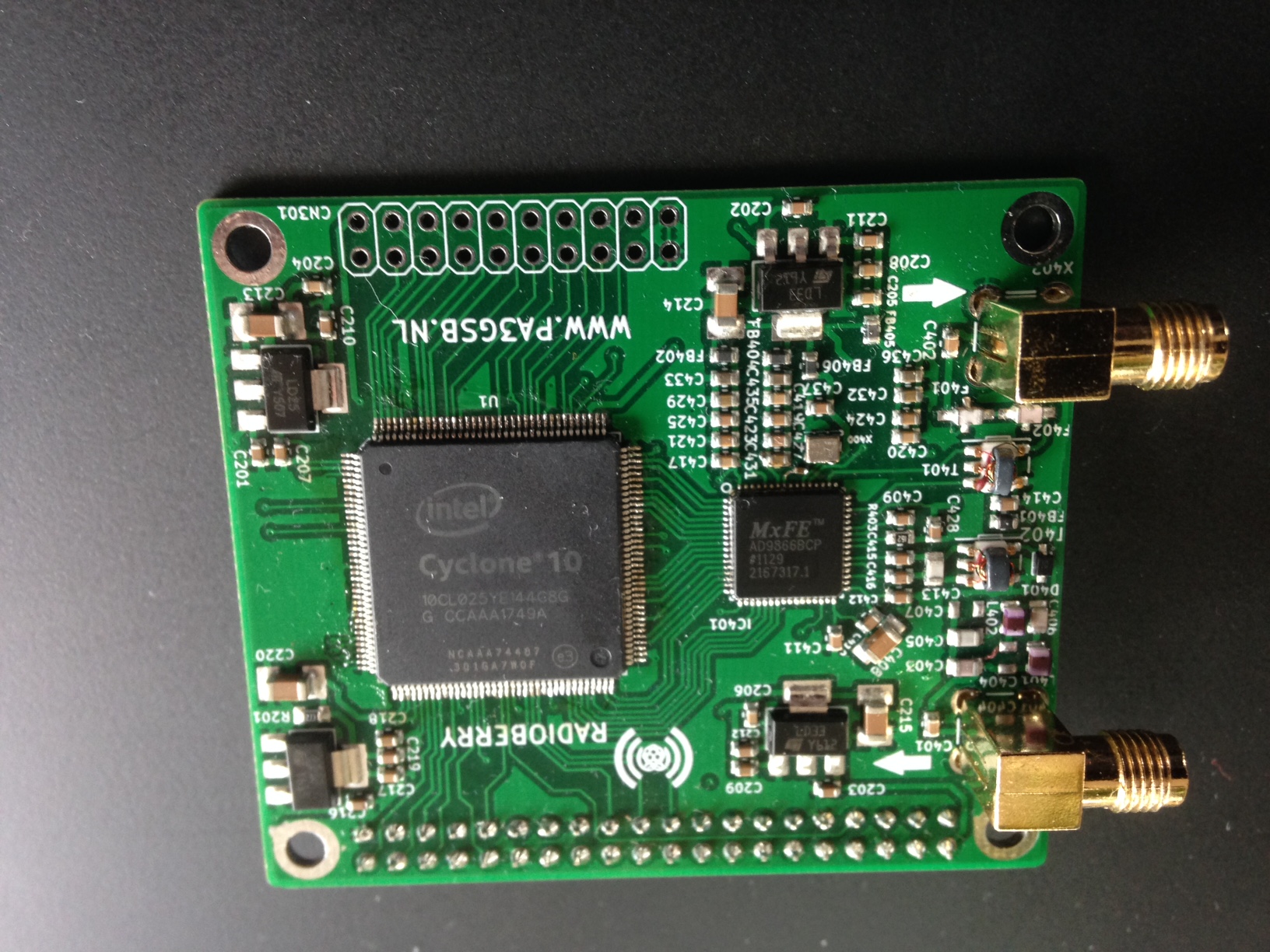

Radioberry, from the project README
From the project README

Main components on the Radioberry

LD1117S25LD1117S33LD1117S12AD9866FPGA

Radioberry bill of materials (BOM)

143 components, 32 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
LD1117S25
IC201
2
LD1117S33
IC202, IC203
1
LD1117S12
IC204
1
AD9866
IC401
1
FPGA
U1
1
TCXO
X400
2
SMA
X401, X402
1
DNI
CN301
1
PINHEAD_PINHD-2X20
CN302
2
50Mhz
F401, F402
4
DNI
MH1, MH2, MH3, MH4
1
1:1
T401
1
8:1
T402
1
TVS
D401
14
FB
FB201, FB202, FB203, FB204, FB205, FB206, FB207, FB208 +6
2
330nH
L401, L402
52
100nF
C201, C202, C203, C210, C211, C212, C216, C219 +44
8
1nF
C204, C205, C206, C217, C417, C418, C419, C420
11
10nF
C207, C208, C209, C218, C241, C242, C243, C421 +3
4
100uF
C213, C214, C215, C220
Show 12 more
QtyPartRefs
11
10uF
C221, C222, C223, C232, C238, C244, C247, C433 +3
1
100pF
C403
2
DNI
C404, C407
1
180pF
C405
1
10pF
C406
1
10uF
C408
1
8p2
C413
4
1uF
C429, C430, C431, C432
1
120R
R201
2
10K
R301, R302
6
DNI
R303, R304, R305, R306, R307, R308
1
1K6
R403

Radioberry design files

The KiCad project lives in the OE9SAU/SAUBerry9 repository on GitHub; these links point at the commit this page was built from.

Radioberry: common questions

What microcontroller does the Radioberry use?

The Radioberry is built around the FPGA, from the FPGA family.

How big is the Radioberry PCB?

The Radioberry measures 65 × 56 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Radioberry?

143 components, from 32 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Radioberry design files?

From the OE9SAU/SAUBerry9 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Radioberry design in my own project?

The repository has no license, so all rights stay with OE9SAU. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Radioberry without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug FPGA firmware against it before you order a PCB.
