Ym bard 2203

ole00·ym_bard_2203·design/ym2203.kicad_pcb

Ym bard 2203 PCB layout, top view — open source board by ole00

About the Ym bard 2203 PCB

Ym bard 2203 is an open source PCB design by ole00, published on GitHub. It is a 2-layer board measuring 92.7 × 88.9 mm, with 62 components from 15 distinct parts.

Other key parts include the YM2203, YM3014B and LM358. By type, the board carries 26 capacitors, 22 resistors, 7 ICs, 4 connectors and 1 test point.

It belongs with the audio designs in this gallery.

From the project

A dual YM2203 sound chip board for Arduino Nano

This is an open source/open hardware sound board with two YM2203 FM sound chips driven by Arduino Nano. The YM2203 FM chips were used in several arcade game boards made in 80's. The design of the YM Bard sound board was actually based on a schematic of an arcade game.

The board allows you to experiment with YM2203 sound chips by writing the chip's register values from a PC over a serial port. It is also possible to stream an arcade game sound data over a serial port from a PC based emulator and produce authentic sound and music of an arcade game.

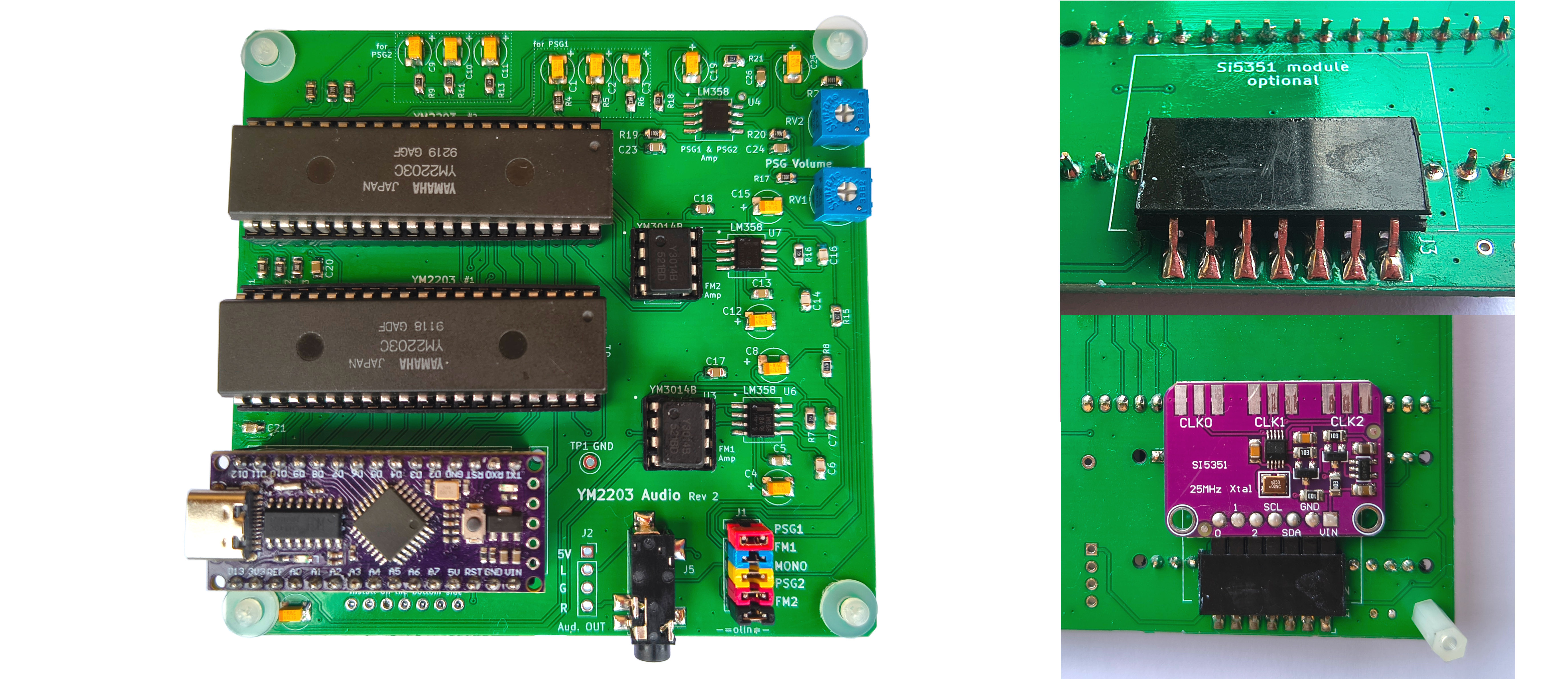

Ym bard 2203, from the project README
From the project README

Main components on the Ym bard 2203

YM2203YM3014BLM358

Ym bard 2203 bill of materials (BOM)

62 components, 15 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
YM2203
U1, U2
2
YM3014B
U3, U5
3
LM358
U4, U6, U7
1
AUD_MIX
J1
1
Aud. Ext.
J2
1
Clock gen.
J3
1
AUDIOJACK3
AudioJack3
J5
2
2k
RV1, RV2
1
TestPoint_Small
TP1
13
10UF
10u
C1, C2, C3, C4, C8, C9, C10, C11 +5
9
0.1UF
0.1uF
C5, C13, C17, C18, C20, C21, C23, C24 +1
4
1NF
1nF
C6, C7, C14, C16
8
1k
R1, R2, R3, R10, R12, R14, R17, R22
12
4K7
4k7
R4, R5, R6, R7, R8, R9, R11, R13 +4
2
10K
10k
R19, R20

Ym bard 2203 design files

The KiCad project lives in the ole00/ym_bard_2203 repository on GitHub; these links point at the commit this page was built from.

Ym bard 2203: common questions

How big is the Ym bard 2203 PCB?

The Ym bard 2203 measures 92.7 × 88.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Ym bard 2203?

62 components, from 15 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Ym bard 2203 design files?

From the ole00/ym_bard_2203 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Ym bard 2203 design in my own project?

The repository has no license, so all rights stay with ole00. Use it as a reference, and ask the author before reusing the design.
