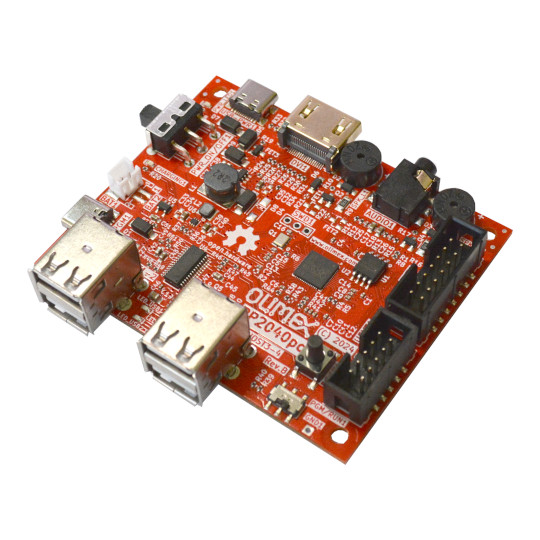

About the RP2040pc PCB
RP2040pc is an open source RP2040/RP2350 PCB design by OLIMEX, published on GitHub under the MIT license. It is a 4-layer board measuring 80 × 65 mm, with 159 components from 66 distinct parts.
Its main chip is the RP2040(QFN-56_7x7mm_P0.4mm), from the RP2040/RP2350 family. Other key parts include the W25Q128JVSIQ, CH217K(SOT23-6L), FE1.1s_USB2.0-HUB, BL4054B-42TPRN(SOT23-5) and TPS62A02ADRLR(SOT-563-6). By type, the board carries 51 resistors, 44 capacitors, 9 diodes, 7 ICs, 6 LEDs and 4 transistors.
It belongs with the displays & leds designs in this gallery.
From the project
All in one computer with RP2040 with 4 USB host HDMI display
https://www.olimex.com/Products/RaspberryPi/RP2040pc/

Main components on the RP2040pc
RP2040pc bill of materials (BOM)
159 components, 66 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | W25Q128JVSIQ | SO-8_208mil | U1 |
| 1 | RP2040(QFN-56_7x7mm_P0.4mm) | QFN56_7x7_Pitch_0.4mm | U2 |
| 1 | CH217K(SOT23-6L) | SOT23-6 | U3 |
| 1 | FE1.1s_USB2.0-HUB | SSOP28_10x4mm_Pitch_0.64mm | U4 |
| 1 | BL4054B-42TPRN(SOT23-5) | SOT-23-5 | U5 |
| 1 | TPS62A02ADRLR(SOT-563-6) | SOT-563-6 | U6 |
| 1 | MT3608(SOT23-6) | SOT23-6 | U7 |
| 2 | Q12MHz/20pF/10ppm/4P/3.2x2.5mm | TSX-3.2x2.5mm_GND(3) | Q1, Q5 |
| 2 | BC817-40(SOT23) | SOT23 | Q2, Q4 |
| 12 | TESTPAD | TESTPAD_40-ROUND | +1V1, +3.3V1, +5V1, +5V_USB1, GND2, HCEC1, HHPD1, HSCL1 +4 |
| 1 | PJ-3.5-365-5P | SCJ325P00XG0B02G | AUDIO1 |
| 1 | DW02S | LIPO_BAT_VERTICAL_DW02S | BAT1 |
| 1 | NA(PH2.0-2PWB) | PH2.0-2PWB | BAT2 |
| 1 | T1102D(6x6x9.5mm) | T1102D_6x6 | BOOT1 |
| 1 | HDMI-SWM-19 | HDMI-SWM-19_Paste | DVI1 |
| 1 | B-V-14-LF | GBH-254-SMT-14 | EXT1 |
| 2 | NA(BSS138(SOT23-3)) | SOT23 | FET1, FET2 |
| 1 | WPM2015-3/TR | SOT23 | FET3 |
| 1 | TESTPAD | TEST_PAD40x70_SQUARE | GND1 |
| 4 | Mounting_Hole_NPTH | Mounting_Hole_Drill-3.3mm_Clerance-7mm | MH1, MH2, MH3, MH4 |
Show 46 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SWITCH SLIDE IS-1390-G TR | SWITCH_SLIDE_IS-1390-G_TR | PGM/RUN1 |
| 1 | SS-12D11G5 | SS-12D11G5 | PWR_ON/OFF1 |
| 2 | Speaker_QMB-09B-03(1.5-5.0V_2.7kHz_F9.0mm*H5.5mm) | Speaker_QMB-09B-03_1-Plus_2-Minus | SPK_L1, SPK_R1 |
| 1 | NA(HN1x3) | HN1x3 | SWD1 |
| 1 | P-B-V-10-LF | GBH-254-SMT-10 | UEXT1 |
| 2 | USB-C-16P-F(A40-00119-A52-12) | USB2.0_TYPE-C(A40-00119-A52-12)_Paste | USB-PGM1, USB-PWR1 |
| 2 | USBB1-FRWH-4A(USB-Ax2) | USB_TWO_LEVEL | USB_HOST1-2, USB_HOST3-4 |
| 1 | LED/YELLOW/0603 | LED_0603_KA | CHARGING1 |
| 4 | LED/GREEN/0603 | LED_0603_KA | LED_USB1, LED_USB2, LED_USB3, LED_USB4 |
| 1 | LED/RED/0603 | LED_0603_KA | PWR_LED1 |
| 5 | 1N5822/SS34/SMA | SMA-KA | D1, D5, D7, D8, D9 |
| 2 | 1N4148W/SOD123 | SOD-123_1C-2A_KA | D2, D3 |
| 1 | NA(1N5822/SS34/SMA) | SMA-KA | D4 |
| 1 | 1N5819S4/SOD123 | SOD-123_1C-2A_KA | D6 |
| 1 | 2.2uH/3A/YS75/7x8 | YS75_7X8MM | L1 |
| 1 | 1.0uH/2.5A/DCR=30mR/20%/3.00x3.00x1.50mm/CD32(SWPA3015S1R0MT) | CD32 | L2 |
| 18 | 100nF/10V/20%/X5R/C0402 | C_0402_5MIL_DWS | C1, C2, C3, C4, C5, C6, C7, C8 +10 |
| 2 | 2.2uF/6.3V/20%/X5R/C0402 | C_0402_5MIL_DWS | C11, C12 |
| 2 | 18pF/50V/5%/C0G/C0402 | C_0402_5MIL_DWS | C15, C16 |
| 6 | 22uF/6.3V/20%/X5R/C0603 | C_0603_5MIL_DWS | C17, C18, C34, C35, C37, C39 |
| 3 | 47uF/6.3V/20%/X5R/C0805 | C_0805_5MIL_DWS | C19, C29, C30 |
| 2 | NA(47uF/6.3V/20%/X5R/C0805) | C_0805_5MIL_DWS | C27, C28 |
| 1 | 1uF/10V/10%/X5R/C0603 | C_0603_5MIL_DWS | C31 |
| 4 | NA(22uF/6.3V/20%/X5R/C0603) | C_0603_5MIL_DWS | C32, C33, C38, C40 |
| 1 | NA(120pF/50V/5%/C0G/C0402) | C_0402_5MIL_DWS | C36 |
| 3 | 10uF/6.3V/20%/X5R/C0603 | C_0603_5MIL_DWS | C42, C43, C45 |
| 2 | NA(27pF/50V/5%/C0G/C0402) | C_0402_5MIL_DWS | C47, C48 |
| 5 | 10k/R0402 | R_0402_5MIL_DWS | R1, R19, R23, R45, R46 |
| 2 | NA(10k/R0402) | R_0402_5MIL_DWS | R2, R43 |
| 4 | 5.1k/1%/R0402 | R_0402_5MIL_DWS | R3, R7, R32, R33 |
| 2 | 27R/R0402 | R_0402_5MIL_DWS | R4, R5 |
| 2 | 100R/R0402 | R_0402_5MIL_DWS | R6, R8 |
| 2 | 47R/R1206 | R_1206_5MIL_DWS | R9, R16 |
| 8 | 2.2k/R0402 | R_0402_5MIL_DWS | R10, R17, R18, R20, R38, R44, R48, R49 |
| 1 | 33k/R0402 | R_0402_5MIL_DWS | R11 |
| 2 | 150R/R0402 | R_0402_5MIL_DWS | R12, R13 |
| 10 | 270R/R0402 | R_0402_5MIL_DWS | R14, R15, R24, R25, R26, R27, R28, R29 +2 |
| 2 | NA(2.2k/R0402) | R_0402_5MIL_DWS | R21, R22 |
| 1 | 8.25k/1%/R0402 | R_0402_5MIL_DWS | R34 |
| 1 | 1.05k/1%/R0402 | R_0402_5MIL_DWS | R35 |
| 2 | 220k/R0402 | R_0402_5MIL_DWS | R36, R39 |
| 1 | 49.9k/1%/R0402 | R_0402_5MIL_DWS | R37 |
| 3 | 470k/R0402 | R_0402_5MIL_DWS | R40, R41, R42 |
| 1 | 2.7k/1%/R0402 | R_0402_5MIL_DWS | R47 |
| 1 | 47k/R0402 | R_0402_5MIL_DWS | R50 |
| 1 | 100k/R0402 | R_0402_5MIL_DWS | R51 |
RP2040pc design files
The KiCad project lives in the OLIMEX/RP2040pc repository on GitHub; these links point at the commit this page was built from.
RP2040pc: common questions
What microcontroller does the RP2040pc use?
The RP2040pc is built around the RP2040(QFN-56_7x7mm_P0.4mm), from the RP2040/RP2350 family.
How big is the RP2040pc PCB?
The RP2040pc measures 80 × 65 mm, has 4 copper layers and is 1.578 mm thick.
How many components are on the RP2040pc?
159 components, from 66 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the RP2040pc design files?
From the OLIMEX/RP2040pc repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the RP2040pc design in my own project?
Yes, under the terms of its MIT license, which OLIMEX chose for the repository.
Can I test firmware for the RP2040pc without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
