About the RP2350pc PCB
RP2350pc is an open source RP2040/RP2350 PCB design by OLIMEX, published on GitHub. It is a 4-layer board measuring 85 × 65 mm, with 287 components from 87 distinct parts.
Its main chip is the RP2350B(QFN-80_10.00x10.00x0.90mm_P0.4mm), from the RP2040/RP2350 family. Other key parts include the W25Q128JVSIQ(SOIC-8_208mils), TP4054-42-SOT25-R(SOT23-5), TPS62A02ADRLR(SOT-563-6), CH217K(SOT23-6L) and FE1.1s(SSOP-28). By type, the board carries 104 resistors, 94 capacitors, 11 ICs, 11 inductors, 8 LEDs and 8 diodes.
It belongs with the audio and retro computing designs in this gallery.
From the project

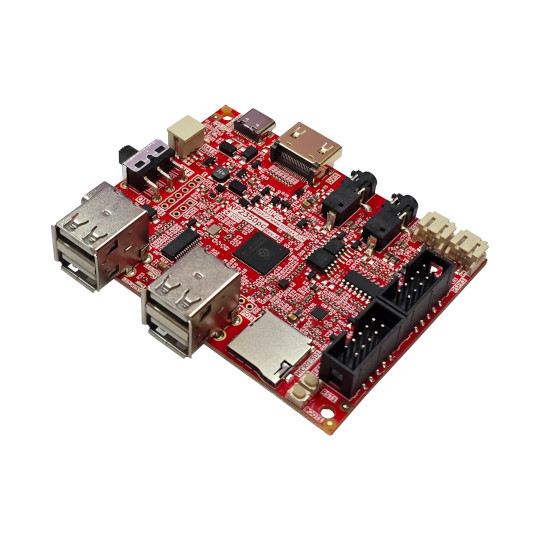

RP2350 all in one computer with 16MB Flash, 8MB PSRAM, 4 USB host, DVI/HDMI output, Stereo Audio codec and amplifier the ultimate RISC-V and Retro computer emulator
https://www.olimex.com/Products/RaspberryPi/PICO/RP2350pc/

Main components on the RP2350pc
RP2350pc bill of materials (BOM)
287 components, 87 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | W25Q128JVSIQ(SOIC-8_208mils) | SO-8_208mil | U1 |
| 1 | TP4054-42-SOT25-R(SOT23-5) | SOT-23-5 | U2 |
| 1 | RP2350B(QFN-80_10.00x10.00x0.90mm_P0.4mm) | QFN-80_10.00x10.00x0.90mm_P0.4mm | U3 |
| 1 | TPS62A02ADRLR(SOT-563-6) | SOT-563-6 | U4 |
| 1 | CH217K(SOT23-6L) | SOT23-6 | U5 |
| 1 | FE1.1s(SSOP-28) | SSOP28_10x4mm_Pitch_0.64mm | U6 |
| 1 | MT3608(SOT23-6) | SOT23-6 | U7 |
| 1 | ES8311(QFN-20) | QFN-20_EP(21)_3x3x0.6mm_Pitch_0.4mm | U8 |
| 1 | NA(W25Q128JVSIQ(SOIC-8_208mils)) | SO-8_208mil | U9 |
| 1 | APS6404L-3SQR-SN(SOIC-8_150mils) | SO-8 | U10 |
| 1 | PAM8003DR(SO-16) | SO-16 | U11 |
| 2 | Q12MHz/18pF/30ppm/4P/3.2x2.5mm(ABM8-12.000MHZ-D2Y-T) | TSX-3.2x2.5mm_GND(3) | Q1, Q2 |
| 12 | TESTPAD | TESTPAD_40-ROUND | +1V1, +3.3V1, +3.3VA1, +5V1, +5VA1, +5V_USB1, GND2, GNDA1 +4 |
| 1 | Opened | SJ | AMP_SHDN_E1 |
| 1 | PH2.0-2AT | PH2.0-2AT(BAT) | BAT1 |
| 2 | YTS-A016-X | YTS-A016-X | BOOT1, RST1 |
| 1 | HDMI-SWM-19 | HDMI-SWM-19_Paste | DVI1 |
| 1 | NA(HN1x6) | HN1x6 | EXT1 |
| 1 | IRLML6402TRPbF | SOT23 | FET1 |
| 5 | BSS138(SOT23-3) | SOT23 | FET2, FET3, FET4, FET5, FET6 |
Show 67 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TESTPAD | TEST_PAD40x70_SQUARE | GND1 |
| 2 | PJ-W47S-05D2-LF | PJ-W47S-05D2-LF_5PIN_V2_LongerPads | HEADSETS1, Line-In1 |
| 2 | PH2.0-2PWB | PH2.0-2PWB | LSPK1, RSPK1 |
| 4 | Drill(3.3mm)/Restrict(7.00mm) | Mounting_Hole_Drill-3.3mm_Clerance-7mm | MH1, MH2, MH3, MH4 |
| 1 | TFC-WPAPR-08-LF | TFC-WPAPR-08 | MICRO_SD1 |
| 2 | NA(HN1x3) | HN1x3 | POT1, SWD1 |
| 1 | SS-12D11G5 | SS-12D11G5 | PWR_ON/OFF1 |
| 1 | RA0805_(4X0402)_33R | RA0805_(4X0402)_xx_BIGGEROUTPADS | RM1 |
| 3 | LMUN2235LT1G(SOT-23) | SOT23 | T1, T3, T4 |
| 1 | LMUN2111LT1G(SOT-23) | SOT23 | T2 |
| 2 | P-B-V-10-LF | GBH-254-SMT-10 | UEXT1, UEXT2 |
| 2 | USB-C-16P-F(A40-00119-A52-12) | USB2.0_TYPE-C(A40-00119-A52-12)_Paste | USB-PGM1, USB-PWR1 |
| 2 | USBB1-FRWH-4A(USB-Ax2) | USB_TWO_LEVEL | USB_HOST1-2, USB_HOST3-4 |
| 1 | AP1231-3.3V(SOT23-5) | SOT-23-5 | VR1 |
| 2 | LED/RED/0603 | LED_0603_KA | Act/Sus1, PWR_LED1 |
| 1 | LED/YELLOW/0603 | LED_0603_KA | CHARGING1 |
| 5 | LED/GREEN/0603 | LED_0603_KA | LED1, LED_HOST1, LED_HOST2, LED_HOST3, LED_HOST4 |
| 4 | 1N5822/SS34/SMA | SMA-KA | D1, D2, D3, D4 |
| 3 | 1N5819S4/SOD123 | SOD-123_1C-2A_KA | D5, D6, D8 |
| 1 | NA(1N5822/SS34/SMA) | SMA-KA | D7 |
| 7 | FB0805/600R/2A | L_0805_5MIL_DWS | FB1, FB2, FB3, FB4, L1, L5, L7 |
| 1 | 3.3uH/2.0A/DCR=140mR/20%/2.00x1.60x1.00mm/L2016(PIM201610-3R3MTS00) | L_2016_MM | L2 |
| 1 | 4.7uH/2.33A/DCR=70mR/20%/CD43(NRS4018T4R7MDGJ) | CD42(43) | L3 |
| 1 | 1.0uH/4.2A/DCR=35mR/20%/2.00x1.60x1.00mm/L2016(PIM201610-1R0MTS00) | L_2016_MM | L4 |
| 1 | NA(FB0805/600R/2A) | L_0805_5MIL_DWS | L6 |
| 25 | 100nF/10V/20%/X5R/C0402 | C_0402_5MIL_DWS | C1, C4, C5, C6, C7, C8, C9, C10 +17 |
| 16 | 1uF/6.3V/10%/X5R/C0402 | C_0402_5MIL_DWS | C2, C58, C60, C62, C63, C65, C68, C69 +8 |
| 2 | NA(100nF/10V/20%/X5R/C0402) | C_0402_5MIL_DWS | C3, C94 |
| 5 | 4.7uF/10V/20%/X5R/C0402 | C_0402_5MIL_DWS | C14, C15, C17, C19, C20 |
| 5 | 27pF/50V/5%/C0G/C0402 | C_0402_5MIL_DWS | C21, C22, C51, C52, C55 |
| 5 | 47uF/6.3V/20%/X5R/C0805 | C_0805_5MIL_DWS | C23, C32, C44, C46, C80 |
| 8 | 10uF/6.3V/20%/X5R/C0402 | C_0402_5MIL_DWS | C25, C26, C28, C48, C56, C71, C85, C88 |
| 2 | NA(27pF/50V/5%/C0G/C0402) | C_0402_5MIL_DWS | C30, C31 |
| 4 | NA(22uF/6.3V/20%/X5R/C0603) | C_0603_5MIL_DWS | C33, C34, C39, C45 |
| 8 | 22uF/6.3V/20%/X5R/C0603 | C_0603_5MIL_DWS | C35, C36, C38, C42, C64, C66, C74, C75 |
| 1 | NA(120pF/50V/5%/C0G/C0402) | C_0402_5MIL_DWS | C37 |
| 5 | NA(47uF/6.3V/20%/X5R/C0805) | C_0805_5MIL_DWS | C40, C41, C67, C86, C89 |
| 2 | 20pF/50V/5%/NP0/C0402 | C_0402_5MIL_DWS | C49, C50 |
| 1 | NA(10uF/6.3V/20%/X5R/C0402) | C_0402_5MIL_DWS | C57 |
| 4 | 270pF/50V/5%/C0G/C0402 | C_0402_5MIL_DWS | C81, C90, C91, C93 |
| 1 | NA(1uF/6.3V/10%/X5R/C0402) | C_0402_5MIL_DWS | C92 |
| 19 | 2.2k/R0402 | R_0402_5MIL_DWS | R1, R15, R31, R32, R33, R34, R40, R41 +11 |
| 3 | NA(0R/R0603) | R_0603_5MIL_DWS | R2, R5, R39 |
| 16 | 10k/R0402 | R_0402_5MIL_DWS | R3, R6, R16, R20, R21, R27, R28, R30 +8 |
| 3 | 0R/R0603 | R_0603_5MIL_DWS | R4, R43, R67 |
| 3 | NA(10k/R0402) | R_0402_5MIL_DWS | R7, R100, R102 |
| 9 | 33R/R0402 | R_0402_5MIL_DWS | R8, R46, R47, R50, R79, R92, R93, R94 +1 |
| 1 | 200R/1%/R0402 | R_0402_5MIL_DWS | R9 |
| 2 | 27R/R0402 | R_0402_5MIL_DWS | R10, R11 |
| 1 | 1.3R/1%/R0402 | R_0402_5MIL_DWS | R12 |
| 5 | 1k/R0402 | R_0402_5MIL_DWS | R13, R18, R42, R91, R104 |
| 4 | 5.1k/1%/R0402 | R_0402_5MIL_DWS | R14, R17, R58, R70 |
| 2 | 49.9k/1%/R0402 | R_0402_5MIL_DWS | R19, R26 |
| 1 | 2.7k/1%/R0402 | R_0402_5MIL_DWS | R22 |
| 1 | 8.25k/1%/R0402 | R_0402_5MIL_DWS | R23 |
| 1 | 1.05k/1%/R0402 | R_0402_5MIL_DWS | R24 |
| 2 | 220k/R0402 | R_0402_5MIL_DWS | R25, R80 |
| 9 | 4.7k/R0402 | R_0402_5MIL_DWS | R29, R35, R38, R72, R86, R87, R88, R89 +1 |
| 2 | 470k/R0402 | R_0402_5MIL_DWS | R36, R37 |
| 10 | 270R/R0402 | R_0402_5MIL_DWS | R48, R49, R59, R60, R61, R62, R63, R64 +2 |
| 2 | 150R/R0402 | R_0402_5MIL_DWS | R53, R54 |
| 1 | NA/R0402 | R_0402_5MIL_DWS | R55 |
| 1 | 10R/R0402 | R_0402_5MIL_DWS | R73 |
| 2 | 27k/R0402 | R_0402_5MIL_DWS | R75, R83 |
| 1 | NA(4.7k/R0402) | R_0402_5MIL_DWS | R95 |
| 2 | NA(33R/R0402) | R_0402_5MIL_DWS | R96, R98 |
| 1 | 100R/R0805 | R_0805_5MIL_DWS | R99 |
RP2350pc design files
The KiCad project lives in the OLIMEX/RP2350pc repository on GitHub; these links point at the commit this page was built from.
RP2350pc: common questions
What microcontroller does the RP2350pc use?
The RP2350pc is built around the RP2350B(QFN-80_10.00x10.00x0.90mm_P0.4mm), from the RP2040/RP2350 family.
How big is the RP2350pc PCB?
The RP2350pc measures 85 × 65 mm, has 4 copper layers and is 1.578 mm thick.
How many components are on the RP2350pc?
287 components, from 87 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the RP2350pc design files?
From the OLIMEX/RP2350pc repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the RP2350pc design in my own project?
The repository has no license, so all rights stay with OLIMEX. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the RP2350pc without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
