MeshtasticStick
About the MeshtasticStick PCB

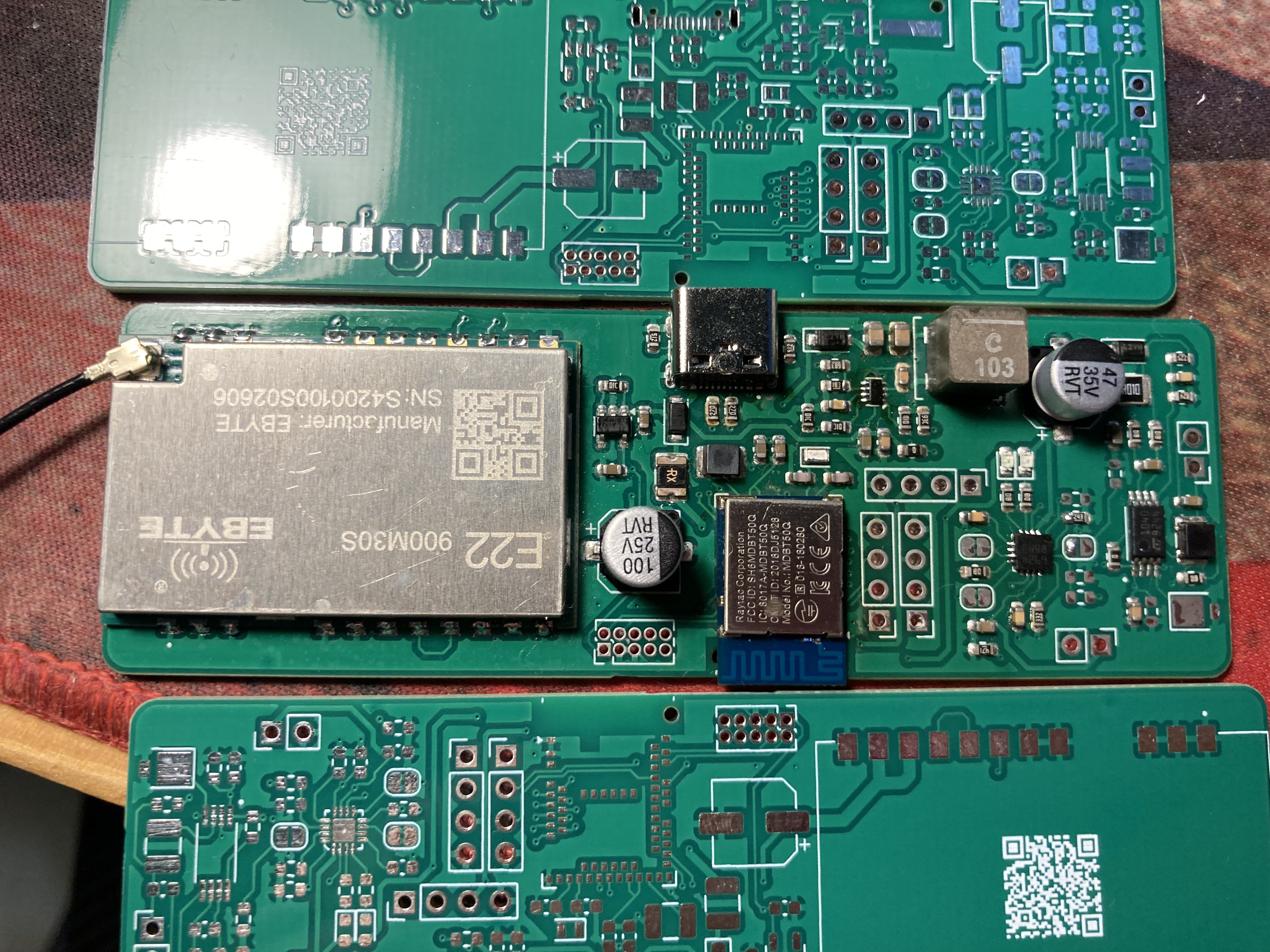

MeshtasticStick is an open source Nordic nRF PCB design by Oliver0804, published on GitHub. It is a 2-layer board measuring 31.1 × 94.2 mm, with 79 components from 49 distinct parts.
Its main chip is the MDBT50Q-P1MV2, from the Nordic nRF family. Other key parts include the AP2112K-3.3, SPV1040T, E22-900M30S, L6924D and MP2338GTL. By type, the board carries 30 resistors, 22 capacitors, 6 ICs, 6 connectors, 6 diodes and 3 jumpers.
It belongs with the iot & wireless designs in this gallery.
From the project
1. 支持太陽能（0.3V~5.5V） 2. 支持寬壓輸入（4.5V~28V） 3. TypeC 供電(輸入最少5V/1.5A)，如無充電狀況下約0.8A 4. NRF52 不支持WI-FI 5. 預留I2C,GPS接口(GPS可使用Jumper切換電壓3v3/5v0)
1. 支持太陽能（0.3V~5.5V） 2. 支持寬壓輸入（4.5V~28V） 3. TypeC 供電(輸入最少5V/1.5A)，如無充電狀況下約0.8A 4. NRF52 不支持WI-FI 5. 預留I2C,GPS接口(GPS可使用Jumper切換電壓3v3/5v0)
2. SPV1040（voltage range from 0.3 V to 5.5 V） 描述: SPV1040是STMicroelectronics的一款高效率太陽能充電控制器，適用於低功耗應用和可攜式太陽能系統。 優勢: 能夠在廣泛的太陽照射條件下有效提高能量收集效率，支持最大功率點追蹤(MPPT)技術，以最大化太陽能板的能量輸出。此IC具有過載保護和熱保護功能，能確保系統的穩定與安全。
3. L6924 (取代LT4056系列) 描述: L6924是一款用於單節鋰離子或鋰聚合物電池的充電管理IC，由STMicroelectronics製造。 優勢: 這個充電器支持調整充電電流和電壓，以適應不同電池的需求。它包括內部功率晶體管和電流感測功能，無需外部許多元件，非常適合便攜式設備。
Main components on the MeshtasticStick
MeshtasticStick bill of materials (BOM)
79 components, 49 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AP2112K-3.3 | SOT-23-5 | U1 |
| 1 | SPV1040T | SOP65P640X120-8N | U2 |
| 1 | E22-900M30S | XCVR_E22-900M30S | U3 |
| 1 | MDBT50Q-P1MV2 | Raytac_MDBT50Q | U4 |
| 1 | L6924D | QFN50P300X300X100-17N | U5 |
| 1 | MP2338GTL | SOT-583-8 | U6 |
| 1 | Crystal | Crystal_SMD_2012-2Pin_2.0x1.2mm | Y1 |
| 1 | TYPE-C-31-M-12 | HRO_TYPE-C-31-M-12 | J1 |
| 1 | CONN_02X05_ODD_EVEN Conn_02x05_Odd_Even | PinHeader_2x05_P1.27mm_Vertical | J2 |
| 3 | CONN_01X04 Conn_01x04 | PinHeader_1x04_P2.54mm_Vertical | J3, J4, J6 |
| 1 | CONN_01X02 Conn_01x02 | PinHeader_1x02_P2.54mm_Vertical | J5 |
| 1 | Battery_Cell | PinHeader_1x02_P2.54mm_Vertical | BT1 |
| 1 | C20806 Fuse | Fuse_1210_3225Metric | F1 |
| 2 | JUMPER_2_BRIDGED Jumper_2_Bridged | SolderJumper-2_P1.3mm_Bridged2Bar_RoundedPad1.0x1.5mm | JP2, JP3 |
| 1 | JUMPER_2_OPEN Jumper_2_Open | SolderJumper-2_P1.3mm_Open_RoundedPad1.0x1.5mm | JP4 |
| 3 | MBR120VLSFT1G | D_SOD-123F | D1, D3, D6 |
| 1 | SMM4F5.0A | D_SMP_DO-220AA | D2 |
| 2 | LED | LED_0603_1608Metric | D4, D5 |
| 1 | 10UH 10uH | L_1210_3225Metric | L1 |
| 1 | 10UH 10uH | Fuse_1210_3225Metric | L2 |
Show 29 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MDA4020-1R0M 6.8uH/8.5A/16mR | L_Coilcraft_XAL6060-XXX | L3 |
| 3 | 1UF 1uF | C_0603_1608Metric | C1, C2, C3 |
| 3 | 4.7UF 4.7uF | C_0603_1608Metric | C4, C5, C14 |
| 1 | 0.1UF 100nF | C_0603_1608Metric | C6 |
| 1 | 100UF 100uF | CP_Elec_6.3x7.7 | C7 |
| 3 | 10UF 10uF | C_0603_1608Metric | C8, C17, C22 |
| 2 | 14P 14p | C_0603_1608Metric | C9, C10 |
| 2 | 1NF 1nF | C_0603_1608Metric | C11, C15 |
| 1 | 47UF 47uF | CP_Elec_6.3x7.7 | C12 |
| 1 | 10NF 10nF | C_0603_1608Metric | C13 |
| 2 | 0.1UF 0.1uF | C_0603_1608Metric | C16, C18 |
| 2 | 22UF 22uF | C_0805_2012Metric | C19, C20 |
| 1 | 22NF 22nF | C_0603_1608Metric | C21 |
| 3 | 10K | R_0603_1608Metric | R1, R24, R27 |
| 2 | 5.1K | R_0603_1608Metric | R2, R3 |
| 6 | 1K | R_0603_1608Metric | R4, R5, R6, R15, R28, R29 |
| 5 | DNM | R_0603_1608Metric | R7, R17, R18, R20, R21 |
| 1 | 10MR 10mR | R_1210_3225Metric | R8 |
| 2 | C21189 0R | R_0603_1608Metric | R9, R30 |
| 1 | 2.2M | R_0603_1608Metric | R10 |
| 1 | 820K | R_0603_1608Metric | R11 |
| 2 | 27R | R_0603_1608Metric | R12, R13 |
| 1 | 3.3K | R_0603_1608Metric | R14 |
| 1 | 24K | R_0603_1608Metric | R16 |
| 1 | 470R | R_0603_1608Metric | R19 |
| 1 | 90.9K | R_0603_1608Metric | R22 |
| 1 | 68K | R_0603_1608Metric | R23 |
| 1 | 18K | R_0603_1608Metric | R25 |
| 1 | 100K | R_0603_1608Metric | R26 |
MeshtasticStick design files
The KiCad project lives in the Oliver0804/MeshtasticStick repository on GitHub; these links point at the commit this page was built from.
MeshtasticStick: common questions
What microcontroller does the MeshtasticStick use?
The MeshtasticStick is built around the MDBT50Q-P1MV2, from the Nordic nRF family.
How big is the MeshtasticStick PCB?
The MeshtasticStick measures 31.1 × 94.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the MeshtasticStick?
79 components, from 49 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the MeshtasticStick design files?
From the Oliver0804/MeshtasticStick repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the MeshtasticStick design in my own project?
The repository has no license, so all rights stay with Oliver0804. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the MeshtasticStick without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Nordic nRF firmware against it before you order a PCB.
