About the OpenESC-20x20 PCB

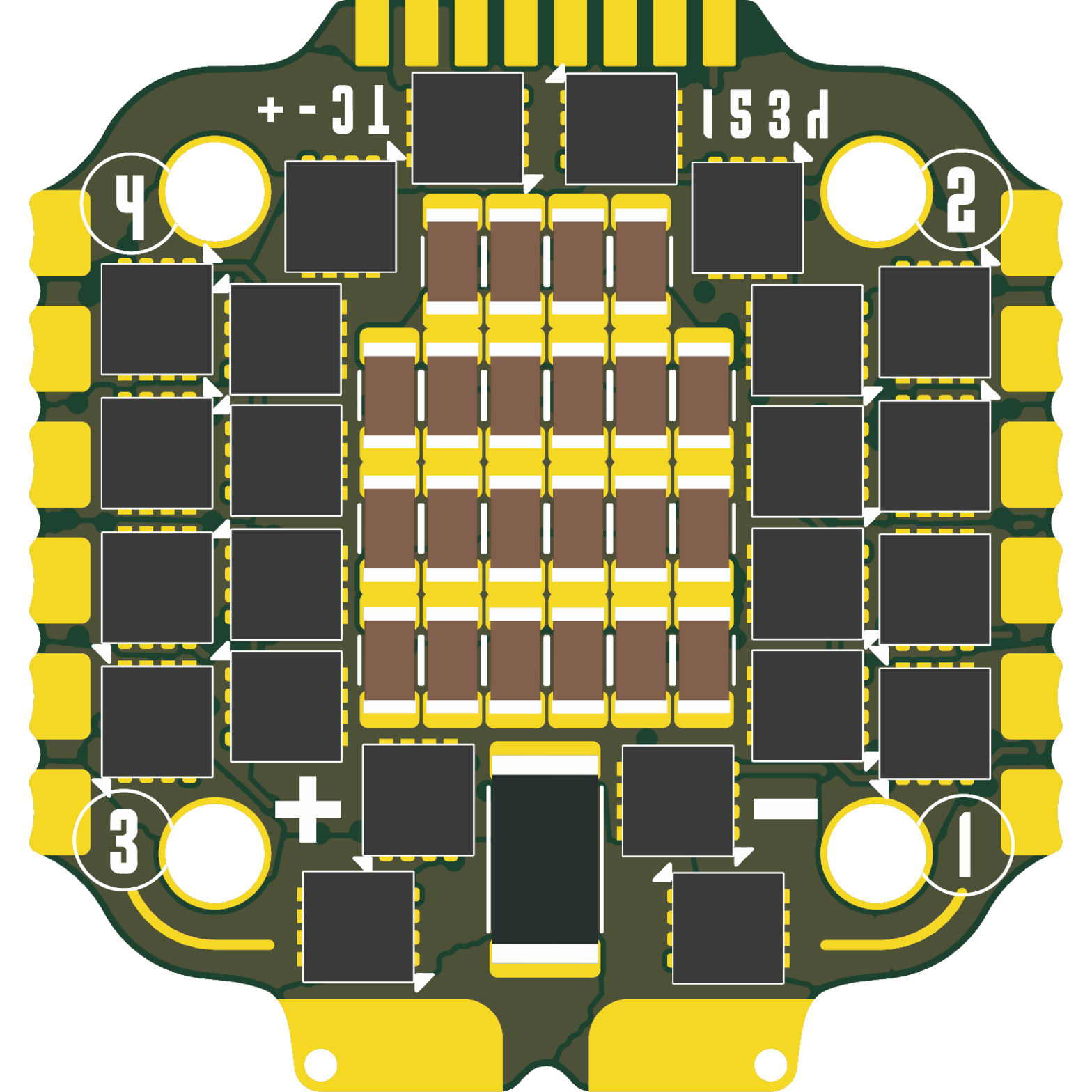

OpenESC-20x20 is an open source PCB design by OpenDrone-hw, published on GitHub under the CERN-OHL-S-2.0 license. It is a 6-layer board measuring 31.2 × 33 mm, with 180 components from 23 distinct parts.
Other key parts include the TLV76733DRVR, AT32F421G8U7, NSG2065Q, FTC160808S4R7MBCA and INA186A3IDCKR. By type, the board carries 81 resistors, 41 capacitors, 24 transistors, 12 ICs and 1 connector.
It belongs with the robotics & motion and wearables designs in this gallery.
From the project
Open-source 4-in-1 AM32 ESC for FPV drones. 20x20 mm, 2-6S, one MCU per motor, CERN-OHL-S-2.0.
Open source 4-in-1 BLDC ESC with a 20 x 20 mm mounting pattern, part of the incutec OpenDrone line. Four independent motor controllers, each with its own MCU, gate driver and six MOSFETs, running AM32 and taking DShot over the standard 8-pin connector.
Technical write-up, part list and layout constraints: AGENTS.md.
What pairs with what, and what is available: opendrone.be.

Main components on the OpenESC-20x20
OpenESC-20x20 bill of materials (BOM)
180 components, 23 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TLV76733DRVR Texas Instruments | WSON-6_L2.0-W2.0-P0.65-TL-EP | U1 |
| 4 | AT32F421G8U7 ArteryTek | QFN-28_L4.0-W4.0-P0.40-TL-EP2.4 | U2, U6, U8, U10 |
| 4 | NSG2065Q WXNSIC | QFN-24_L4.0-W4.0-P0.50-TL-EP2.8 | U3, U7, U9, U11 |
| 1 | FTC160808S4R7MBCA cjiang | IND-SMD_L1.6-W0.8_FTC160865SR47MBCA | U5 |
| 1 | INA186A3IDCKR Texas Instruments | SOT-363_SC-70-6 | U12 |
| 1 | LMR54406DBVR Texas Instruments | SOT-23-6_L2.9-W1.6-P0.95-LS2.8-BR | U13 |
| 24 | DOY180N03T DOINGTER | Diodes_PowerDI3333-8 | Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8 +16 |
| 1 | SM08B-SRSS-TB(LF)(SN) SM08B-SRSS-TB JST | JST_SM08B-SRSS-TB | J1 |
| 1 | TCC1206X7R475K500HT 4.7uF CCTC | C_1206_3216Metric | CL32 |
| 19 | 4.7uF | C_1206_3216Metric | CL33, CL34, CL35, CL36, CL38, CL39, CL40, CL42 +11 |
| 1 | ASR-S-3-0.2F 0.2mR Yezhan | R_2512_6332Metric | Rsense2 |
| 2 | CL05A226MQ5QUNC 22uF Samsung Electro-Mechanics | C_0402_1005Metric | C1, C42 |
| 14 | CL05B104KB54PNC 100nF Samsung Electro-Mechanics | C_0402_WIDE | C32, C33, C34, C35, C36, C37, C38, C39 +6 |
| 2 | CL10A226MO7JZNC 22uF Samsung Electro-Mechanics | C_0603_1608Metric | C43, C86 |
| 22 | GRM033R6YA104KE14D 100nF muRata | C_0201_0603Metric | C44, C45, C46, C48, C49, C50, C57, C63 +14 |
| 1 | CC0402KRX7R6BB105 1uF YAGEO | C_0402_1005Metric | C51 |
| 24 | 0201WMF150JTEE 15R UNI-ROYAL | R_0201_0603Metric | R1, R2, R6, R7, R8, R9, R16, R17 +16 |
| 33 | RC0201FR-0710KL 10k YAGEO | R_0201_0603Metric | R3, R4, R10, R12, R13, R15, R18, R19 +25 |
| 4 | AC0201FR-07220RL 220R YAGEO | R_0201_0603Metric | R5, R20, R41, R59 |
| 13 | 0201WMF1001TEE 1k UNI-ROYAL | R_0201_0603Metric | R11, R14, R26, R29, R32, R35, R47, R50 +5 |
Show 3 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | RC0201FR-0710RL 10R YAGEO | R_0201_0603Metric | R74, R75, R76, R77 |
| 2 | 0201WMF1001TEE 1k UNI-ROYAL | C_0201_0603Metric | R91, R92 |
| 1 | RTT011153FTH 115k RALEC | R_0201_0603Metric | R119 |
OpenESC-20x20 design files
The KiCad project lives in the OpenDrone-hw/OpenESC-20x20 repository on GitHub; these links point at the commit this page was built from.
- Layouthardware/4in1-mini.kicad_pcb
- Schematichardware/4in1-mini.kicad_sch
- BOMAGENTS.md
OpenESC-20x20: common questions
How big is the OpenESC-20x20 PCB?
The OpenESC-20x20 measures 31.2 × 33 mm, has 6 copper layers and is 1.69 mm thick.
How many components are on the OpenESC-20x20?
180 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the OpenESC-20x20 design files?
From the OpenDrone-hw/OpenESC-20x20 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the OpenESC-20x20 design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which OpenDrone-hw chose for the repository.
