CFC Sensor Card

oresat·oresat-cfc-hardware·cfc-sensor-card-v2/cfc-sensor-card.kicad_pcb

CFC Sensor Card PCB layout, top view — open source board by oresat
Simulate this board

About the CFC Sensor Card PCB

CFC Sensor Card is an open source PCB design by oresat, published on GitHub under the CERN-OHL-S-2.0 license. It is a 4-layer board measuring 50.7 × 24.3 mm, with 149 components from 48 distinct parts.

Other key parts include the MIC842LYC5-TR, MAX7310ATE+, MAX4211FETE, LP2985AIM5-3.3/NOPB and TLC3704IPWR. By type, the board carries 69 resistors, 48 capacitors, 17 ICs, 6 diodes, 5 transistors and 2 connectors.

It belongs with the sensors designs in this gallery.

From the project

Cirrrus Flux Camera hardware repository

Cirrrus Flux Camera hardware repository. See also https://www.oresat.org/satellites/oresat/mission-2-cfc.

Older versions of the CFC flew on the 2022 NASA High Altitude Student Payload (HASP) mission.

Different but modern versions were flown by UMBC's AirHARP mission on the NASA ER-2 high altitude plane.

Most recently, we flew a preliminary technology demonstration mission on OreSat0.5 launched August 16th, 2024.

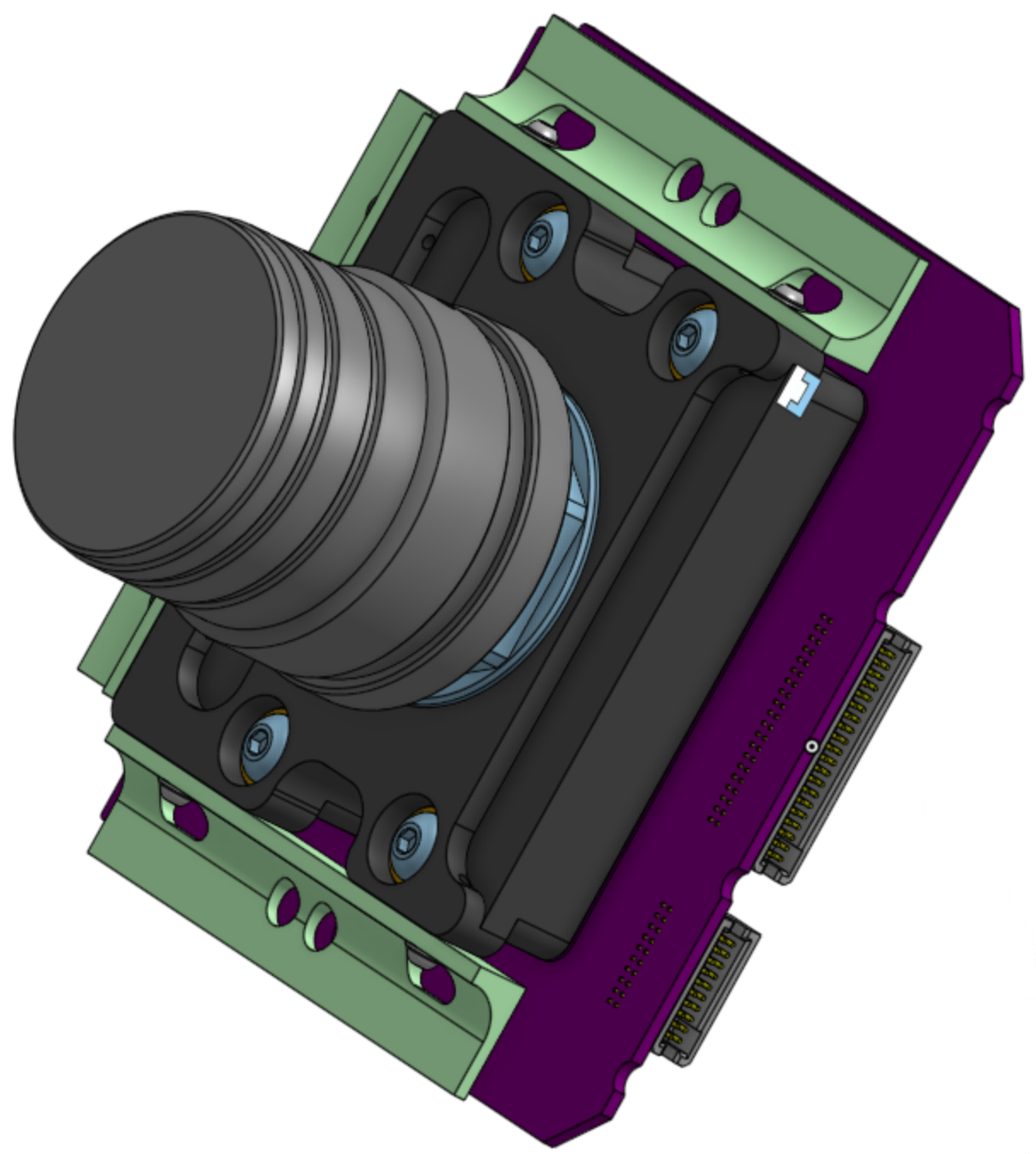

CFC Sensor Card, from the project README
From the project README

Main components on the CFC Sensor Card

MIC842LYC5-TRMAX7310ATE+MAX4211FETELP2985AIM5-3.3/NOPBTLC3704IPWRLT3042IMSE#TRPBFAD5593RBCPZ-RL7MP2410AGJ-ZDRV8212DSGRINA186A1IDCKRISM95-3251AH-16.000MHZPIRT1280A1-12

CFC Sensor Card bill of materials (BOM)

149 components, 48 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
MIC842LYC5-TR
MIC842LYC5
Microchip Technology
U1, U2
1
MAX7310ATE+
Analog Devices
U3
1
MAX4211FETE
Analog Devices
U4
1
LP2985AIM5-3.3/NOPB
LP2985-3.3
Texas Instruments
U5
1
TLC3704IPWR
Texas Instruments
U6
5
LT3042IMSE#TRPBF
LT3042IMSE
Analog Devices Inc.
U7, U8, U9, U10, U11
1
AD5593RBCPZ-RL7
Analog Devices Inc.
U12
1
MP2410AGJ-Z
MP2410A
Monolithic Power Systems Inc.
U15
1
DRV8212DSGR
Texas Instruments
U16
1
INA186A1IDCKR
Texas Instruments
U17
1
ISM95-3251AH-16.000MHZ
XO_ISM95-XXXXXX
ILSI
U18
1
PIRT1280A1-12
U-PIRT-PIRT1280A1-12
Princeton IR
U19
1
DMP2110UVTQ-7
Diodes Incorporated
Q1
2
DMN2050LQ-7
Diodes Incorporated
Q2, Q5
1
DMP3050LVT-7
Diodes Inc
Q3
1
DMPH2040UVTQ-7
Diodes Incorporated
Q4
1
TFM-120-01-L-D-RA
Samtec
J1
1
TFM-110-01-L-D-RA
J-SAMTEC-TFM-110-X1-XXX-D-RA
Samtec
J2
1
ORESAT-CARD-V1.3-CFC-SENSOR-V1.0
PCB1
1
150060AS75000
AMB
Wurth
D1
Show 28 more
QtyPartRefs
4
150060GS75000
GREEN
Wurth
D2, D3, D4, D6
1
150060AS75000
AMBER
Wurth
D5
1
SRR5028-2R6Y
2.6u
Bourns Inc.
L1
7
TMK107BJ105KAHT
1u
Taiyo Yuden
C1, C2, C7, C8, C11, C14, C15
17
TMK107BJ104KAHT
100n
Taiyo Yuden
C3, C4, C5, C12, C31, C32, C34, C39 +9
4
GRT21BC71E106KE13L
10u
Murata Electronics
C6, C36, C38, C40
2
C0603C103J5RACAUTO
10n
KEMET
C9, C37
6
C0603C474K3RACAUTO
470n
KEMET
C10, C21, C22, C23, C24, C25
11
EMK107BBJ475KAHT
4.7u
Taiyo Yuden
C13, C16, C17, C18, C19, C20, C26, C27 +3
1
KAM15AR71H223JT
.022uF
KYOCERA AVX
C43
11
RMCF0603FT100R
100
Stackpole Electronics Inc
R1, R2, R4, R8, R11, R21, R30, R31 +3
9
NP
R3, R5, R6, R7, R12, R13, R16, R17 +1
2
RMCF0603FT665K
665K
Stackpole Electronics Inc
R9, R10
3
RMCF0603FT330K
330K
Stackpole Electronics Inc
R14, R15, R48
2
RMCF0603FG1M00
1M
Stackpole Electronics Inc
R18, R19
27
RMCF0603FT10K0
10K
Stackpole Electronics Inc
R22, R23, R25, R27, R29, R34, R35, R36 +19
2
RMCF0603FT4K70
4.7K
Stackpole Electronics Inc
R24, R62
1
RMCF0603FT100K
100k
Stackpole Electronics Inc
R26
1
CSRF1206FT10L0
10m
Stackpole Electronics Inc
R28
2
1k
R32, R33
2
RMCF0603FT33K2
33.2K
Stackpole Electronics Inc
R54, R55
1
RMCF0603FT16K2
16.2K
Stackpole Electronics Inc
R56
1
RMCF0603FT9K09
9.09K
Stackpole Electronics Inc
R57
1
RMCF0603FT29K4
29.4K
Stackpole Electronics Inc
R58
1
RNCF0603TKW10K0
10K
Stackpole Electronics Inc
R61
1
RMCF0603FT1K00
1k
Stackpole Electronics Inc
R63
1
KDV12DR050ET
50m
Ohmite
R64
1
CRMA2512AF15M0FKEF
15m
Vishay Dale
R71

CFC Sensor Card design files

The KiCad project lives in the oresat/oresat-cfc-hardware repository on GitHub; these links point at the commit this page was built from.

CFC Sensor Card: common questions

How big is the CFC Sensor Card PCB?

The CFC Sensor Card measures 50.7 × 24.3 mm, has 4 copper layers and is 1.7693 mm thick.

How many components are on the CFC Sensor Card?

149 components, from 48 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the CFC Sensor Card design files?

From the oresat/oresat-cfc-hardware repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the CFC Sensor Card design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which oresat chose for the repository.
