DraadloosDeurbel PCB layout, top view — open source ESP8266 board by pappavis

About the DraadloosDeurbel PCB

DraadloosDeurbel is an open source ESP8266 PCB design by pappavis, published on GitHub under the MIT license. It is a 2-layer board measuring 51.8 × 58.4 mm, with 25 components from 20 distinct parts.

Its main chip is the WeMos_D1_mini, from the ESP8266 family. Other key parts include the LM386, PCF8574 and SN76489. By type, the board carries 7 resistors, 4 ICs, 4 connectors, 4 capacitors, 2 transistors and 2 diodes.

From the project

An ESP8266 wirelss doorbell using Micropython and SN76489

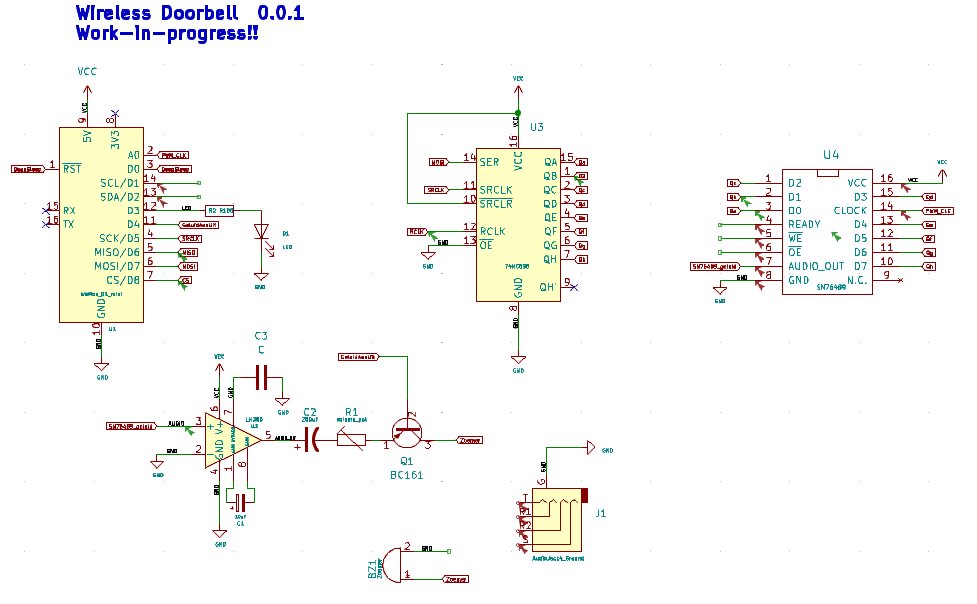

DraadloosDeurbel, from the project README
From the project README

Main components on the DraadloosDeurbel

WeMos_D1_miniLM386PCF8574SN76489

DraadloosDeurbel bill of materials (BOM)

25 components, 20 distinct parts.

QtyPartRefs
1
WeMos_D1_mini
U1
1
LM386
U2
1
PCF8574
U3
1
SN76489
U4
1
BC338
Q1
1
BC338
Q2
1
AudioPlug3
J1
1
debug_01x04
J2
1
I2C_Oled_128X32
J3
1
TP4056_bat
J4
1
Zoemer
BZ1
1
r_pot_vol
RV1
1
LED
D1
1
Status_LED
D2
2
0.05uF
C1, C4
1
250uF
C2
1
10uF
C3
3
R10k
R2, R4, R5
2
R1k
R3, R8
2
R100
R6, R7

DraadloosDeurbel design files

The KiCad project lives in the pappavis/DraadloosDeurbel repository on GitHub; these links point at the commit this page was built from.

DraadloosDeurbel: common questions

What microcontroller does the DraadloosDeurbel use?

The DraadloosDeurbel is built around the WeMos_D1_mini, from the ESP8266 family.

How big is the DraadloosDeurbel PCB?

The DraadloosDeurbel measures 51.8 × 58.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the DraadloosDeurbel?

25 components, from 20 distinct parts. The full bill of materials is listed on this page.

Where can I download the DraadloosDeurbel design files?

From the pappavis/DraadloosDeurbel repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the DraadloosDeurbel design in my own project?

Yes, under the terms of its MIT license, which pappavis chose for the repository.

Can I test firmware for the DraadloosDeurbel without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
