About the Mouse joystick PCB

Mouse joystick is an open source RP2040/RP2350 PCB design by peterpolidoro, published on GitHub under the CC-BY-SA-4.0 license. It is a 4-layer board measuring 100 × 80 mm, with 360 components from 81 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the USBLC6-2P6, TPS1HTC100QPWPRQ1, W25Q128JVPIQ, SN74CB3Q3245RGYR and TPS73733QDRBRQ1. By type, the board carries 172 resistors, 122 capacitors, 34 ICs, 11 connectors, 8 diodes and 7 inductors.

It belongs with the robotics & motion designs in this gallery.

From the project

KiCad design, fabrication package and documentation for a single-axis mouse joystick controller board: RP2040, TMC5130A stepper driver, brake and torque front ends, a pyControl UART peripheral for the Janelia Dudman lab joystick rig.

Single-axis mouse joystick controller board for the Janelia Dudman lab joystick rig, built as a native pyControl peripheral. One board drives one joystick: an RP2040 runs a TMC5130A stepper driver with the joystick's encoder and limit switch, a magnetic-particle brake, a torque-sensor bridge and two analog outputs, and speaks a line protocol to pyControl over one UART. The rig has two joysticks and two of these boards.

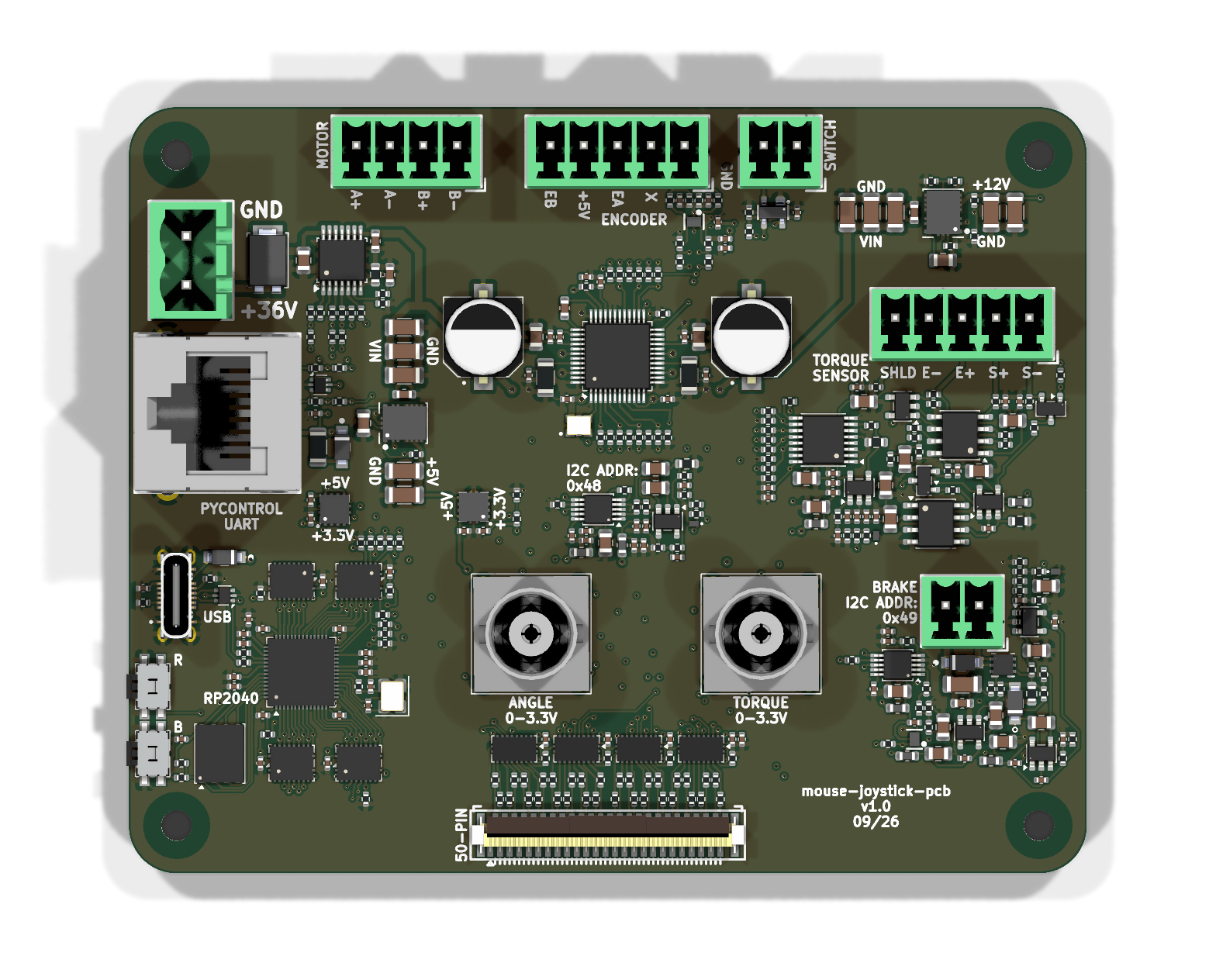

Mouse joystick, from the project README — From the project README

Main components on the Mouse joystick

USBLC6-2P6TPS1HTC100QPWPRQ1RP2040 W25Q128JVPIQSN74CB3Q3245RGYRTPS73733QDRBRQ1 DAC80501ZDGSR OPA197IDBVRTMC5130A-TA-TSN74LV541ARKSR SN74LVC2G17DRYR MAX6816EUS+T TPSM365R6V5RDNR BUK7D36-60EX TPSM365R6FRDNRINA821IDRADS8689IPWRREF5010AIDR

Mouse joystick bill of materials (BOM)

360 components, 81 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
2	USBLC6-2P6 STMicroelectronics	USBLC6-2P6_SOT-666	U201, U301
1	TPS1HTC100QPWPRQ1 Texas Instruments	Texas_HTSSOP-14-1EP_4.4x5mm_P0.65mm_EP3.4x5mm_Mask3.155x3.255mm_ThermalVias_JLCPCB	U501
1	RP2040 Raspberry Pi	QFN-56-1EP_7x7mm_P0.4mm_EP3.2x3.2mm	U601
1	W25Q128JVPIQ Winbond Electronics	WSON-8-1EP_6x5mm_P1.27mm_EP3.4x4.3mm	U602
4	SN74CB3Q3245RGYR Texas Instruments	Texas_RGY_R-PVQFN-N20_EP2.05x3.05mm	U603, U604, U605, U606
2	TPS73733QDRBRQ1 Texas Instruments	TPS737Q1	U701, U1001
2	DAC80501ZDGSR Texas Instruments	Texas_DGS0010A_VSSOP-10_3x3mm_P0.5mm	U801, U1801
7	OPA197IDBVR Texas Instruments	SOT-23-5	U802, U1802, U1804, U1806, U2003, U2005, U2006
1	TMC5130A-TA-T Analog Devices Inc./Maxim Integrated	TQFP-48-1EP_7x7mm_P0.5mm_EP5x5mm_ThermalVias_JLCPCB	U1201
4	SN74LV541ARKSR Texas Instruments	Texas_RKS0020A_VQFN-20-1EP_2.5x4.5mm_P0.5mm_EP1x3mm	U1301, U1302, U1303, U1304
2	SN74LVC2G17DRYR Texas Instruments	DRY6	U1501, U1803
1	MAX6816EUS+T Analog Devices Inc./Maxim Integrated	SOT192P237X122-4N	U1601
1	TPSM365R6V5RDNR Texas Instruments	RDN0011A-MFG	U1701
1	BUK7D36-60EX Nexperia USA Inc.	BUK7D3660EX_NEX	U1805
1	TPSM365R6FRDNR Texas Instruments	RDN0011A-MFG	U1901
1	INA821IDR Texas Instruments	SOIC-8_3.9x4.9mm_P1.27mm	U2001
1	ADS8689IPWR Texas Instruments	TSSOP-16_4.4x5mm_P0.65mm	U2002
1	REF5010AIDR Texas Instruments	SOIC-8_3.9x4.9mm_P1.27mm	U2004
1	2SK1589-T1B-VB VBsemi Elec	SOT-23	Q2001
1	MMBT5550LT1G onsemi	SOT-23	Q2002

Show 61 more

Qty	Part	Footprint	Refs
1	ECS-2520S33-160-FN 16MHz ECS Inc.	OSC_ECS-2520S33-160-FN-TR	X1201
1	ABM8-272-T3 12MHz Abracon LLC	Crystal_SMD_3225-4Pin_3.2x2.5mm	Y601
1	USB4145-03-0070-C USB-C Global Connector Technology	USB_C_Receptacle_GCT_USB4145-03-0070-C_16P_Vertical	J201
1	855085001 RJ45-8P8C Molex	RJ45_Molex_855085001_Vertical_THT	J301
1	1755736 TBH-1x02-5.08mm Phoenix Contact	PhoenixContact_MSTBVA_2,5_2-G-5,08_1x02_P5.08mm_Vertical	J501
2	C19712152 Conn_Coaxial_HL-BNC-KHDA Shenzhen HenryTech	CONN_BNC_HL-BNC-KHDA	J901, J1101
1	1843622 TBH-1x04-3.5mm Phoenix Contact	PhoenixContact_MCV_1,5_4-G-3.5_1x04_P3.50mm_Vertical	J1102
2	1843635 TBH-1x05-3.5mm Phoenix Contact	PhoenixContact_MCV_1,5_5-G-3.5_1x05_P3.50mm_Vertical	J1103, J2001
1	C597991 FH12-50S-0.5SVA(54) Hirose Electric	Hirose_FH12-50S-0.5SVA_1x50-4MP_P0.5mm_Vertical	J1301
2	1843606 TBH-1x02-3.5mm Phoenix Contact	PhoenixContact_MCV_1,5_2-G-3.5_1x02_P3.50mm_Vertical	J1601, J1801
2	436333045822 Würth Elektronik	SMT_1045822_WRE	SW601, SW602
3	MBR120VLSFT1G onsemi	SOD-123FL	D201, D301, D1801
1	SBRT15U50SP5-13 Diodes Incorporated	POWERDI5_DIO	D501
3	TPD1E05U06DPYR Texas Instruments	Texas_DPY0002A_0.6x1mm_P0.65mm	D801, D1803, D2001
1	S115Q Yangzhou Yangjie Electronic Technology	SOD-123FL	D1802
7	FCM1608KF-601T03 600R@100MHz Taiyo Yuden	L_0603_1608Metric	FB801, FB802, FB1801, FB1802, FB1803, FB2001, FB2002
51	GRM155R62A104KE14D 100nF Murata Electronics	C_0402_1005Metric	C201, C301, C605, C606, C607, C608, C609, C610 +43
1	CC0603JRX7R9BB103 10nF YAGEO	C_0603_1608Metric	C501
1	CC0805KKX7R0BB224 220nF YAGEO	C_0805_2012Metric	C502
2	GCM188R72A223KA37D 22nF Murata Electronics	C_0603_1608Metric	C503, C1202
2	C0402C150J3GACAUTO 15pF KEMET	C_0402_1005Metric	C601, C602
12	CL05A105KL5NRNC 1uF Samsung Electro-Mechanics	C_0402_1005Metric	C603, C604, C701, C702, C801, C804, C806, C1001 +4
8	CL21A106KOQNNNE 10uF Samsung Electro-Mechanics	C_0805_2012Metric	C802, C1802, C1803, C1804, C2011, C2012, C2013, C2014
11	GRM2195C1H103JA01D 10nF Murata Electronics	C_0805_2012Metric	C807, C809, C1801, C1808, C1812, C1815, C1820, C2002 +3
2	GRM1555C1E100JA01D 10pF Murata Electronics	C_0402_1005Metric	C810, C1819
3	GRT155R6YA474KE01D 0.47uF Murata Electronics	C_0402_1005Metric	C811, C1205, C1811
6	GRM1555C2A471JE01D 470pF Murata Electronics	C_0402_1005Metric	C812, C1502, C1503, C2003, C2005, C2022
3	GRM155R61E475ME15D 4.7uF Murata Electronics	C_0402_1005Metric	C1208, C1301, C1501
2	GRM21BD72A225KE01L 2.2uF Murata Electronics	C_0805_2012Metric	C1211, C1212
2	EEEHAH101UAP 100uF Panasonic Electronic Components	CAP_EEEHAH101UAP	C1213, C1214
6	1206B105K101NT 1uF FH (Guangdong Fenghua Advanced Tech)	C_1206_3216Metric	C1701, C1702, C1703, C1901, C1902, C1903
3	GRM188R72A104KA35D 100nF Murata Electronics	C_0603_1608Metric	C1704, C1818, C1904
2	0805B105K250NT 1uF FH (Guangdong Fenghua Advanced Tech)	C_0805_2012Metric	C1705, C1905
2	1206X226M100NT 22uF FH (Guangdong Fenghua Advanced Tech)	C_1206_3216Metric	C1706, C1707
1	CGA1206X7R474K101NT 470nF	C_1206_3216Metric	C1817
2	CL31A106KAHNNNE 10uF Samsung Electro-Mechanics	C_1206_3216Metric	C1906, C1907
2	ERJ2GEJ512X 5.1k Panasonic Electronic Components	R_0402_1005Metric	R201, R202
48	0402WGF1000TCE 100 UNI-ROYAL(Uniroyal Elec)	R_0402_1005Metric	R301, R302, R304, R305, R410, R411, R1205, R1206 +40
1	RL1206FR-070R36L 0.36 YAGEO	R_1206_3216Metric	R303
29	ERJ2GEJ103X 10k PANASONIC	R_0402_1005Metric	R401, R404, R405, R502, R503, R504, R506, R507 +21
7	0402WGF4701TCE 4.7k UNI-ROYAL(Uniroyal Elec)	R_0402_1005Metric	R402, R403, R406, R407, R1503, R1504, R1903
26	RC0402FR-071KL 1k YAGEO	R_0402_1005Metric	R408, R409, R501, R505, R510, R511, R512, R603 +18
1	SCR0603F40K 40k VO	R_0603_1608Metric	R508
5	CRCW0402249RFKED 249 Vishay Intertech	R_0402_1005Metric	R509, R809, R1819, R2021, R2023
2	ERJ2GEJ270X 27 Panasonic Electronic Components	R_0402_1005Metric	R601, R602
2	FRC0402F7871TS 7.87k FOJAN	R_0402_1005Metric	R607, R1901
1	0402WGF2002TCE 20k UNI-ROYAL(Uniroyal Elec)	R_0402_1005Metric	R801
2	FRC0402F1302TS 13k FOJAN	R_0402_1005Metric	R802, R2010
10	ERA2AEB103X 10k Panasonic Electronic Components	R_0402_1005Metric	R803, R1801, R1817, R1902, R1905, R2006, R2007, R2008 +2
10	RT0402BRD073K2L 3.2k Yageo	R_0402_1005Metric	R804, R807, R811, R1803, R1804, R1808, R1810, R1821 +2
3	0603WAF1003T5E 100k UNI-ROYAL(Uniroyal Elec)	R_0603_1608Metric	R805, R2015, R2019
3	RC0402FR-0710RL 10 YAGEO	R_0402_1005Metric	R1202, R2002, R2014
2	RLH12FTCR150 0.15 TA-I Tech	R_1206_3216Metric	R1203, R1204
5	RC0402JR-07100KL 100k YAGEO	R_0402_1005Metric	R1501, R1502, R1505, R1506, R1601
6	RC0402FR-0749K9L 49.9k YAGEO	R_0402_1005Metric	R1802, R1805, R1806, R1811, R1814, R1815
1	CR0402FF6341G 6.34k LIZ Elec	R_0402_1005Metric	R1812
1	KTR03EZPF10R0 10 ROHM Semicon	R_0603_1608Metric	R1816
2	FRC0402F1103TS 110k FOJAN	R_0402_1005Metric	R1818, R1904
1	RT0402BRD07249RL 249 Yageo	R_0402_1005Metric	R2001
1	RT0402BRD0775KL 75k Yageo	R_0402_1005Metric	R2003
1	0402WGF0000TCE 0 UNI-ROYAL(Uniroyal Elec)	R_0402_1005Metric	R2009

Mouse joystick design files

The KiCad project lives in the peterpolidoro/mouse-joystick-pcb repository on GitHub; these links point at the commit this page was built from.

Layoutkicad/mouse-joystick-pcb.kicad_pcb
Schematickicad/mouse-joystick-pcb.kicad_sch
BOMdocs/generated/bom/mouse-joystick-pcb-bom.csv

Mouse joystick: common questions

What microcontroller does the Mouse joystick use?

The Mouse joystick is built around the RP2040, from the RP2040/RP2350 family.

How big is the Mouse joystick PCB?

The Mouse joystick measures 100 × 80 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Mouse joystick?

360 components, from 81 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Mouse joystick design files?

From the peterpolidoro/mouse-joystick-pcb repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Mouse joystick design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which peterpolidoro chose for the repository.

Can I test firmware for the Mouse joystick without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
