PH60 PCB layout, top view — open source Nordic nRF board by ph-design
Simulate this board

About the PH60 PCB

PH60 is an open source Nordic nRF PCB design by ph-design, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 285 × 94.6 mm, with 204 components from 47 distinct parts.

Its main chip is the nRF52840, from the Nordic nRF family. Other key parts include the TP4057 and TPS2116DRL. By type, the board carries 91 switches, 68 diodes, 24 capacitors, 8 resistors, 4 inductors and 3 ICs.

It belongs with the keyboards, iot & wireless and power & battery designs in this gallery.

From the project

A printable 60% multi-layout wireless keyboard suite.

GitHub Repo | Wiki | Discord | Taobao Store | QQ Group | Customizer

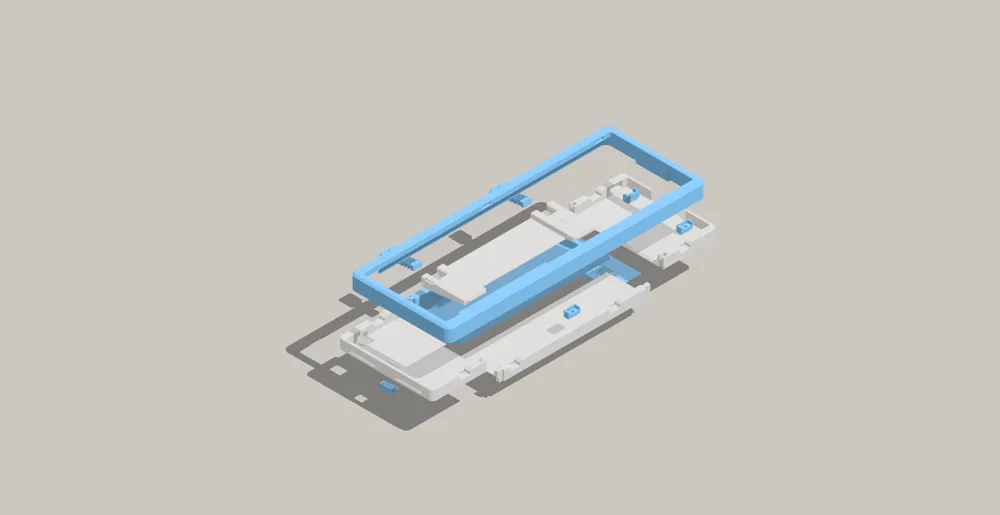

PH60 Rev.3 is a 60% tri-mode mechanical keyboard kit with an FDM 3D-printable case and the PH60 Rev.3 Multi PCB. This revision switches to the NRF52840 MCU with Bluetooth 5.3 and Nordic 2.4 GHz proprietary protocol (TBD), runs ZMKs firmware (our fork of ZMK), and redesigns the case for wireless use and multi-layout compatibility.

PH60, from the project README
From the project README

Main components on the PH60

TP4057nRF52840TPS2116DRL

PH60 bill of materials (BOM)

204 components, 47 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TP4057
U1
1
nRF52840
U2
1
TPS2116DRL
U4
1
32.768kHz
X1
1
Crystal_Generic
X2
2
Conn_01x02_Pin
J1, J2
1
USB_C_Receptacle_USB2.0_16P
J3
1
Battery
BT1
53
MX1A
S1, S2, S3, S4, S5, S6, S7, S8 +45
1
MX1A
S14
7
MX_stab
S14-x1, S29-x1, S41-x1, S41-x2, S55-x1, S60-x4, S60-x6
5
MX1A
S15, S57-1, S59-1, S62-1, S64-1
1
MX1A
S28
10
MX1A
S29-1, S43, S57, S59, S60, S61, S62, S63 +2
2
MX1A
S30, S55
1
MX1A
S41-1
1
MX1A
S42
2
MX1A
S43-1, S60-1-a1
2
MX1A
S55-1, S60-1-b1
1
MX1A
S60-1
Show 27 more
QtyPartRefs
2
MX1A
S60-1-a2, S60-1-b2
1
MX1A
S60-2
1
MX_stab
S60-x1
1
MX_stab
S60-x3
1
PRTR5V0U2X
D1
67
DIODE
D2, D3, D4, D5, D6, D7, D8, D9 +59
2
MCL1608S100MT
L1, L2
1
FHW0402UC4N7JST
L3
1
LQG15HS15NJ02D
L6
4
100n
C1, C20, C21, C22
1
820p
C2
5
4u7
C3, C5, C6, C7, C18
1
100p
C4
4
12p
C8, C10, C14, C15
1
2.2u
C9
1
4.7u
C11
1
0.5p
C12
1
0.8p
C13
3
1u
C16, C19, C23
1
47n
C17
1
1.5p
C24
1
330k
R1
1
100k
R2
1
2k
R3
1
0R
R4
2
1R
R5, R6
2
5K1
R7, R8

PH60 design files

The KiCad project lives in the ph-design/PH60 repository on GitHub; these links point at the commit this page was built from.

PH60: common questions

What microcontroller does the PH60 use?

The PH60 is built around the nRF52840, from the Nordic nRF family.

How big is the PH60 PCB?

The PH60 measures 285 × 94.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PH60?

204 components, from 47 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the PH60 design files?

From the ph-design/PH60 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the PH60 design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.

Can I test firmware for the PH60 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Nordic nRF firmware against it before you order a PCB.
