Grabette - DCDC PCB layout, top view — open source board by pollen-robotics

About the Grabette - DCDC PCB

Grabette - DCDC is an open source PCB design by pollen-robotics, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 36 × 20 mm, with 20 components from 18 distinct parts.

Other key parts include the MP2338. By type, the board carries 9 resistors, 7 capacitors, 2 connectors, 1 IC and 1 inductor.

It belongs with the sensors designs in this gallery.

From the project

Set of electronic boards for Grabette/Gripette

This repository is part of the "Grabette" project. It gathers several small PCBs of Grabette/Gripette.

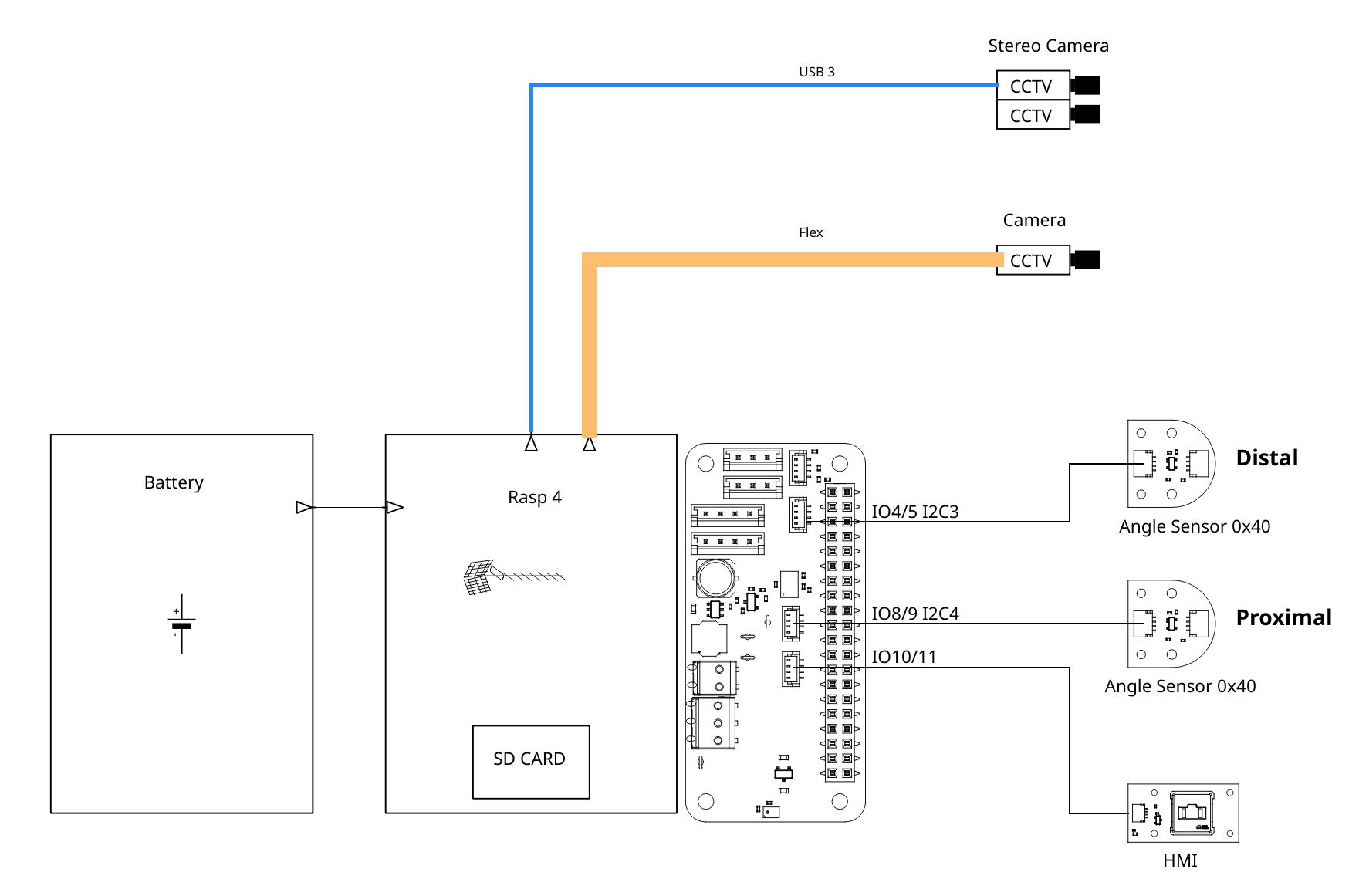

It is based on a battery-powered Raspberry PI 4 plus a HAT to which a serie of sensing elements is added. Camera, Stereo Camera, angle sensors, IMU (included on the HAT) and a button + a LED as user interface.

It also gathers data with the same Camera/Stereo Camera system and drive motors. The "under-HAT" electronic board is associated to a Raspberry PI zero 2W. It has a interface to the motors (now Feetech wiring). A Bulk-head board makes the mechanical interface with the arm that holds…

Grabette - DCDC, from the project README
From the project README

Main components on the Grabette - DCDC

MP2338

Grabette - DCDC bill of materials (BOM)

20 components, 18 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MP2338
U1
1
XT30
J1
1
Dynamixel-3
J2
1
6,8u 3A
L1
2
10u 35V
C1, C2
1
22n
C3
1
100n
C4
2
22u 16V
C5, C6
1
100p 50V
C7
1
10k
R1
1
DNP-0R
R2
1
0R
R3
1
120k
R4
1
9k1
R5
1
160k
R6
1
6k8
R7
1
100k
R8
1
51k
R9

Grabette - DCDC design files

The KiCad project lives in the pollen-robotics/elec_grabette repository on GitHub; these links point at the commit this page was built from.

Grabette - DCDC: common questions

How big is the Grabette - DCDC PCB?

The Grabette - DCDC measures 36 × 20 mm, has 2 copper layers and is 1 mm thick.

How many components are on the Grabette - DCDC?

20 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Grabette - DCDC design files?

From the pollen-robotics/elec_grabette repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Grabette - DCDC design in my own project?

Yes, under the terms of its Apache-2.0 license, which pollen-robotics chose for the repository.
