PMAN/DP - display module
About the PMAN/DP - display module
PMAN/DP - display module is an open source PCB design by pozsarzs, published on GitHub under the EUPL-1.2 license. It is a 2-layer board measuring 115.6 × 42.6 mm, with 21 components from 7 distinct parts.
By type, the board carries 9 capacitors, 3 connectors and 1 diode.
It belongs with the displays & leds and retro computing designs in this gallery.
From the project
8-bit microcomputer built from commercially available and home-built components

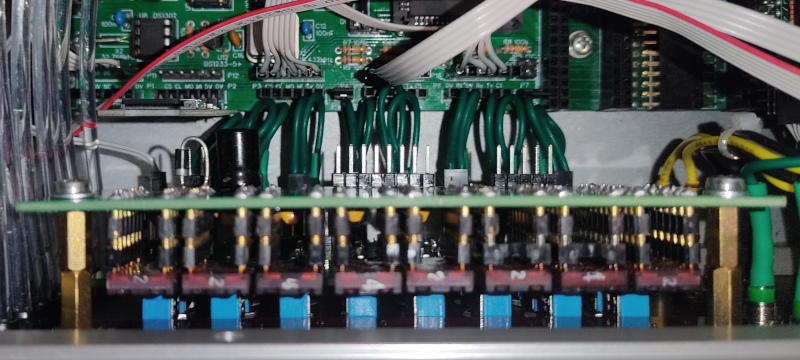

The PMAN-DP module is the component of the Manual control panel, which contains eight hexadecimal LED displays connected in a matrix. The module has four selection lines and 8-bit data input, to which the displays are connected in pairs. The blanking input of the displays is common. The module requires +5V DC to operate.
There is no jumper setting option on the module.
PMAN/DP - display module bill of materials (BOM)
21 components, 7 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_01x02_Male | PinHeader_1x02_P2.54mm_Vertical | J1 |
| 1 | Conn_01x05_Male | PinHeader_1x05_P2.54mm_Vertical | J2 |
| 1 | Conn_01x08_Male | PinHeader_1x08_P2.54mm_Vertical | J3 |
| 8 | TIL311 | DIP-14_W7.62mm_Socket_LongPads | DIS1, DIS2, DIS3, DIS4, DIS5, DIS6, DIS7, DIS8 |
| 1 | 1N4001 | D_DO-41_SOD81_P3.81mm_Vertical_AnodeUp | D1 |
| 1 | 100u | CP_Radial_D8.0mm_P3.80mm | C1 |
| 8 | 100n | C_Disc_D5.0mm_W2.5mm_P5.00mm | C2, C3, C4, C5, C6, C7, C8, C9 |
PMAN/DP - display module design files
The KiCad project lives in the pozsarzs/zacchaeus repository on GitHub; these links point at the commit this page was built from.
PMAN/DP - display module: common questions
How big is the PMAN/DP - display module?
The PMAN/DP - display module measures 115.6 × 42.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the PMAN/DP - display module?
21 components, from 7 distinct parts. The full bill of materials is listed on this page.
Where can I download the PMAN/DP - display module design files?
From the pozsarzs/zacchaeus repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the PMAN/DP - display module design in my own project?
Yes, under the terms of its EUPL-1.2 license, which pozsarzs chose for the repository.
