PCOX - COVOX module

pozsarzs·zacchaeus·Zacchaeus computer/hardware/PCOX COVOX module/pcox/pcox.kicad_pcb

PCOX - COVOX module layout, top view — open source board by pozsarzs

About the PCOX - COVOX module

PCOX - COVOX module is an open source PCB design by pozsarzs, published on GitHub under the EUPL-1.2 license. It is a 2-layer board measuring 102.6 × 72.4 mm, with 56 components from 28 distinct parts.

Other key parts include the 74LS32, 74LS273, 74HCT688, MC3340P and 7809. By type, the board carries 22 resistors, 20 capacitors, 6 ICs, 5 connectors, 2 diodes and 1 switch.

It belongs with the audio and retro computing designs in this gallery.

From the project

8-bit microcomputer built from commercially available and home-built components

This BP-80 bus-compatible expansion board combines the classic The Covox Speech Thing with a headphone amplifier. It uses a simple R-2R resistor ladder to convert 8-bit digital audio into analog output. The board has LINE and headphone outputs, with headphone volume control. The module requires +5V and +12V DC to operate.

The module is connected to the BP80 expansion socket.

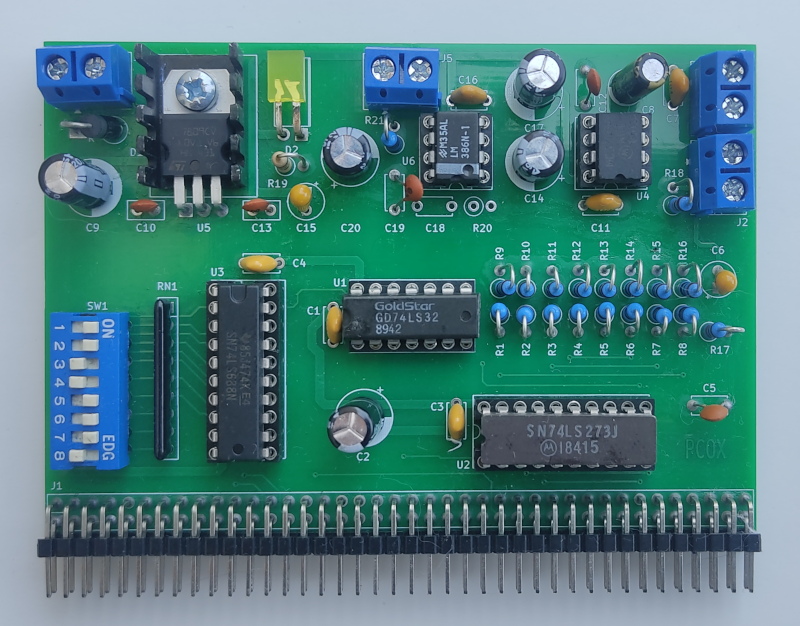

PCOX - COVOX module, from the project README — From the project README

Main components on the PCOX - COVOX module

74LS32 74LS273 74HCT688MC3340P7809 LM386

PCOX - COVOX module bill of materials (BOM)

56 components, 28 distinct parts.

Qty	Part	Footprint	Refs
1	74LS32	DIP-14_W7.62mm_Socket_LongPads	U1
1	74LS273	DIP-20_W7.62mm_Socket_LongPads	U2
1	74HCT688	DIP-20_W7.62mm_Socket_LongPads	U3
1	MC3340P	DIP-8_W7.62mm_Socket_LongPads	U4
1	7809	TO-220-3_Horizontal_TabDown	U5
1	LM386	DIP-8_W7.62mm_Socket_LongPads	U6
1	Conn_02x40_Top_Bottom	PinHeader_2x40_P2.54mm_Vertical_Top_Bottom	J1
4	Screw_Terminal_01x02	TerminalBlock_MaiXu_MX126-5.0-02P_1x02_P5.00mm	J2, J3, J4, J5
1	SW_DIP_x08	DIP-16_W7.62mm_LongPads	SW1
1	1N5395	D_DO-15_P5.08mm_Vertical_KathodeUp	D1
1	LED	LED_Rectangular_W5.0mm_H2.0mm_Horizontal_O1.27mm_Z1.0mm	D2
6	100n	C_Disc_D5.0mm_W2.5mm_P5.00mm	C1, C3, C4, C7, C11, C16
1	47u	CP_Radial_D8.0mm_P3.80mm	C2
1	10n	C_Disc_D5.0mm_W2.5mm_P5.00mm	C5
2	1u Ta	CP_Radial_Tantal_D5.0mm_P2.50mm	C6, C15
1	10u	CP_Radial_D5.0mm_P2.50mm	C8
3	220u	CP_Radial_D8.0mm_P3.80mm	C9, C14, C20
2	1n	C_Disc_D5.0mm_W2.5mm_P2.50mm	C10, C13
2	50n	C_Disc_D5.0mm_W2.5mm_P5.00mm	C12, C19
1	100u	CP_Radial_D8.0mm_P3.80mm	C17

Show 8 more

Qty	Part	Footprint	Refs
1	**	C_Disc_D5.0mm_W2.5mm_P5.00mm	C18
8	20k	R_Axial_DIN0207_L6.3mm_D2.5mm_P2.54mm_Vertical	R1, R2, R3, R4, R5, R6, R7, R8
9	10k	R_Axial_DIN0207_L6.3mm_D2.5mm_P2.54mm_Vertical	R9, R10, R11, R12, R13, R14, R15, R16 +1
1	47k-100k	R_Axial_DIN0207_L6.3mm_D2.5mm_P2.54mm_Vertical	R18
1	470	R_Axial_DIN0207_L6.3mm_D2.5mm_P2.54mm_Vertical	R19
1	*	R_Axial_DIN0207_L6.3mm_D2.5mm_P2.54mm_Vertical	R20
1	10	R_Axial_DIN0207_L6.3mm_D2.5mm_P2.54mm_Vertical	R21
1	8x1k	R_Array_SIP9	RN1

PCOX - COVOX module design files

The KiCad project lives in the pozsarzs/zacchaeus repository on GitHub; these links point at the commit this page was built from.

PCOX - COVOX module: common questions

How big is the PCOX - COVOX module?

The PCOX - COVOX module measures 102.6 × 72.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PCOX - COVOX module?

56 components, from 28 distinct parts. The full bill of materials is listed on this page.

Where can I download the PCOX - COVOX module design files?

From the pozsarzs/zacchaeus repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the PCOX - COVOX module design in my own project?

Yes, under the terms of its EUPL-1.2 license, which pozsarzs chose for the repository.
