Canfd mc hardware PCB layout, top view — open source ESP32 board by Prinsessen

About the Canfd mc hardware PCB

Canfd mc hardware is an open source ESP32 PCB design by Prinsessen, published on GitHub under the MIT license. It is a 4-layer board measuring 55 × 32 mm, with 40 components from 28 distinct parts.

Its main chip is the ESP32-S3-WROOM-1U-N16R8, from the ESP32 family. Other key parts include the MCP2518FDT-E/SL, LM5164DDAR and TCAN332GDR. By type, the board carries 17 capacitors, 9 resistors, 4 ICs, 3 diodes, 2 inductors and 1 crystal.

It belongs with the rf & radio and power & battery designs in this gallery.

From the project

canfd-mc-hardware

A 55 × 32 mm, 4-layer board that replaces the LilyGO T-2CANFD in the indian-thunderstroke-canbus project: ESP32-S3-WROOM-1U + MCP2518FD + TCAN332G, fed from the bike's permanent 12 V through an LM5164 buck. Same pin map as the LilyGO board, so the firmware runs unchanged (sniffer-t2can environment).

What it drops from the LilyGO board, on purpose: the isolated transceiver (one machine, one ground — the isolation was bridged the moment it was wired in, and its DC-DC was three quarters of the sleep current), the USB connector, the screw terminals, the second CAN channel, and the 120 Ω…

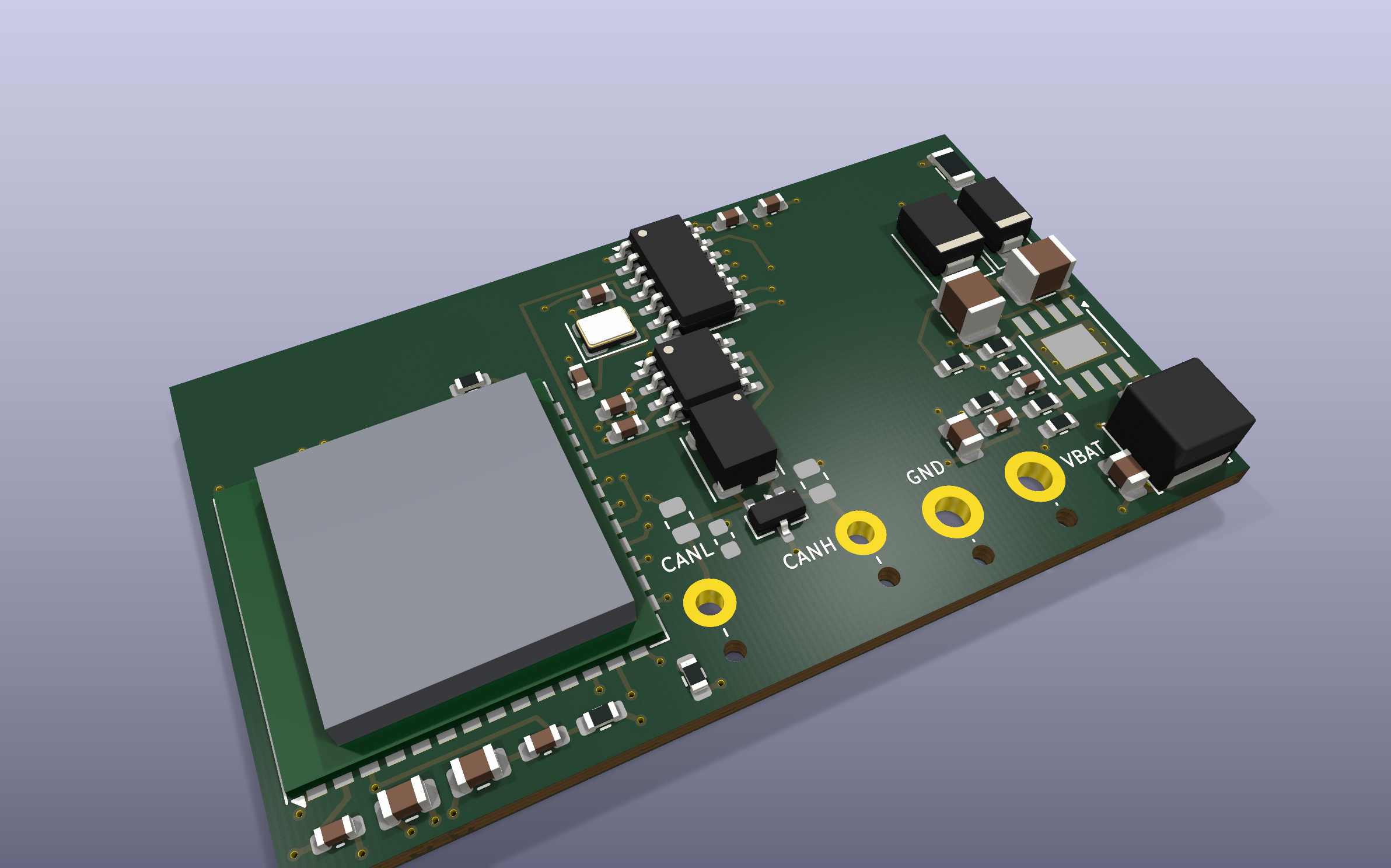

Canfd mc hardware, from the project README
From the project README

Main components on the Canfd mc hardware

ESP32-S3-WROOM-1U-N16R8MCP2518FDT-E/SLLM5164DDARTCAN332GDR

Canfd mc hardware bill of materials (BOM)

40 components, 28 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-S3-WROOM-1U-N16R8
U1
1
MCP2518FDT-E/SL
U2
1
LM5164DDAR
U3
1
TCAN332GDR
U4
1
C9010
40MHz 15pF
X1
1
4.7nF
CT1
1
C151135
1A 63V
F1
2
60.4R
RT1, RT2
1
SS36
D1
1
SMBJ24CA
D2
1
PESD2CAN
D3
1
DLW43SH101XK2L
L1
1
22UH
22uH
L2
2
C385986
4.7uF 100V X7R
C1, C2
4
C45783
22uF 10V
C3, C4, C12, C13
2
C1604
2.2nF 50V
C5, C6
1
C1657
270pF C0G
C7
2
C1653
22pF C0G
C10, C11
3
100NF
100nF
C14, C16, C18
1
10UF
10uF
C15
Show 8 more
QtyPartRefs
1
4.7UF
4.7uF
C17
1
1UF
1uF
C19
1
27.4K
27.4k
R1
2
100K
100k
R2, R6
1
57.6K
57.6k
R3
1
150K
150k
R4
1
365K
365k
R5
3
10K
10k
R7, R8, R9

Canfd mc hardware design files

The KiCad project lives in the Prinsessen/canfd-mc-hardware repository on GitHub; these links point at the commit this page was built from.

Canfd mc hardware: common questions

What microcontroller does the Canfd mc hardware use?

The Canfd mc hardware is built around the ESP32-S3-WROOM-1U-N16R8, from the ESP32 family.

How big is the Canfd mc hardware PCB?

The Canfd mc hardware measures 55 × 32 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Canfd mc hardware?

40 components, from 28 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Canfd mc hardware design files?

From the Prinsessen/canfd-mc-hardware repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Canfd mc hardware design in my own project?

Yes, under the terms of its MIT license, which Prinsessen chose for the repository.

Can I test firmware for the Canfd mc hardware without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
