About the KicadJE uP DAC PCB

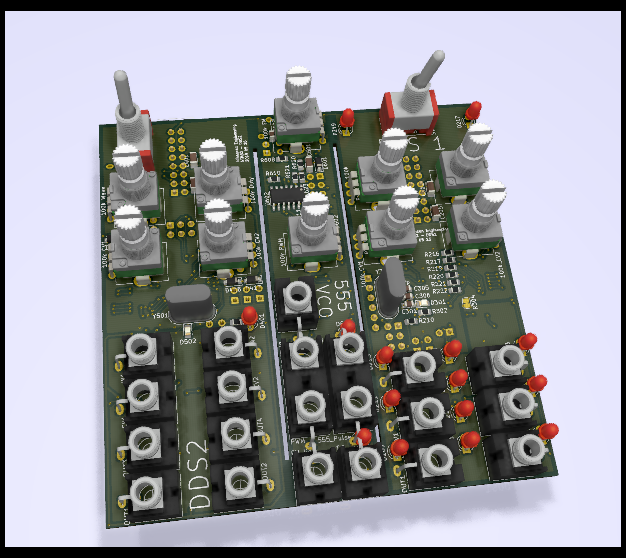

KicadJE uP DAC is an open source STM32 PCB design by promesoft, published on GitHub. It is a 2-layer board measuring 100 × 100 mm, with 269 components from 86 distinct parts.
Its main chip is the STM32F103C8Tx, from the STM32 family. Other key parts include the TL072, MCP4822, ATmega32A-AU, AMS1117-3.3 and TLC555. By type, the board carries 106 resistors, 55 capacitors, 43 diodes, 30 connectors, 11 ICs and 8 jumpers.
It belongs with the audio designs in this gallery.
From the project
STM32 and ATMEGA32A - Eurorack DAC MCP4822 output - Use for Sub 400Hz DDS, LFO, ADSR, Effects - and a small 555 VCO - DDS1 DDS2
https://github.com/promesoft/KicadJELFO1

Main components on the KicadJE uP DAC
KicadJE uP DAC bill of materials (BOM)
269 components, 86 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | TL072 | AJ_SO-8_5.3x6.2mm_P1.27mm | U201, U401, U402 |
| 2 | MCP4822 | AJ_SO-8_5.3x6.2mm_P1.27mm | U202, U405 |
| 1 | ATmega32A-AU | TQFP-44_10x10mm_P0.8mm | U301 |
| 1 | AMS1117-3.3 | SOT-223-3_TabPin2 | U501 |
| 1 | STM32F103C8Tx | LQFP-48_7x7mm_P0.5mm | U502 |
| 1 | TLC555 | AJ_SO-8_5.3x6.2mm_P1.27mm | U601 |
| 2 | TL074 | SOIC-14_3.9x8.7mm_P1.27mm | U602, U603 |
| 1 | MMBT2222A | SOT-23 | Q601 |
| 1 | 16MHz | Crystal_HC49-U_Vertical | Y301 |
| 1 | 8 MHz | Crystal_HC49-U_Vertical | Y501 |
| 3 | CV1 | PJ301SM | J201, J401, J601 |
| 2 | CV2 | PJ301SM | J202, J402 |
| 2 | OUT1 | PJ301SM | J203, J403 |
| 2 | OUT2 | PJ301SM | J204, J404 |
| 2 | IN1 | PJ301SM | J205, J407 |
| 2 | IN2 | PJ301SM | J206, J408 |
| 1 | AVR-ISP-6 | PinHeader_2x03_P2.54mm_Vertical | J301 |
| 1 | UART | PinHeader_1x06_P2.54mm_Vertical | J302 |
| 1 | OUT3 | PJ301SM | J405 |
| 1 | OUT4 | PJ301SM | J406 |
Show 66 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | I2C | PinHeader_1x04_P2.54mm_Vertical | J409 |
| 1 | BOOT | PinHeader_2x03_P2.54mm_Vertical | J501 |
| 1 | UART | PinHeader_1x04_P2.54mm_Vertical | J502 |
| 1 | USB_B_Micro | USB_Micro-B_Wuerth_629105150521 | J503 |
| 1 | FM_lin | PJ301SM | J602 |
| 1 | Sync | PJ301SM | J603 |
| 1 | PWM | PJ301SM | J604 |
| 1 | Ramp | PJ301SM | J605 |
| 1 | Tri | PJ301SM | J606 |
| 1 | 555_Pulse | PJ301SM | J608 |
| 2 | Doepfer_Power_16pin | IDC-Header_2x08_Pitch2.54mm_Straight | P201, P401 |
| 1 | Doepfer_Power_10pin | IDC-Header_2x05_Pitch2.54mm_Straight | P601 |
| 1 | SS | PinSocket_1x02_P2.54mm_Vertical | JP201 |
| 1 | MOSI | PinSocket_1x02_P2.54mm_Vertical | JP202 |
| 2 | SCK | PinSocket_1x02_P2.54mm_Vertical | JP204, JP404 |
| 1 | CS | PinSocket_1x02_P2.54mm_Vertical | JP403 |
| 1 | SDI | PinSocket_1x02_P2.54mm_Vertical | JP405 |
| 1 | PWM1 | PinSocket_1x02_P2.54mm_Vertical | JP406 |
| 1 | PWM2 | PinSocket_1x02_P2.54mm_Vertical | JP407 |
| 1 | 100k_CV1 | Potentiometer_China_RK09_Single_Vertical_AJ | RV201 |
| 1 | 100k_CV2 | Potentiometer_China_RK09_Single_Vertical_AJ | RV202 |
| 2 | 100k | Potentiometer_China_RK09_Single_Vertical_AJ | RV203, RV204 |
| 1 | 100k CV1 | Potentiometer_China_RK09_Single_Vertical_AJ | RV401 |
| 1 | 100k Wave | Potentiometer_China_RK09_Single_Vertical_AJ | RV402 |
| 1 | 100k Duty | Potentiometer_China_RK09_Single_Vertical_AJ | RV403 |
| 1 | 100k CV2 | Potentiometer_China_RK09_Single_Vertical_AJ | RV404 |
| 1 | 100k FM | Potentiometer_China_RK09_Single_Vertical_AJ | RV601 |
| 1 | 5k | Potentiometer_Piher_PT-6-V_Vertical | RV602 |
| 1 | 100k PWM | Potentiometer_China_RK09_Single_Vertical_AJ | RV603 |
| 2 | SW_SPDT | SP1MS1 | SW201, SW401 |
| 24 | 1N1007 | D_SOD-123 | D201, D202, D203, D204, D208, D212, D216, D220 +16 |
| 15 | LED | LED_D3.0mm | D205, D206, D207, D209, D210, D211, D213, D214 +7 |
| 3 | LED | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D301, D501, D502 |
| 1 | Vactrol | LED_D3.0mm | D611 |
| 12 | 1u | C_1206_3216Metric_Pad1.42x1.75mm_HandSolder | C201, C205, C207, C210, C401, C404, C407, C408 +4 |
| 32 | 100n | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C202, C203, C204, C206, C208, C209, C211, C212 +24 |
| 2 | 22p | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C305, C306 |
| 2 | 20p | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C501, C507 |
| 1 | 470n | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C502 |
| 3 | 1n | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C606, C610, C611 |
| 1 | 22n | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C607 |
| 1 | 10n | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C608 |
| 1 | 220n | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C609 |
| 46 | 10k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R201, R202, R203, R204, R205, R206, R208, R209 +38 |
| 14 | 100R | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R207, R210, R213, R216, R217, R219, R220, R221 +6 |
| 5 | 1k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R218, R223, R302, R615, R625 |
| 2 | 0R | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R301, R504 |
| 2 | OPEN | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R303, R634 |
| 7 | 100k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R435, R436, R509, R510, R605, R609, R637 |
| 1 | 820R | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R437 |
| 1 | 3k3 | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R501 |
| 2 | 2k2 | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R502, R631 |
| 3 | 10R | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R507, R511, R512 |
| 2 | 1k5 | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R508, R608 |
| 1 | 12k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R602 |
| 6 | 47k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R603, R610, R616, R617, R618, R619 |
| 1 | 150k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R604 |
| 1 | LDR03 | R_LDR_4.9x4.2mm_P2.54mm_Vertical | R607 |
| 2 | 20k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R614, R627 |
| 2 | 62k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R620, R623 |
| 2 | 100k_test | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R621, R622 |
| 2 | 2k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R629, R630 |
| 1 | 2M2 | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R632 |
| 1 | 3k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R633 |
| 1 | 120k | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R635 |
| 1 | 1k8 | R_0805_2012Metric_Pad1.15x1.40mm_HandSolder | R636 |
KicadJE uP DAC design files
The KiCad project lives in the promesoft/KicadJE_uP_DAC repository on GitHub; these links point at the commit this page was built from.
KicadJE uP DAC: common questions
What microcontroller does the KicadJE uP DAC use?
The KicadJE uP DAC is built around the STM32F103C8Tx, from the STM32 family.
How big is the KicadJE uP DAC PCB?
The KicadJE uP DAC measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the KicadJE uP DAC?
269 components, from 86 distinct parts. The full bill of materials is listed on this page.
Where can I download the KicadJE uP DAC design files?
From the promesoft/KicadJE_uP_DAC repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the KicadJE uP DAC design in my own project?
The repository has no license, so all rights stay with promesoft. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the KicadJE uP DAC without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
