Tiebox PCB layout, top view — open source RP2040/RP2350 board by quark-works

About the Tiebox PCB

Tiebox is an open source RP2040/RP2350 PCB design by quark-works, published on GitHub. It is a 2-layer board measuring 304 × 149 mm, with 79 components from 23 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the XC6206, USBLC6-2SC6 and W25Q128JVS. By type, the board carries 17 capacitors, 11 resistors, 4 ICs, 3 diodes, 1 crystal and 1 connector.

From the project

Labels are already assigned to the default pinout of the most popular firmware available as well as in stock parts for every component from LCSC. I recommend using the Fabrication Toolkit plugin that can be installed through KiCad's PCM.

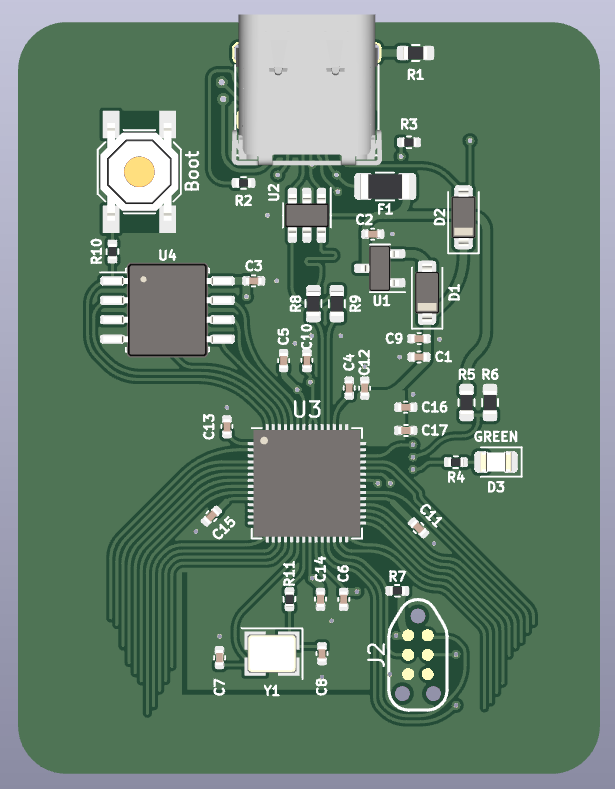

Tiebox, from the project README
From the project README

Main components on the Tiebox

XC6206USBLC6-2SC6RP2040W25Q128JVS

Tiebox bill of materials (BOM)

79 components, 23 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
XC6206
U1
1
USBLC6-2SC6
U2
1
RP2040
U3
1
W25Q128JVS
U4
1
12MHZ
12MHz
Y1
1
C456013
USB C Connector
J1
20
CHOC_V1_SW_HS
choc_v1_SW_HS
CH1, CH2, CH3, CH4, CH5, CH6, CH7, CH8 +12
1
C70076
500 mA
F1
20
MX_SW_HS
MX1, MX2, MX3, MX4, MX5, MX6, MX7, MX8 +12
1
C318884
Boot
SW1
2
C8598
Schottky Diode
D1, D2
1
C2297
GREEN
D3
4
1UF
1uF
C1, C2, C4, C10
10
100NF
100nF
C3, C5, C6, C11, C12, C13, C14, C15 +2
2
22PF
22pF
C7, C8
1
10UF
10uF
C9
1
1M
R1
2
5.1K
5.1k
R2, R3
2
10K
10k
R4, R7
1
5.6K
5.6k
R5
Show 3 more
QtyPartRefs
1
10K
10k
R6
2
27
R8, R9
2
1k
R10, R11

Tiebox design files

The KiCad project lives in the quark-works/tiebox repository on GitHub; these links point at the commit this page was built from.

Tiebox: common questions

What microcontroller does the Tiebox use?

The Tiebox is built around the RP2040, from the RP2040/RP2350 family.

How big is the Tiebox PCB?

The Tiebox measures 304 × 149 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Tiebox?

79 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Tiebox design files?

From the quark-works/tiebox repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Tiebox design in my own project?

The repository has no license, so all rights stay with quark-works. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Tiebox without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
