ESP32-S3-Mini-Development-Board

Rakesh-Bhandari·ESP32-S3-Mini-Development-Board·Hardware/ESP32-s3-TestBoard.kicad_pcb

ESP32-S3-Mini-Development-Board layout, top view — open source ESP32 board by Rakesh-Bhandari

About the ESP32-S3-Mini-Development-Board

ESP32-S3-Mini-Development-Board is an open source ESP32 PCB design by Rakesh-Bhandari, published on GitHub. It is a 4-layer board measuring 28.6 × 38 mm, with 29 components from 16 distinct parts.

Its main chip is the ESP32-C3-WROOM-02, from the ESP32 family. Other key parts include the USBLC6-2SC6 and AP2112K-3.3. By type, the board carries 10 capacitors, 9 resistors, 3 ICs, 3 connectors, 2 switches and 1 crystal.

It belongs with the dev boards & breakouts and iot & wireless designs in this gallery.

From the project

A compact, USB Type-C powered ESP32-S3 Mini Development Board designed in KiCad 9 for embedded systems development, IoT prototyping, and firmware testing. The board exposes all essential GPIOs through standard 2.54 mm headers while integrating onboard USB programming, 3.3V regula

A compact, USB Type-C powered ESP32-S3 Mini Development Board designed in KiCad 9 for embedded systems development, IoT prototyping, and firmware testing. The board exposes all essential GPIOs through standard 2.54 mm headers while integrating onboard USB programming, 3.3V regulation, Boot/Reset circuitry, and crystal oscillator.

- ESP32-S3-WROOM-1-N16R8 Module - USB Type-C Interface - USB-to-UART Programming - 3.3V LDO Power Supply - Boot Button - Reset (EN) Button - External Crystal Oscillator - All GPIOs Broken Out - Standard 2.54 mm Pin Headers - Mounting Holes - Compact Form Factor -…

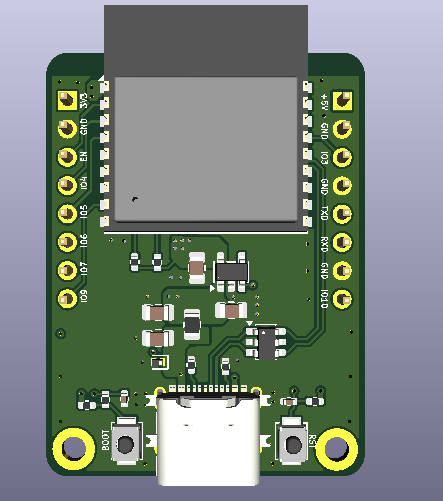

ESP32-S3-Mini-Development-Board, from the project README
From the project README

Main components on the ESP32-S3-Mini-Development-Board

USBLC6-2SC6AP2112K-3.3ESP32-C3-WROOM-02

ESP32-S3-Mini-Development-Board bill of materials (BOM)

29 components, 16 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
USBLC6-2SC6
U1
1
AP2112K-3.3
U2
1
ESP32-C3-WROOM-02
U3
1
Crystal
Y1
1
USB_C_Receptacle_USB2.0_16P
J1
2
Conn_01x08_Pin
J2, J3
2
SW_Push
SW1, SW2
1
PESD5V0L1ULD
D1
5
4u7
C1, C2, C3, C4, C5
3
100n
C6, C9, C10
2
TBD
C7, C8
2
5k1
R1, R2
1
0R
R3
1
TBD
R4
4
100R
R5, R7, R8, R9
1
10k
R6

ESP32-S3-Mini-Development-Board design files

The KiCad project lives in the Rakesh-Bhandari/ESP32-S3-Mini-Development-Board repository on GitHub; these links point at the commit this page was built from.

ESP32-S3-Mini-Development-Board: common questions

What microcontroller does the ESP32-S3-Mini-Development-Board use?

The ESP32-S3-Mini-Development-Board is built around the ESP32-C3-WROOM-02, from the ESP32 family.

How big is the ESP32-S3-Mini-Development-Board?

The ESP32-S3-Mini-Development-Board measures 28.6 × 38 mm, has 4 copper layers and is 1 mm thick.

How many components are on the ESP32-S3-Mini-Development-Board?

29 components, from 16 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ESP32-S3-Mini-Development-Board design files?

From the Rakesh-Bhandari/ESP32-S3-Mini-Development-Board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the ESP32-S3-Mini-Development-Board design in my own project?

The repository has no license, so all rights stay with Rakesh-Bhandari. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the ESP32-S3-Mini-Development-Board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
