RP2040-Eins

red-scorp·RP2040-Eins

RP2040-Eins PCB layout, top view — open source RP2040/RP2350 board by red-scorp
Simulate this board

About the RP2040-Eins PCB

RP2040-Eins is an open source RP2040/RP2350 PCB design by red-scorp, published on GitHub. It is a 4-layer board measuring 68.6 × 53.3 mm, with 64 components from 34 distinct parts.

Its main chip is the C2040, from the RP2040/RP2350 family. Other key parts include the W25Q128JVS, C6187, C2456297 and C6186. By type, the board carries 20 capacitors, 14 resistors, 10 connectors, 5 ICs, 5 transistors and 5 diodes.

It belongs with the power & battery designs in this gallery.

From the project

RP2040-based board with Arduino Uno footprint

The RP2040-Eins project aims to create a replacement for the Arduino UNO R3 or Arduino M0 using the RP2040 MCU.

The RP2040-Eins board is a 4-layer design intended to accommodate the popular Raspberry Pi RP2040 MCU within the standard Arduino UNO R3 footprint.

This board is crafted in Germany, and its name, "RP2040-Eins", incorporates the German word "Eins" (pronounced as "eye-ns"), which translates to "one". This name choice reflects the use of the same form-factor as the Arduino "Uno", which means "one" in Italian.

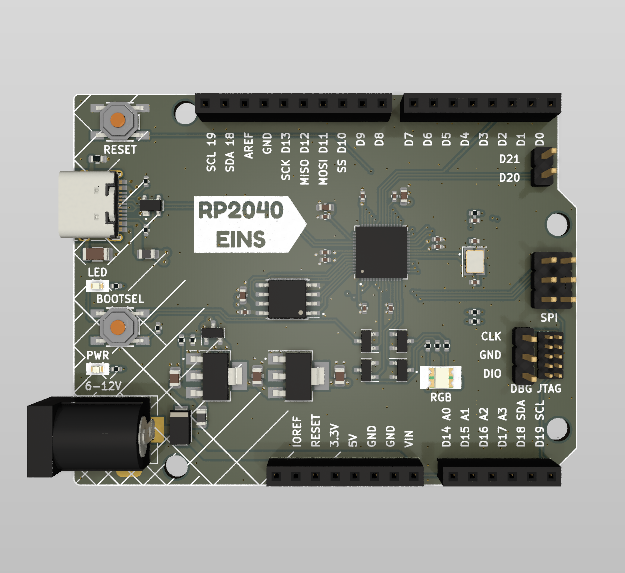

RP2040-Eins, from the project README
From the project README

Main components on the RP2040-Eins

W25Q128JVSC2040C6187C2456297C6186

RP2040-Eins bill of materials (BOM)

64 components, 34 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
W25Q128JVS
U1
1
C2040
RP2040
U2
1
C6187
AMS1117-5.0
U3
1
C2456297
W25Q128JVEIQ
U4
1
C6186
AMS1117-3.3
U5
1
C15127
AO3401A
Q1
4
C20917
AO3400A
Q2, Q3, Q4, Q5
1
C9002
12MHz
Y1
1
C16214
CONN_PWR
J1
1
C390684
CONN_ICSP
J2
1
C40877
CONN_A
J3
1
C429957
CONN_P
J4
1
C2685154
CONN_X
J5
1
C2937625
CONN_DBG
J6
1
C2935953
CONN_JTAG
J7
1
C429957
CONN_D1
J8
1
C2935981
CONN_D2
J9
1
C2689844
CONN_USB
J10
1
C318884
BOOTSEL
SW1
1
C318884
RESET
SW2
Show 14 more
QtyPartRefs
2
C2286
RED
D1, D2
1
C5158049
PRTR5V0U2X
D3
1
C965844
XL-3227RGB-RF
D4
1
C2480
SS14
D5
2
C1015
100@100MHz
FB1, FB2
3
C1604
2.2uF
C1, C5, C16
11
C1525
100nF
C2, C3, C4, C6, C7, C8, C9, C10 +3
3
C15850
10uF
C12, C14, C15
2
C1547
12pF
C19, C20
1
C106074
4.7nF 1kV
C21
7
C25905
5k1
R1, R6, R10, R11, R13, R14, R15
5
C25744
10k
R3, R4, R5, R8, R9
1
C11702
1k
R7
1
C136593
1M
R12

RP2040-Eins design files

The KiCad project lives in the red-scorp/RP2040-Eins repository on GitHub; these links point at the commit this page was built from.

RP2040-Eins: common questions

What microcontroller does the RP2040-Eins use?

The RP2040-Eins is built around the C2040, from the RP2040/RP2350 family.

How big is the RP2040-Eins PCB?

The RP2040-Eins measures 68.6 × 53.3 mm, has 4 copper layers and is 1.6062 mm thick.

How many components are on the RP2040-Eins?

64 components, from 34 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the RP2040-Eins design files?

From the red-scorp/RP2040-Eins repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the RP2040-Eins design in my own project?

The repository has no license, so all rights stay with red-scorp. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the RP2040-Eins without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
