Tri-Hard-Slab-Arcade-Edition PCB layout, top view — open source RP2040/RP2350 board by Rev1s10n

About the Tri-Hard-Slab-Arcade-Edition PCB

Tri-Hard-Slab-Arcade-Edition is an open source RP2040/RP2350 PCB design by Rev1s10n, published on GitHub. It is a 2-layer board measuring 264 × 163 mm, with 141 components from 45 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the TLV73333PDBV, W25Q128JVS and SN74LV1T34DBVR. By type, the board carries 53 capacitors, 37 diodes, 27 switches, 13 resistors, 4 ICs and 2 fuses.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

All button controller powered by GP2040-CE firmware, with custom 16 buttons layout.

I would suggest not build this yourself at this momemnt as there's some design flaws, which makes it really difficult to assemble A new case design might come in the future

Close up photos and feature explain: Fully redesigned circuit board with custom layout for my own comfort, passthrough device is now within the enclosure 1 additional tactile switch for function key, and custom display layout Passthrough device can be selected with this slide switch This time these switches is on the top side

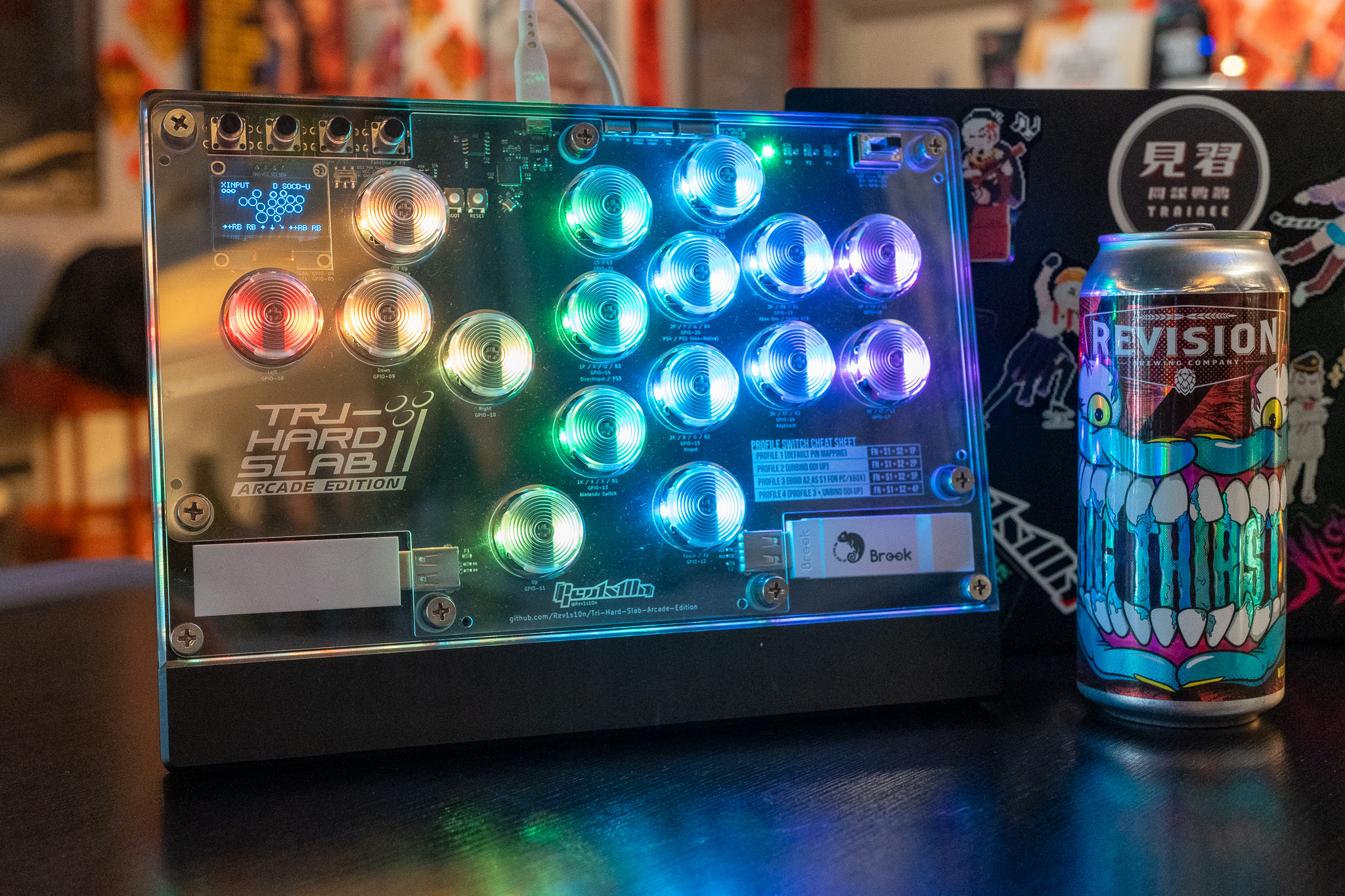

Tri-Hard-Slab-Arcade-Edition, from the project README
From the project README

Main components on the Tri-Hard-Slab-Arcade-Edition

TLV73333PDBVW25Q128JVSRP2040SN74LV1T34DBVR

Tri-Hard-Slab-Arcade-Edition bill of materials (BOM)

141 components, 45 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TLV73333PDBV
U1
1
W25Q128JVS
U2
1
RP2040
U3
1
SN74LV1T34DBVR
U4
1
CRYSTAL_GND24
Crystal_GND24
Y1
1
~
DS1
2
C116170
Fuse
F1, F2
2
SW_Push
SW1, SW2
1
C2888706
Menu
SW3
1
C2888706
Guide
SW4
1
C2888706
View
SW5
1
C2888706
FN
SW6
1
Left
SW7
1
Down
SW8
1
Right
SW9
1
Up
SW10
1
1P / X
SW11
1
2P / Y
SW12
1
3P / RB
SW13
1
4P / LB
SW14
Show 25 more
QtyPartRefs
1
1K / A
SW15
1
2K / B
SW16
1
3K / RT
SW17
1
4K / LT
SW18
1
L3
SW19
1
R3
SW20
1
Touch
SW21
1
DDI_Up
SW22
1
C431547
SW_SPDT
SW23
2
SW_SP3T
SW24, SW25
1
C2837066
SW_DPDT
SW26
1
C2848925
SW_DPDT
SW27
1
C2848616
~
USB1
2
C2689981
USB_A
USB2, USB3
36
SK6812
D1, D2, D3, D4, D5, D6, D7, D8 +28
1
C15879
~
D37
4
1u
C1, C2, C8, C10
2
30P
30p
C3, C4
47
100N
100n
C5, C6, C7, C9, C11, C12, C13, C14 +39
2
5.1K
5.1k
R1, R2
2
1k
R3, R5
2
10K
10k
R4, R10
2
27
R6, R7
4
22
R8, R9, R12, R13
1
0
R11

Tri-Hard-Slab-Arcade-Edition design files

The KiCad project lives in the Rev1s10n/Tri-Hard-Slab-Arcade-Edition repository on GitHub; these links point at the commit this page was built from.

Tri-Hard-Slab-Arcade-Edition: common questions

What microcontroller does the Tri-Hard-Slab-Arcade-Edition use?

The Tri-Hard-Slab-Arcade-Edition is built around the RP2040, from the RP2040/RP2350 family.

How big is the Tri-Hard-Slab-Arcade-Edition PCB?

The Tri-Hard-Slab-Arcade-Edition measures 264 × 163 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Tri-Hard-Slab-Arcade-Edition?

141 components, from 45 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Tri-Hard-Slab-Arcade-Edition design files?

From the Rev1s10n/Tri-Hard-Slab-Arcade-Edition repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Tri-Hard-Slab-Arcade-Edition design in my own project?

The repository has no license, so all rights stay with Rev1s10n. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Tri-Hard-Slab-Arcade-Edition without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
