EPS
rgw3d·1KCubeSat_Hardware·eps_board/EPS.kicad_pcb
About the EPS PCB
EPS is an open source STM32 PCB design by rgw3d, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 85 × 85 mm, with 629 components from 71 distinct parts.
Its main chip is the STM32L496ZGTX, from the STM32 family. Other key parts include the MR25H10, TPL5010, TPS270, 74LVC1G07 and SN65HVD230. By type, the board carries 278 resistors, 192 capacitors, 84 ICs, 32 transistors, 19 diodes and 12 connectors.
It belongs with the science & space designs in this gallery.
From the project
Hardware design files for my $1000 CubeSat.
Hardware design files for my $1000 cubesat.
Schematics & Layouts are done using KiCad V5.1+

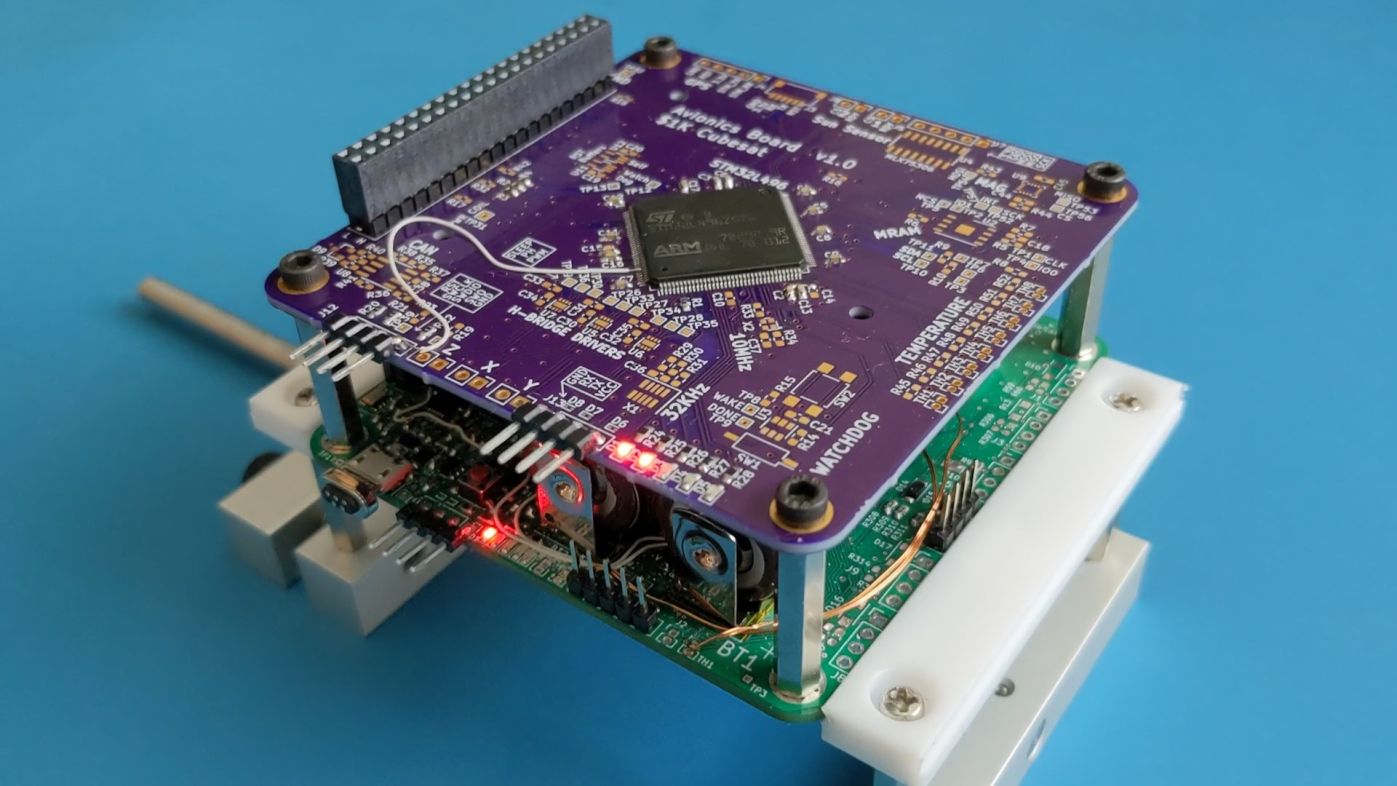

My progress so far, what I'm calling the ½ Cubesat. The avionics board is stacked on the eps board
See my fork of the OpenLST repo for more information!

Main components on the EPS
EPS bill of materials (BOM)
629 components, 71 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STM32L496ZGTX STM32L496ZGTx | LQFP-144_20x20mm_P0.5mm | U1 |
| 1 | MR25H10 | DFN-8-1EP_6x5mm_P1.27mm_EP2x2mm | U2 |
| 1 | TPL5010 | SOT-23-6 | U3 |
| 4 | TPS270 | TSOT-23-6_HandSoldering | U4, U5, U17, U18 |
| 2 | 74LVC1G07 | SOT-353_SC-70-5_Handsoldering | U6, U7 |
| 1 | SN65HVD230 | SOIC-8_3.9x4.9mm_P1.27mm | U8 |
| 2 | LTC4066 | QFN-24-1EP_4x4mm_P0.5mm_EP2.6x2.6mm_0.4mmThermalVias | U9, U12 |
| 2 | MCP65R46 | SOT-23-6_Handsoldering | U10, U13 |
| 18 | FPF2123 | SOT-23-5_HandSoldering | U11, U14, U22, U26, U30, U34, U38, U42 +10 |
| 1 | LTC4415 | MSOP-16-1EP_3x4.039mm_P0.5mm_EP1.651x2.845mm_0.3mmThermalVias | U15 |
| 2 | LTC3130-1 | MSOP-16-1EP_3x4.039mm_P0.5mm_EP1.651x2.845mm_0.3mmThermalVias | U16, U83 |
| 16 | NCS211 | SOT-363_SC-70-6 | U19, U23, U27, U31, U35, U39, U43, U47 +8 |
| 16 | 74LVC1G07 | SOT-353_SC-70-5 | U20, U24, U28, U32, U36, U40, U44, U48 +8 |
| 16 | MCP65R46 | SOT-23-6 | U21, U25, U29, U33, U37, U41, U45, U49 +8 |
| 1 | MP3414A | TSOT-23-8_HandSoldering | U84 |
| 32 | 2N7002K | SOT-23 | Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8 +24 |
| 1 | TG-3541CE | Oscillator_SMD_SeikoEpson_TG3541CE-10Pin_3.2x2.5mm_HandSoldering | X1 |
| 6 | CONN_01X04 Conn_01x04 | PinHeader_1x04_P2.54mm_Vertical | J1, J3, J5, J7, J8, J9 |
| 2 | CONN_01X02_FEMALE Conn_01x02_Female | PinHeader_1x02_P1.27mm_Vertical | J2, J4 |
| 1 | CONN_02X20_ODD_EVEN Conn_02x20_Odd_Even | PinHeader_2x20_P2.54mm_Vertical | J6 |
Show 51 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CONN_01X05 Conn_01x05 | PinHeader_1x05_P2.54mm_Vertical | J12 |
| 1 | CONN_01X04_MALE Conn_01x04_Male | PinHeader_1x04_P2.54mm_Vertical | J13 |
| 1 | USB_B_Micro | USB_Micro-B_Amphenol_10103594-0001LF_Horizontal | J14 |
| 2 | Battery_Cell | BatteryHolder_Keystone_54_v2_1x18650 | BT1, BT2 |
| 2 | Polyfuse | Fuse_1206_3216Metric_Pad1.42x1.75mm_HandSolder | F1, F2 |
| 1 | SW_DIP_X01 SW_DIP_x01 | SW_DIP_SPSTx01_Slide_Copal_CHS-01B_W7.62mm_P1.27mm | SW1 |
| 1 | SW_Push | SW_SPST_TL3305A | SW2 |
| 2 | Thermistor_NTC | PinHeader_1x02_P1.27mm_Vertical | TH1, TH2 |
| 2 | LED_SMD_RED | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D1, D19 |
| 1 | LED_SMD_GREEN | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D2 |
| 3 | LED_SMD_YELLOW | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D3, D4, D5 |
| 4 | ESD9B5.0ST5G | D_SOD-923 | D6, D7, D8, D18 |
| 1 | NUP2105L | SOT-23 | D9 |
| 8 | NRVB120VLSFT1G | D_SOD-123FL_handsolder | D10, D11, D12, D13, D14, D15, D16, D17 |
| 2 | 4.7UH 4.7uH | L_Coilcraft_LPS4018 | L1, L2 |
| 1 | 2.2UH 2.2uH | L_Coilcraft_XAL5030 | L3 |
| 3 | 0.01UF 0.01uF | C_0603_1608Metric_Pad1.05x0.95mm_HandSolder | C1, C2, C13 |
| 32 | 4.7UF 4.7uF | C_0603_1608Metric_Pad1.05x0.95mm_HandSolder | C3, C15, C22, C25, C27, C30, C33, C40 +24 |
| 85 | 0.1UF 0.1uF | C_0603_1608Metric_Pad1.05x0.95mm_HandSolder | C4, C5, C6, C7, C8, C9, C10, C11 +77 |
| 22 | 1UF 1uF | C_0603_1608Metric_Pad1.05x0.95mm_HandSolder | C14, C34, C44, C45, C51, C59, C67, C75 +14 |
| 4 | DNP | C_0603_1608Metric_Pad1.05x0.95mm_HandSolder | C23, C28, C43, C182 |
| 6 | 47UF 47uF | C_1210_3225Metric_Pad1.42x2.65mm_HandSolder | C32, C41, C174, C180, C183, C185 |
| 4 | 22NF 22nF | C_0603_1608Metric_Pad1.05x0.95mm_HandSolder | C35, C37, C177, C178 |
| 1 | 4.7NF 4.7nF | C_0603_1608Metric_Pad1.05x0.95mm_HandSolder | C39 |
| 3 | DNP | C_1210_3225Metric_Pad1.42x2.65mm_HandSolder | C42, C181, C186 |
| 32 | DNP | C_0603_1608Metric | C46, C48, C54, C56, C62, C64, C70, C72 +24 |
| 53 | 0 | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R1, R29, R30, R31, R35, R36, R37, R38 +45 |
| 10 | 10M 10m | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R2, R3, R4, R7, R49, R53, R54, R55 +2 |
| 52 | 100K | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R5, R6, R8, R10, R12, R13, R14, R16 +44 |
| 1 | 224K | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R9 |
| 12 | 10K | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R11, R48, R62, R64, R66, R67, R74, R76 +4 |
| 1 | 8.85K | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R15 |
| 5 | 49.9 | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R19, R20, R21, R22, R23 |
| 6 | 330 | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R24, R25, R26, R27, R28, R329 |
| 2 | 150K | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R34, R43 |
| 2 | 60.4 | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R39, R40 |
| 2 | 26.7K | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R61, R73 |
| 53 | 1M | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R63, R71, R75, R83, R145, R147, R148, R153 +45 |
| 2 | 280K | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R69, R81 |
| 18 | DNP | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R70, R82, R150, R158, R166, R174, R182, R190 +10 |
| 18 | 3.09K | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R72, R84, R100, R102, R104, R106, R112, R114 +10 |
| 2 | 150 | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R85, R86 |
| 2 | 1K | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R91, R92 |
| 15 | 0.1 | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R93, R95, R96, R107, R108, R109, R110, R119 +7 |
| 1 | 0.039 | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R94 |
| 1 | 20K | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R99 |
| 11 | 140K | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R101, R103, R105, R123, R125, R127, R129, R135 +3 |
| 2 | 698K | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R111, R117 |
| 2 | 1.5M | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R113, R115 |
| 1 | 137K | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R322 |
| 4 | 1 | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R323, R324, R325, R326 |
EPS design files
The KiCad project lives in the rgw3d/1KCubeSat_Hardware repository on GitHub; these links point at the commit this page was built from.
EPS: common questions
What microcontroller does the EPS use?
The EPS is built around the STM32L496ZGTX, from the STM32 family.
How big is the EPS PCB?
The EPS measures 85 × 85 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the EPS?
629 components, from 71 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the EPS design files?
From the rgw3d/1KCubeSat_Hardware repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the EPS design in my own project?
Yes, under the terms of its GPL-3.0 license, which rgw3d chose for the repository.
Can I test firmware for the EPS without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
