CM4-Beagleboard PCB layout, top view — open source Raspberry Pi board by rosmo-robot

About the CM4-Beagleboard PCB

CM4-Beagleboard is an open source Raspberry Pi PCB design by rosmo-robot, published on GitHub. It is a 2-layer board measuring 83.8 × 20.3 mm, with 29 components from 21 distinct parts.

Its main chip is the ComputeModule4, from the Raspberry Pi family. Other key parts include the TPD4EUSB30, MagJack-A70-112-331N126, 74LVC1G07SE-7 and RT9742GGJ5. By type, the board carries 9 resistors, 7 connectors, 6 ICs, 2 test points, 2 diodes and 2 capacitors.

From the project

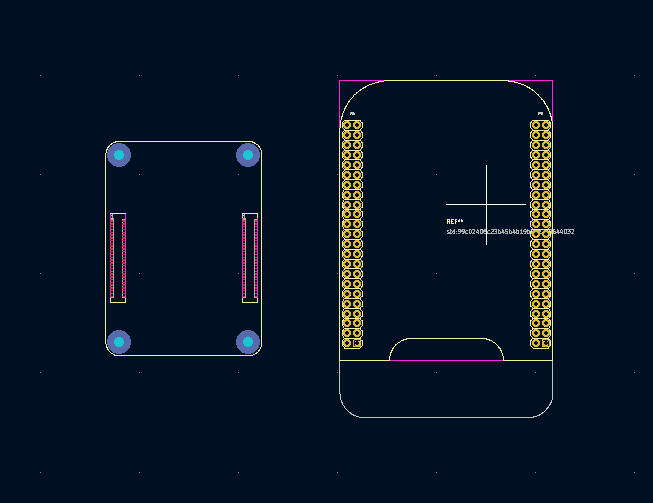

CM4 carrier in Beaglebone footprint

Use 3mm hirose header to give 1.5mm for components under the board

CM4-Beagleboard, from the project README
From the project README

Main components on the CM4-Beagleboard

TPD4EUSB30MagJack-A70-112-331N12674LVC1G07SE-7RT9742GGJ5

CM4-Beagleboard bill of materials (BOM)

29 components, 21 distinct parts.

QtyPartRefs
2
TPD4EUSB30
U1, U2
1
MagJack-A70-112-331N126
U3
2
74LVC1G07SE-7
U5, U9
1
RT9742GGJ5
U18
2
Conn_01x03
J1, J3
1
Conn_02x07_Odd_Even
J2
1
Micro_SD_Card_Det
J7
1
THD-02-R
J9
2
BeagleBone_Black_Header
P8, P9
1
ComputeModule4
Module1
2
TestPoint
TP3, TP5
1
LED Red
D1
1
LED Green
D2
1
100n
C1
1
10u
C5
2
1k
R1, R10
2
470R
R2, R3
1
nf
R4
1
0R
R5
2
nf
R17, R18
Show 1 more
QtyPartRefs
1
12K 1%
R29

CM4-Beagleboard design files

The KiCad project lives in the rosmo-robot/CM4-Beagleboard repository on GitHub; these links point at the commit this page was built from.

CM4-Beagleboard: common questions

What microcontroller does the CM4-Beagleboard use?

The CM4-Beagleboard is built around the ComputeModule4, from the Raspberry Pi family.

How big is the CM4-Beagleboard PCB?

The CM4-Beagleboard measures 83.8 × 20.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the CM4-Beagleboard?

29 components, from 21 distinct parts. The full bill of materials is listed on this page.

Where can I download the CM4-Beagleboard design files?

From the rosmo-robot/CM4-Beagleboard repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the CM4-Beagleboard design in my own project?

The repository has no license, so all rights stay with rosmo-robot. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the CM4-Beagleboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
